X2000L-4K On-Screen Display Menu Options

    From ViewSonic User Guide Database

    Input Source Selected - On-Screen Display (OSD) Menu Options

    Image Setting Menu

    Menu Option Description
    Color Mode The projector is preset with several predefined picture modes so that you can choose one to suit your operating environment and input signal.

    Brightest
    Maximizes the brightness of the projected image. This mode is suitable for environments where extra-high brightness is required, (i.e., well-lit rooms).

    TV
    Optimized for viewing sports in well-lit environments.

    Gaming
    Designed for playing video games.

    Movie
    Appropriate for colorful movies, video clips from digital cameras, or DVs through the PC input. Best for low-light environments.

    User
    Recalls the customized user settings.

    Wall Color Wall Color feature can help correct the projected picture’s colors to prevent possible color difference between the source and projected pictures if you are projecting onto a colored surface such as a painted wall which may not be white.
    Brightness The higher the value, the brighter the image. Lower values will result in a darker image.
    Projector Brightness.png
    Contrast Use this to set the peak white level after you have previously adjusted the Brightness setting to suit your selected input and viewing environment.
    Projector Contrast.png
    Color Temp Select the color temperature setting.
    • 6500K: Maintains normal white coloring.
    • 7500K: A higher, cooler color temperature than 6500K.
    • 9300K: The highest color temperature; makes the image appear the most bluish-white.
    • User Color: Adjust red, green, and blue values as desired.
    Tint The higher the value, the more greenish the picture becomes. The lower the value, the more reddish the picture becomes.
    Saturation Refers to the amount of that color in a video picture. Lower settings produce less saturated colors; in fact, a setting of “0” removes that color from the image entirely. If the saturation is too high, that color will be overpowering and unrealistic.
    Sharpness A high value results in a sharper picture; a low value softens the picture.
    Gamma Reflects the relationship between input source and picture brightness.
    Color Management Only in permanent installations with controlled lighting levels such as: boardrooms, lecture halls, or home theaters should Color Management be considered.
    RGB Wheel.png

    Color Management provides fine color control adjustment to allow for more accurate color reproduction, should you require it.

    If you have purchased a test disc, which contains various color test patterns and can be used to test the color presentation on monitors, TVs, projectors, etc., you can project any image from the disc on the screen and enter the Color Management menu to make adjustments.

    Light Source Level Select the suitable power consumption of the LED.
    Test Pattern Test the color presentation of the projector.
    Reset Current Color Settings Return current color settings to their default values.

    Advanced Settings Menu

    Menu Option Description
    Aspect Ratio The Aspect Ratio is the ratio of the image width to the image height. With the advent of digital signal processing, digital display devices, like this projector, can dynamically stretch and scale the image output to a different aspect than that of the image input signal.
    NOTE: Only supports HDMI/USB-C (video) signal input.

    Auto
    Scales an image proportionally to fit the projector’s native resolution in its horizontal width. This is suitable for the incoming image which is neither 4:3 nor 16:9 and you want to make the most use of the screen without altering the image’s aspect ratio.

    4:3
    Scales an image so that it is displayed in the center of the screen with a 4:3 aspect ratio. This is most suitable for 4:3 images like computer monitors, standard definition TV, and 4:3 aspect DVD movies, as it displays them without aspect alteration.

    16:9
    Scales an image so that it is displayed in the center of the screen with a 16:9 aspect ratio. This is most suitable for images which are already in a 16:9 aspect, like high definition TV.

    16:10
    Scales an image so that it is displayed in the center of the screen with a 16:10 aspect ratio. This is most suitable for images which are already in a 16:10 aspect.

    Native
    Projects the image as its original resolution and resizes it to fit within the display area. For input signals with lower resolutions, the projected image will be displayed in its original size.

    HDR The projector supports HDR imaging. It can automatically detect the dynamic range of the source from the HDMI 1 & HDMI 2" ports, and optimize settings to reproduce contents under a wide range of light conditions.
    EOTF Automatically adjusts the brightness levels of your image according to the input source. You can also manually select a brightness level to display better picture quality.
    NOTE: This function is not available when SDR is selected in the HDR menu.
    Frame Interpolation Smooths the picture quality of high speed moving objects. This is especially for users who enjoy fast paced sporting events.
    HDMI Range Range

    Select a suitable color range according to the color range setting of the connected output device.

    • Full: Sets the color range from 0~255.
    • Limited: Sets the color range from 15~235.
    • Auto: Sets the projector to detect the range of the input signal automatically.
    HDMI Version Select the preferred HDMI version.
    3D Settings Enables you to enjoy 3D movies, videos, and sporting events in a more realistic way by presenting the depth of the images while wearing 3D glasses.

    3D Sync
    Adjust and choose from: Auto or Off.

    3D Sync Invert
    Allows for correction if the 3D image depth is inversed.

    harmon/kardon Adjust the audio settings.
    Keystone

    4 Corner
    Enable/Disable 4 Corner Adjustment.

    4 Corner Adjustment
    Adjust each corner individually for maximum projection flexibility.

    Warping Configure the geometric distortion of the projector’s images when the images are projected onto screens which have a kind of uneven surface such as a cylinder, a spherical shape, etc.
    NOTE: 4 Corner Adjustment will be disabled if Warping is enabled.
    Information Shows Input Source, Resolution, 3D format, and HDR.

    Home Screen - On-Screen Display (OSD) Menu Options

    File Management

    Provides a user interface to manage files and folders.

    X1000 File Management.png

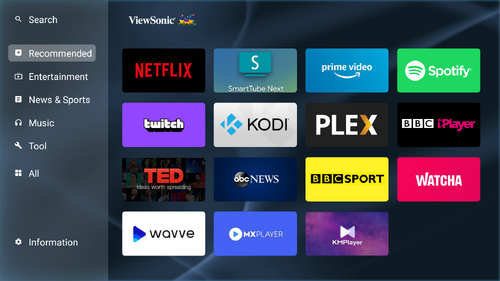

    Apps Center

    Access and view all the applications you have installed.

    X2000-4K App Center.png

    Bluetooth

    Select the appropriate Bluetooth mode.

    X1000 Bluetooth.png

    Setting

    Manage various categories such as: Network settings, Basic and Advanced settings, Date & Time, Firmware update, and system Information.

    X1000 Settings.png

    Basic Settings

    Menu Option Description
    Language Select your desired language.
    Projector Position Select the preferred projection position.
    Keystone 4 Corner

    Enable/Disable 4 Corner Adjustment.

    4 Corner Adjustment
    Adjust each corner individually for maximum projection flexibility.

    Warping Image adjustment for curved surfaces.
    Focus Adjust the focus of the screen image. Use the Directional buttons on the remote control to adjust the focus.
    Eye Protection To protect eyes from the direct light of the projector, when an object gets close to the lens, a sensor will detect it and automatically turn off the light.
    NOTE: When the Eye Protection feature is activated, press any button on the remote control to cancel it.
    Test Pattern Test the color presentation of the projector and/or adjust the focus of the projected image.

    Date & Time

    Menu Option Description
    Automatic Date & Time Users can synchronize the date and time automatically after connecting to the Internet.

    Enable
    Turn on synchronization.

    Disable
    Turn off synchronization.

    Time Zone Select your desired location.
    Time Format Select a different display time format.

    12 Hours
    12-hour clock.

    24 Hours
    24-hour clock.

    Advanced Settings

    Menu Option Description
    Power On Source Allows the user to enter the desired source directly after turning on the projector.
    Auto Power On CEC

    This projector supports CEC (Consumer Electronics Control) function for synchronized power on/off operation via HDMI connection. That is, if a device that also supports CEC function is connected to the HDMI input of the projector, when the projector’s power is turned off, the power of the connected device will also be turned off automatically. When the power of the connected deice is turned on, the projector’s power will be turned on automatically.

    NOTE: Ensure both the projector's and the connected device's CEC function are turned on.
    Smart Energy Auto Power Off

    The projector can turn off automatically after a set period of time once no input source is detected.

    Sleep Timer
    Turn off automatically after a set period of time.

    Power Saving
    Lower power consumption if no input source is detected after five (5) minutes.

    harmon/kardon Audio Mode
    • Movie: Default audio mode.
    • Music: Tuned for music playback.
    • User: Allows the user to customize the audio equalizer.
      NOTE: In Custom mode, 100Hz, 500Hz, 1500Hz, 5000Hz, and 10000Hz can be selected.

    Audio Volume
    Adjust the volume from 0 to 50.

    Mute
    Mute or unmute the volume.

    Audio Out
    Switch between audio sources.

    • Internal: Play sound from the projector.
    • Headphone: Connect the projector with your headphone via 3.5 mm jack.
    • HDMI ARC: Connect a speaker or amplifier to the HDMI 2 ARC port of the projector.
    • Coaxial: Connect an external speaker via a coaxial cable.

    Digital Output Format
    Switch to a different audio file format.

    NOTE:
    • Only available for HDMI ARC.
    • If you use Bluetooth Out function, the projector will automatically connect to the output audio device.
    • If you want you play music from an output device to the internal projector speaker, please forget your Bluetooth speaker first.
    High Altitude Mode It is recommended that you use High Altitude Mode when your environment is between 1,500-3,000 m above sea level, and a temperature between 5°C-25°C.
    X10 High Altitude.png
    NOTE: If you use this projector under other extreme conditions excluding the above, it may display auto shut-down symptoms, which is designed to protect your projector from over-heating. In cases like this, you should switch to High Altitude Mode to solve these symptoms. However, this is not to state that this projector can operate under any and all harsh or extreme conditions.
    Reset Settings Reset the Settings to default.
    NOTE: Language, High Altitude Mode, Projector Position, Network Settings, All installed Apps in the Apps Center, Add App, Bluetooth, 4 Corner Adjustment, Warping, and Light Source Hours will remain unchanged.
    Reset to Factory Default Factory reset.
    NOTE: Light Source Hours will remain unchanged.

    Screen Mirroring

    Mirror your personal device’s screen through the projector.

    Wireless Screen Mirroring Update.png

    Add App

    Select your favorite Apps and add them to the Home Screen.

    X1000 Add App.png
