X2000L-4K Introduction
Features
- Ultra short throw lens for excellent home projection. Project a 100” screen from 0.234 meters (Back I/O side to wall).
- 32 GB internal storage (Max. 26 GB available for user storage).
- Various Color modes for different projection purposes.
- Multi-language On-Screen Display (OSD) menus.
Package Contents
X2000L-4K Projector
Remote Control
Quick Start Guide
Power Cord
Batteries
Distance Card
NOTE: The power cord and remote control included in your package may vary depending on your country. Please contact your local reseller for more information.
Projector Overview

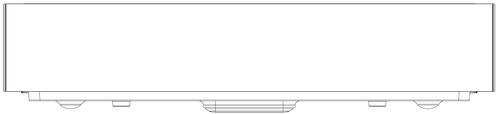

Front
Rear

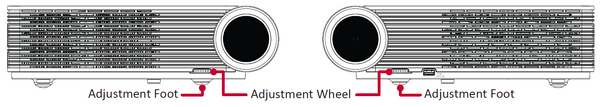

Sides

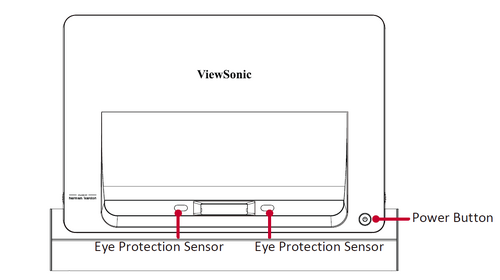

Top

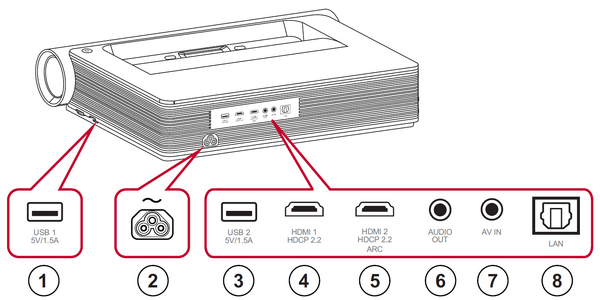

I/O Ports
| Number | Port | Description |
|---|---|---|
| 1 | USB (5V/1.5A Out) | USB 2.0 Type A port (USB Reader - FAT32/NTFS)[1] |
| 2 | AC IN | AC IN socket |
| 3 | USB (5V/1.5A Out) | USB 2.0 Type A port (USB Reader - FAT32/NTFS)[1] |
| 4 | HDMI 1 [2] | HDMI Port [3] |
| 5 | HDMI 2[2] [4] | HDMI Port[3] |
| 6 | AUDIO OUT (3.5 mm jack) | Audio signal output socket |
| 7 | AV IN (3.5 mm jack) | Audio/Video signal input socket |
| 8 | LAN | RJ45 LAN port |
