VP2776 Initial Setup

    From ViewSonic User Guide Database

    Stand Installation

    1. Place the monitor on a flat, stable surface with the screen facing down.
    2. Align and slide the upper hooks of the monitor stand into the stand mounting slots.
    3. Lift the device into its upright position on a flat, stable surface.

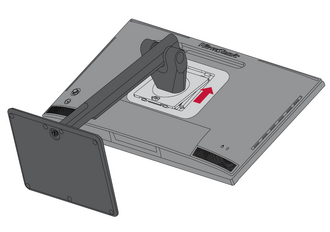

    • Align the points
    • Secure the Base and Neck
    • Lift into an upright position

    Always place the device on a flat, stable surface. Failure to do so may cause the device to fall and damage the device and/or result in personal injury.

    Wall Mounting

    Refer to the table below for the standard dimensions for wall mount kits.

    For use only with a UL certified wall mount kit/bracket. To obtain a wall-mounting kit or height adjustment base, contact ViewSonic® or your local dealer.
    Maximum Loading Hole Pattern (W x H) Interface Pad (W x H x D) Pad Hole Screw Specification & Quantity
    14 kg 100 x 100 mm 115 x 115 x 2.6 mm Ø 5 mm M4 x 10 mm - 4 pieces
    1. Turn off the device and disconnect all cables.
    2. Place the device on a flat, stable surface with the screen facing down.
    3. Pull down slightly to disengage the hooks and remove the stand.

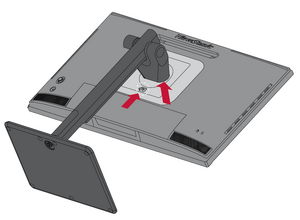

      • Disengage the hooks

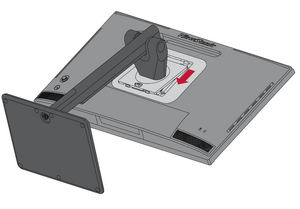

      • Remove the stand
    4. Attach the mounting bracket to the VESA mounting holes at the rear of the monitor. Then secure it with four (4) screws (M4 x 10 mm).
    5. Follow the instructions that come with the wall mounting kit to mount the monitor onto the wall.

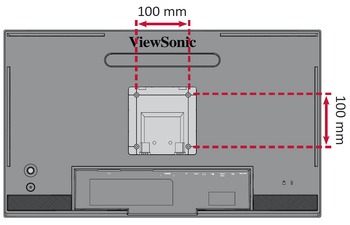

    VESA mounting points

    Using the Security Slot

    Installing the Shade Hood

    1. Place the monitor upright on a flat, stable surface. Make sure the monitor is rotated to the landscape mode.
    2. VP2776 Shade Hood 1.png

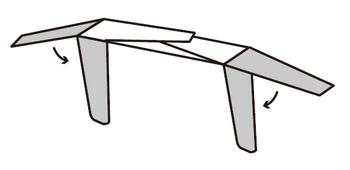

    3. Prepare the shade hood by folding the side panels down.
    4. VP2776 Shade Hood 2.png

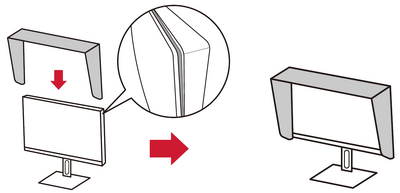

    5. Attach the shade hood to the top of the monitor by aligning the shape bar inside the hood with the one on top of the monitor. Repeat for the left and right sides.
    6. VP2776 Shade Hood 3.png
    7. Press down on the shade hood to fix it firmly in place.
