VP2776 Connecting Power and Devices

    From ViewSonic User Guide Database
    VP2776 Connecting Power and Devices
    Introduction
    Initial Setup
    Connecting Power and Devices
    Adjusting the Viewing Angle
    Quick Menu
    Hot Keys
    On-Screen Display Menu Operation
    On-Screen Display Menu Tree
    On-Screen Display Menu Options
    Advanced Features and Settings
    ColorPro™ Wheel for Color Calibration
    Specifications
    Regulatory and Service Information
    Safety Precautions
    Glossary
    Troubleshooting
    Maintenance

    Connecting to Power

    Connecting to Power

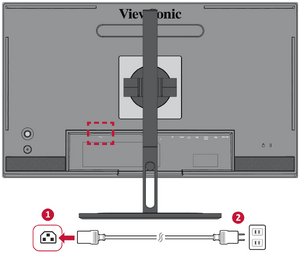

    1. Connect the power cord to the AC IN jack at the rear of the device.
    2. Connect the power cord plug to a power outlet.

    Connecting External Devices

    Note: To connect the monitor to an external device (PC, laptop…etc.), please use one of the included video cables for your application and connect it to both terminals.
    • HDMI Connection

      HDMI Connection

    • DisplayPort Connection

      DisplayPort Connection

    • USB Connection

      USB Connection

    • Audio Connection

      Audio Connection

    HDMI

    Connect one end of an HDMI cable to the HDMI port of your monitor. Then connect the other end of the cable to the HDMI port of your computer.

    NOTE: The monitor is equipped with two HDMI 2.0 ports.

    DisplayPort

    Connect one end of a DisplayPort cable to the DisplayPort port. Then connect the other end of the cable to the DisplayPort or mini DP port of your computer.

    NOTE: To connect the monitor to the Thunderbolt port (v. 1&2) on your Mac, connect the mini DP end of the “mini DP to DisplayPort cable” to the Thunderbolt output of your Mac. Then connect the other end of the cable to the DisplayPort port of the monitor.

    USB

    Connect one end of a USB cable to a USB port of the monitor. Then connect the other end of the cable to a USB port of your computer.

    USB Number Description
    Type A Two (2) Connection for your Type A peripheral device(s). (e.g., storage device).
    NOTE: To use some peripherals, please ensure your computer is also connected to the monitor’s USB Type B port.
    Type B One (1) Connect the USB Type B male cable (square with 2 cut corners) to this port, and then connect the other end of the cable to the USB downstream port of your computer.
    Type C Two (2) Make sure your Type C output device and cable support video signal transmission.
    NOTE: Only the Type-C port supports video transmission; the Type-C 5V/3A port only supports power delivery and data transmission.
    Micro USB One (1) For use with the ColorPro™ Wheel.

    Audio Connection

    Plug the audio jack of the ear-/headphones into the Audio Out port of the monitor. Additionally, you can connect the monitor to a sound bar using an audio cable.

    NOTE: The monitor is also equipped with dual speakers.

    Connecting the ColorPro™ Wheel

    Connect the USB Type A and Micro USB cable of the ColorPro™ Wheel to the USB Type A and Micro USB port of the monitor.
