    VP2776 On-Screen Display Menu Options
    Introduction
    Initial Setup
    Connecting Power and Devices
    Adjusting the Viewing Angle
    Quick Menu
    Hot Keys
    On-Screen Display Menu Operation
    On-Screen Display Menu Tree
    On-Screen Display Menu Options
    Advanced Features and Settings
    ColorPro™ Wheel for Color Calibration
    Specifications
    Regulatory and Service Information
    Safety Precautions
    Glossary
    Troubleshooting
    Maintenance

    Input

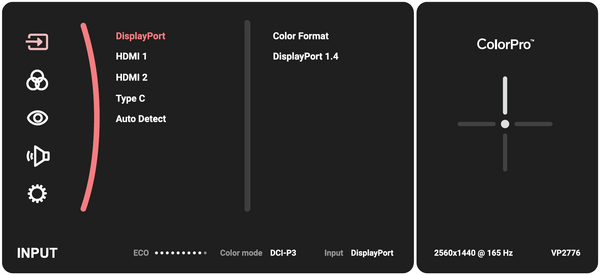

    VP2776 Main Menu.png
    1. Move the joy key ◄ to display the Startup Menu. Then navigate to Main Menu and press the ● key to display the OSD Menu.
    2. Move the joy key ▲ or ▼ to select Input. Then press the ● key to enter the Input menu.
    3. Move the joy key ▲ or ▼ to select the desired input source. Then press the ● key to confirm the selection.

    Color Mode

    Menu Option Description
    DCI-P3 Precise color gamut and gamma of DCI-P3 standard.
    sRGB Precise color gamut and gamma of sRGB standard.
    REC709 Precise color gamut and gamma of ITU-R Rec. 709 standard.
    DICOM-SIM Gamma curves are set to a DICOM simulation.
    User Custom, user-defined settings.
    CAL1/CAL2/CAL3 Display with the 1st/2nd/3rd user calibration mode.
    HDR Reduce the overall contrast of a given scene so that detail in the highlights and shadows can be seen.
    1. Move the joy key ◄ to display the Startup Menu. Then navigate to Main Menu and press the ● key to display the OSD Menu.
    2. Move the joy key ▲ or ▼ to select Color Mode. Then press the ● key to enter the Color Mode menu.
    3. Move the joy key ▲ or ▼ to select the desired option. Then press the ● key to enter its sub-menu.
    4. Move the joy key ▲ or ▼ to adjust/select the setting, and press the ● key to confirm the selection (if applicable).

    ViewMode

    Menu Option Description
    CAD/CAM Select this option for viewing graphic design files.
    Video Edit Select this option for video editing.
    Animation Select this option for animation.
    Photographer Select this option for viewing photo files.
    FPS 1 Ideal for First-Person Shooter games.
    FPS 2 Ideal for First-Person Shooter games.
    RTS Ideal for Real-Time Strategy games.
    MOBA Select this option for Multiplayer Online Battle Arena games.
    1. Move the joy key ◄ to display the Startup Menu. Then navigate to Main Menu and press the ● key to display the OSD Menu.
    2. Move the joy key ▲ or ▼ to select ViewMode. Then press the ● key to enter the ViewMode menu.
    3. Move the joy key ▲ or ▼ to select the desired option. Then press the ● key to enter its sub-menu.

    Audio Adjust

    Menu Option Description
    Volume Adjust the volume level.
    Mute Enable this option to temporarily turn off the sound.
    Audio Input Select the audio input source.
    1. Move the joy key ◄ to display the Startup Menu. Then navigate to Main Menu and press the ● key to display the OSD Menu.
    2. Move the joy key ▲ or ▼ to select Audio Adjust. Then press the ● key to enter the Audio Adjust menu.
    3. Move the joy key ▲ or ▼ to select the desired option. Then press the ● key to enter its sub-menu.
    4. Move the joy key ▲ or ▼ to adjust/select the setting, and press the ● key to confirm the selection (if applicable).

    Setup Menu

    Menu Option Description
    Language Select Select an available language for the OSD Menu.
    Adaptive Sync Eliminates stuttering and tearing during gameplay.
    Resolution Notice Enable this option to allow the system to inform users that the current viewing resolution is not the correct native resolution.
    PureXP™ Short for “Pure Experience”, this feature can enhance the visual quality of moving objects, making them less vague with a clearer view.
    Information Display the monitor information.
    OSD Timeout Set the length of time the OSD Menu remains on screen.
    OSD Background Show/Hide the OSD background when the OSD Menu appears on the screen.
    OSD Pivot Set the OSD Menu orientation.
    • Auto: With the built-in G sensor, the OSD Menu can automatically pivot when the monitor is positioned vertically.
    • 0°: Sets the OSD Menu without a pivot.
    • +90°: Sets the OSD Menu with a +90° pivot.
    • 90°: Sets the OSD Menu with a -90° pivot.
    • 180°: Sets the OSD Menu with a 180° pivot.
    Power Indicator Set the Power Indicator On or Off. If the setting is set to On, the power indicator lights blue when the device is turned on.
    Auto Power Off Enable this option to allow the monitor to automatically turn off after a certain amount of time.
    Sleep Set the amount of idle time before the monitor enters Sleep mode.
    Multi-Picture Off

    Disable this function.

    PBP Left-Right
    Display two windows, a 1x1 split screen, side-by-side on the left and right of the screen. User can specify the input source for each screen.

    PIP
    Split the screen into two parts, a main window and an inset window. User can specify the input source for each screen.

    Dual Color
    Display two different color settings in PIP or PBP mode.

    ECO Mode Choose between various modes, based on power consumption.
    Overscan Enable this option to automatically enlarge the original picture horizontally and vertically to an equal aspect ratio that fills the screen.
    Response Time Adjust the response time, creating smooth images without streaking, blurring or ghosting. A low response time is perfect for the most graphic-intense gaming, and provides amazing visual quality while watching sports or action movies.
    USB Charging Enable/disable usb charging.
    Backstage Lighting Adjust the LED lighting.
    Burn-in Eraser Reduce image burn-in.
    DDC/CI Enable this option to allow the monitor control via the graphics card.
    Rename Rename the personalized custom profile.
    All Recall Resets all settings to their default values.
    1. Move the joy key ◄ to display the Startup Menu. Then navigate to Main Menu and press the ● key to display the OSD Menu.
    2. Move the joy key ▲ or ▼ to select Setup Menu. Then press the ● key to enter the Setup Menu menu.
    3. Move the joy key ▲ or ▼ to select the desired option. Then press the ● key to enter its sub-menu.
    4. Move the joy key ▲ or ▼ to adjust/select the setting, and press the ● key to confirm the selection (if applicable).
