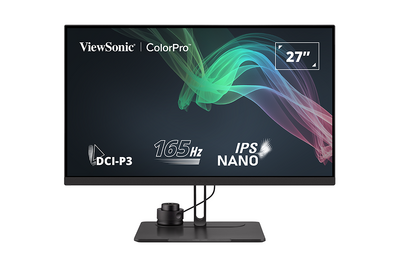

VP2776 Specifications

Technical Specifications

Model No.	P/N
VS18610	VP2776

Item	Category	Specifications
LCD	Type	IPS type, TFT Active Matrix 2560 x 1440 LCD, 0.2331 mm x 0.2331 mm pixel pitch
	Display Size	68.47 cm, 27"
	Color Filter	RGB vertical stripe
	Glass Surface	Anti-Glare type, Hard Coating (3H)
Input Signal	Video Sync	TMDS digital (100 Ω) HDMI: fh:15-204 kHz, fv:24-120 Hz DisplayPort: fh:15-204 kHz, fv:24-120 Hz
Compatibility	PC	up to 2560 x 1440
	Macintosh	up to 2560 x 1440
	Recommended	2560 x 1440 @ 165Hz
Resolution^[1]	Supported	2560 x 1440 @ 60, 165Hz 2048 x 1152 @ 60Hz 1920 x 1440 @ 60Hz 1920 x 1200 @ 60Hz 1920 x 1080 @ 50, 60Hz 1680 x 1050 @ 60Hz 1600 x 1200 @ 60Hz 1600 x 900 @ 60Hz 1440 x 900 @ 60, 75Hz 1400 x 1050 @ 60, 75Hz 1366 x 768 @ 60Hz 1360 x 768 @ 60Hz 1280 x 1024 @ 50, 60, 75Hz 1280 x 960 @ 50, 60, 75Hz 1280 x 800 @ 60Hz 1280 x 768 @ 50, 60Hz 1280 x 720 @ 50, 60Hz 1152 x 900 @ 67Hz 1152 x 864 @ 75Hz 1024 x 768 @ 50, 60, 70, 72, 75Hz 848 x 480 @ 60Hz 800 x 600 @ 56, 60, 72Hz 720 x 576 @ 50Hz 720 x 480 @ 60Hz 720 x 400 @ 70Hz 640 x 480 @ 50, 60, 67, 72Hz 640 x 400 @ 60, 70Hz 640 x 350 @ 70Hz
Power Adapter^[2]	Input Voltage	AC 100-240V, 50/60Hz (auto switch)
Display Area	Full Scan (H x V)	596.74 x 335.66 mm (23.49” x 13.21”)
Operating Conditons	Temperature	0° C to 40° C (32° F to 104° F)
	Humidity	20% to 90% (non-condensing)
	Altitude	16,404 feet (4.9 km)
Storage Conditions	Temperature	-20° C to 60° C (-4° F to 140° F)
	Humidity	5% to 90% (non-condensing)
	Altitude	40, 000 feet (12.1 km)
Dimensions	Physical (W x H x D)	613.70 x 569.36~449.36 x 234 mm (24.16” x 22.42~17.69” x 9.21”)
Wall Mount	Dimensions	100 x 100 mm
Weight	Physical	9.55 kg (21.05 lbs)
Power Saving Modes	On^[3]	32W (Typical)
Power Saving Modes	Off	< 0.3W (Max)

↑ Do not set the graphics card in your computer to exceed these timing modes; doing so may result in permanent damage to the display.
↑ Please use the power adapter from ViewSonic® or an authorized source only.
↑ The test condition follows EEI standards.

[1] Do not set the graphics card in your computer to exceed these timing modes; doing so may result in permanent damage to the display.

[2] Please use the power adapter from ViewSonic® or an authorized source only.

[3] The test condition follows EEI standards.
