    VB-STND-008 Initial Setup
    Introduction
    Initial Setup
    Making Connections
    Controlling the Lift
    Appendix
    Regulatory and Service Information
    Safety Precautions
    Troubleshooting

    Assembling the Product

    Step 1 - Connect the Trolley Body and Base

    1. Prepare the following items:
    Vb-STND-007 Initial Setup 1.PNGVb-STND-007 Initial Setup 2.PNG

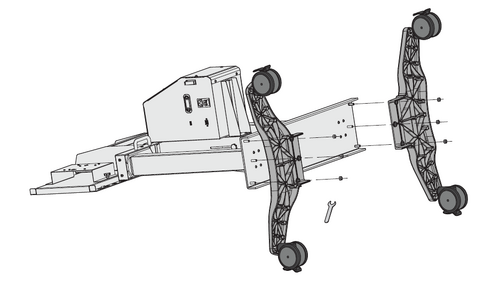

    1. Align the three holes on the Trolley Base (M) to the bolts underneath the Trolley Body. Using the wrench (H), secure the Trolley Base to the Trolley Body with the nuts (B).
    Vb-STND-007 Initial Setup 3.PNG

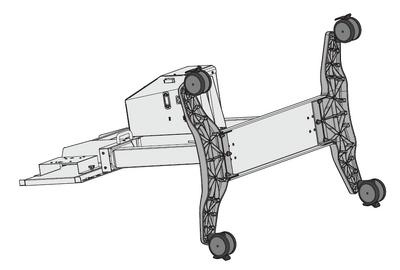

    1. Ensure all nuts are tightened properly on the assembled Trolley Cart.
    Vb-STND-007 Initial Setup 4.PNGVb-STND-007 Initial Setup 5.PNG

    Step 2 - Attach the Mounting Brackets to the IFP

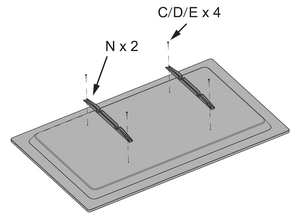

    Attach the Mounting Brackets (N) to the IFP. Depending on the size of the IFP, use either M5 (C), M6 (D), or M8 (E) bolts. Refer to the IFP user guide to find the right bolt size.

    Vb-STND-007 Initial Setup 6.PNG

    Step 3 - Attach the Keyboard Tray

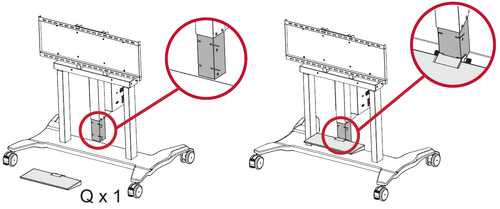

    Attach the Keyboard Tray (Q) to the middle support.

    Vb-STND-007 Initial Setup 7.PNG

    Step 4 - Secure the IFP to the Trolley Cart

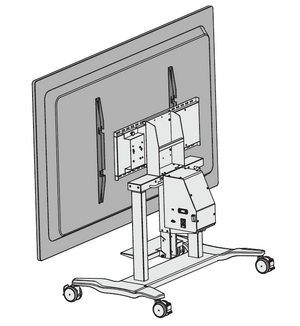

    1. Lift the IFP up and hook the Mounting Brackets onto the Trolley Cart.
    Note: It is recommended to perform this step with two or more people to avoid personal injury and/or damage to the IFP and Trolley Cart.
    Vb-STND-007 Initial Setup 8.PNG

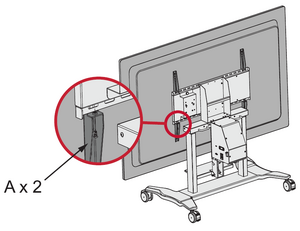

    1. Secure the Mounting Brackets to the Trolley Cart with two M6 x 14mm bolts (A).
    Vb-STND-007 Initial Setup 9.PNG

    Step 5 - Removing the Protective Cover and Installing a Chrome Box

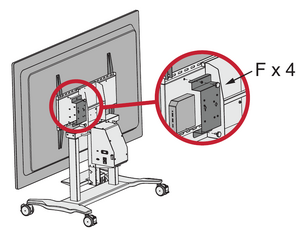

    1. Unscrew the M4 x 8mm bolts (F) and remove the Protective Cover from the Trolley Cart. Attach the Chrome Box onto the Trolley Cart.
    Note: This product does not include an Chrome Box.
    Protective Cover
    Vb-STND-007 Initial Setup 11.PNG
    1. Reattach the Protective Cover onto the Trolley Cart with the M4 x 8mm bolts, covering the Chrome Box.
    Vb-STND-007 Initial Setup 12.PNG

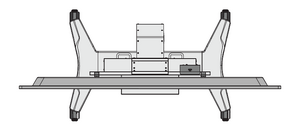

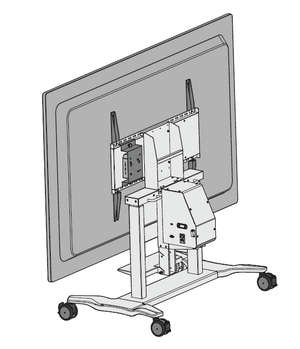

    1. Ensure all parts are accurately and securely held together, as shown in the diagrams below.
    Vb-STND-007 Initial Setup 13.PNG
    Vb-STND-007 Initial Setup 14.PNG

    Step 6 - Move and Park the Trolley Cart

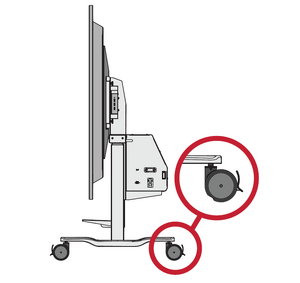

    After moving the Trolley Cart to desired location, push down on the wheel brakes to lock the Trolley Cart in place.

    Vb-STND-007 Initial Setup 15.PNG

    Step 7 - Install the Caster Covers

    Install the Caster Covers (I) to further secure the Trolley Cart in place.

    Note: It is recommended to install the Caster Covers to avoid personal injury and/or damage to the IFP and Trolley Cart.
    1. Ensure the wheels are aligned with the Trolley Cart.
    Vb-STND-007 Initial Setup 16.PNG

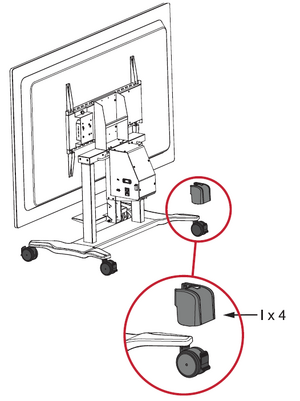

    1. Slide the Caster Covers over the wheels.
    Note: The Caster Covers automatically locks the wheel brakes.
    Vb-STND-007 Initial Setup 17.PNG

    Storing the Caster Covers

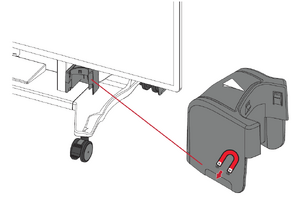

    The Caster Covers are magnetic. Refer to the diagram below for the position of the magnet.

    Vb-STND-007 Initial Setup 18.PNG

    When moving the Trolley Cart, attach the Caster Covers to the left and right supports.

    Vb-STND-007 Initial Setup 19.PNG
