TD2265 Quick Menu

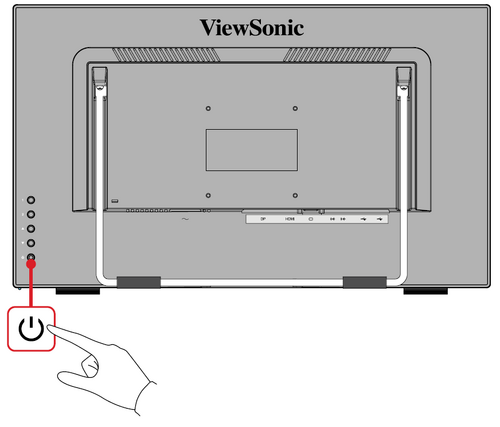

Turning the Device On/Off

1. Plug the power cord into a power outlet.
2. Press the Power key to turn on the monitor.
3. To turn the monitor off, press the Power key again.

NOTE: The monitor will still consume some power as long as the power cord is connected to the power outlet. If the monitor is not being used for a long period of time, please disconnect the power plug from the power outlet.

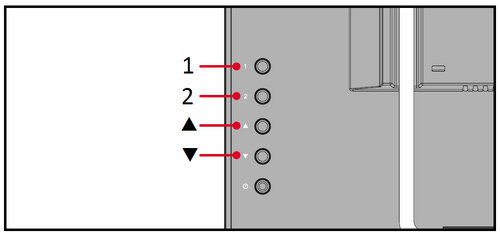

Using the Control Panel Keys

Use the control panel keys to activate Hot Keys, navigate the On-Screen Display (OSD) Menu, and change the settings.

On-Screen Display (OSD) Menu

Press the 1 key to activate the On-Screen Display (OSD) Menu. Follow the key guide that appears on the screen to select options or make adjustments.

NOTE: Follow the key guide that appears on the bottom of the screen to select the option, then make adjustments with the [▼] and [▲] keys.

Icon	Name	Description
	Auto Image Adjust	Automatically adjust the screen position.
	Contrast/Brightness	Adjust the contrast or brightness level.
	Input Select	Select the input source.
	Audio Adjust	Adjust the level, or mute the volume.
	Color Adjust	Select one of the preset color settings.
	Information	Displays the timing mode coming from the graphics card in the computer, the LCD model number, the serial number, and the ViewSonic® website URL.
	Manual Image Adjust	Manually set a variety of image quality adjustments.
	Setup Menu	Adjust On-Screen Display (OSD) settings.
	Memory Recall	Returns the adjustments back to factory settings.
