TD2265 Connecting Power and Devices

Connecting to Power

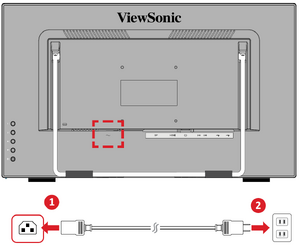

Connect the power cord to the AC IN jack at the rear of the device. Plug the power cord plug into a power outlet.
	Connecting to Power

Connecting External Devices

Note: To connect the monitor to an external device (PC, laptop…etc.), please use one of the included video cables for your application and connect it to both terminals.

•

  DisplayPort Connection

•

  HDMI Connection

•

  VGA Connection

•

  USB Connection

•

  Audio Connection

DisplayPort

Connect one end of a DisplayPort cable to the DisplayPort port. Then connect the other end of the cable to the DisplayPort or mini DP port of your computer.

NOTE: To connect the monitor to the Thunderbolt port (v. 1&2) on your Mac, connect the mini DP end of the “mini DP to DisplayPort cable” to the Thunderbolt output of your Mac. Then connect the other end of the cable to the DisplayPort port of the monitor.

HDMI

Connect one end of an HDMI cable to the HDMI port of your monitor. Then connect the other end of the cable to the HDMI port of your computer.

NOTE: The monitor is equipped with one HDMI 1.4 port.

VGA

Connect one end of a VGA cable to the VGA port. Then connect the other end of the cable to the VGA port of your computer.

USB

Connect one end of a USB cable to a USB port of the monitor. Then connect the other end of the cable to a USB port of your computer.

USB	Number	Description
Type A	Two (2)	Connection for your Type A peripheral device(s) (e.g., storage or peripheral device).
Type B	One (1)	Connect the USB Type B male cable (square with 2 cut corners) to this port, and then connect the other end of the cable to the USB downstream port of your computer.

Audio

Plug an audio cable into the Audio In/Audio Out port of the monitor. Plug the other end into your computer (Audio In) or ear-/headphones (Audio Out).

NOTE: The monitor is also equipped with dual speakers (2W x 2).

Touch Function Control

NOTE: Before using the touch function, ensure the USB Type B to Type A cable is connected to your computer and the Windows operating system is running.

Your external device(s) can be connected in any of the following configurations:

DisplayPort Connection

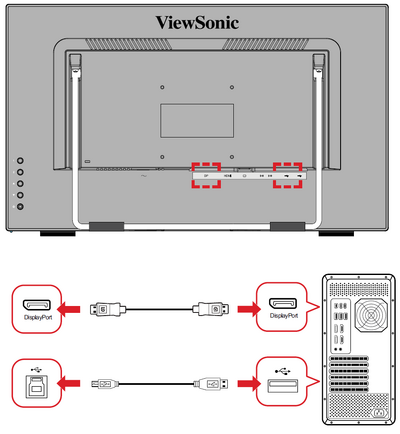

1. Connect a DisplayPort cable from your computer to the DisplayPort port on the monitor.
2. Connect the USB Type A to Type B cable from your computer to the monitor to enable touch controls.

HDMI Connection

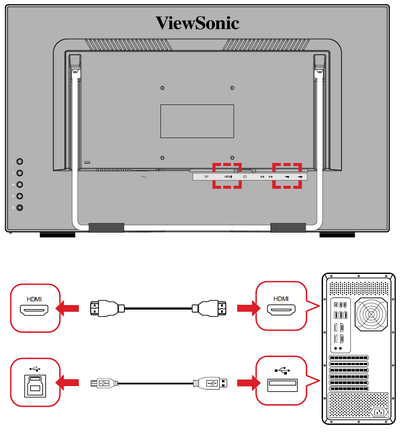

1. Connect an HDMI cable from your computer to the HDMI port on the monitor.
2. Connect the USB Type A to Type B cable from your computer to the monitor to enable touch controls.

VGA Connection

1. Connect a VGA cable from your computer to the VGA port on the monitor.
2. Connect the USB Type A to Type B cable from your computer to the monitor to enable touch controls.

When using the touch function, please note:

• The touch function may need about five (5) seconds to resume if the USB cable is removed and plugged in again, or the computer resumes from Sleep Mode.
• The touchscreen can only detect up to ten (10) fingers simultaneously.
• If the Windows’ cursor does not accurately follow your finger when you touch the screen, do the following:

1. Open: Control Panel > Hardware and Sound >Tablet PC Settings
2. Select Calibration.
3. Follow the instructions to recalibrate your screen.

If Windows cannot identify the touch screen when you touch the screen, do the following:

1. Open: Control Panel > Hardware and Sound > Tablet PC Settings.
2. Select Setup > Touch Input.
3. Follow the instructions to identify the touch screen.
