PS502W Initial Setup

Choosing a Location - Projector Orientation

Personal preference and room layout will decide the installation location. Consider the following:

• Size and position of your screen.
• Location of a suitable power outlet.
• Location and distance between the projector and other equipment.

The projector is designed to be installed in one of the following locations:

•

  Front Table

•

  Front Ceiling

•

  Rear Table

•

  Rear Ceiling

Location	Description
Front Table	The projector is placed near the floor in front of the screen.
Front Ceiling	The projector is suspended upside-down from the ceiling in front of the screen.
Rear Table	The projector is placed near the floor behind the screen.
Rear Ceiling	The projector is suspended upside-down from the ceiling behind the screen.

Projection Dimensions

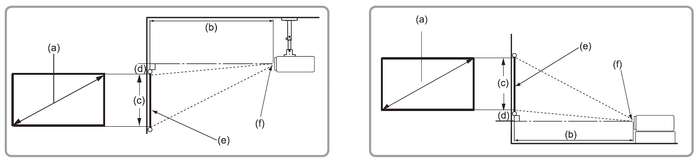

16:10 Image on a 16:10 Screen

NOTE: (e) = Screen | (f) = Center of Lens

(a) Screen Size		(b) Projection Distance				(c) Image Height		(d) Vertical Offset
		Minimum		Maximum
in.	mm	in.	mm	in.	mm	in.	mm	in.	mm
40	1016	17.67	449	17.67	449	21.20	538	2.63	67
60	1524	26.51	673	26.51	673	31.80	808	3.94	100
80	2032	35.34	898	35.34	898	42.40	1077	5.26	134
90	2286	39.76	1010	39.76	1010	47.70	1212	5.91	150
100	2540	44.18	1122	44.18	1122	53	1346	6.57	167
120	3048	53.02	1347	53.02	1347	63.60	1615	7.89	200
150	3810	66.27	1683	66.27	1683	79.50	2019	9.86	250
200	5080	88.36	2244	88.36	2244	106	2692	13.14	334
250	6350	110.45	2805	110.45	2805	132.50	3365	16.43	417
300	7620	132.30	3360	132.30	3360	159	4039	19.70	500

NOTE:

• These figures are for reference purposes only. Please refer to the actual projector for the precise dimensions.
• It is recommended that if you intend to permanently install the projector to physically test the projection size and distance using the actual projector before you permanently install it.

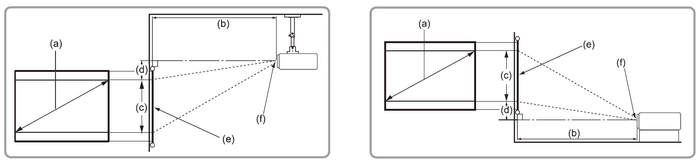

16:10 Image on a 4:3 Screen

(a) Screen Size		(b) Projection Distance				(c) Image Height		(d) Vertical Offset
		Minimum		Maximum
in.	mm	in.	mm	in.	mm	in.	mm	in.	mm
40	1016	16.67	423	16.67	423	20	508	2.48	63
60	1524	25.01	635	25.01	635	30	762	3.72	94
80	2032	33.34	847	33.34	847	40	1016	4.96	126
90	2286	37.51	953	37.51	953	45	1143	5.58	142
100	2540	41.68	1059	41.68	1059	50	1270	6.20	157
120	3048	50.02	1270	50.02	1270	60	1524	7.44	189
150	3810	62.52	1588	62.52	1588	75	1905	9.30	236
200	5080	83.36	2117	83.36	2117	100	2540	12.40	315
250	6350	104.20	2647	104.20	2647	125	3175	15.50	394
300	7620	125.04	3176	125.04	3176	150	3810	18.60	472

NOTE:

• These figures are for reference purposes only. Please refer to the actual projector for the precise dimensions.
• It is recommended that if you intend to permanently install the projector to physically test the projection size and distance using the actual projector before you permanently install it.

Mounting the Projector

NOTE: If you buy a third party mount, please use the correct screw size. Screw size can vary depending on the thickness of the mounting plate.

1. To ensure the most secure installation, please use a ViewSonic® wall or ceiling mount.
2. Ensure the screws used to attach the mount to the projector meet the following specifications:

• Screw type: M4 x 7
• Maximum Screw Length: 7 mm

CAUTION

• Avoid installing the projector near a heat source or air conditioner.
• Keep at least a 10 cm (3.9 in.) gap between the ceiling and the bottom of the projector.

Using the Security Bar

To help prevent the projector from being stolen, use a security slot locking device to secure the projector to a fixed object.
