PS502W Introduction

    From ViewSonic User Guide Database

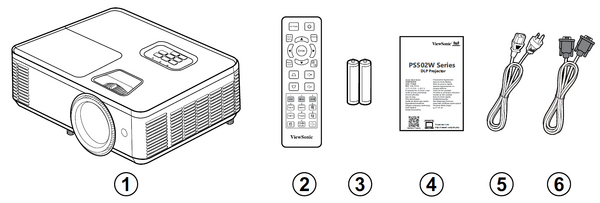

    Package Contents

    PS502W Package Contents.PNG
    Number Description
    1 Projector
    2 Remote Control
    3 Batteries
    4 Quick Start Guide
    5 Power Cord
    6 VGA Cable
    NOTE: The power cord and remote control included in your package may vary depending on your country. Please contact your local reseller for more information.

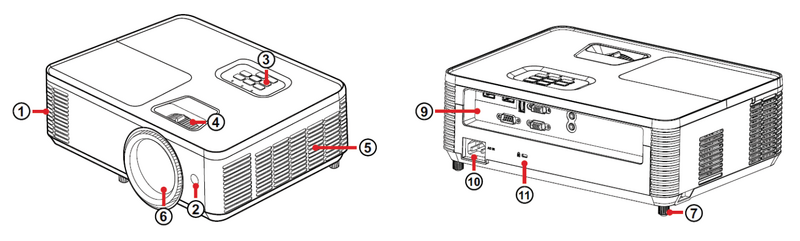

    Projector Overview

    PS502 Projector Overview.png
    Number Description
    1 Vent (outlet)
    2 IR Receiver
    3 Keypad
    4 Focus Ring
    5 Vent (inlet)
    6 Projection Lens
    7 Adjuster Foot
    8 Not Applicable
    9 I/O Ports
    10 AC IN
    11 Security Lock
    NOTE: Do not block projector intake and exhaust vents.

    I/O Ports

    PA700 IO Ports.png
    Number Port Description
    1 HDMI 1 HDMI port.
    2 HDMI 2 HDMI port.
    3 RS-232 RS-232 control port.
    4 USB (5V/1.5A Out)
    (Service)
    USB Type A port for power and service.
    5 COMPUTER RGB (PC) signal input socket.
    6 MONITOR OUT RGB (PC) signal output socket.
    7 AUDIO IN Audio signal input socket.
    8 AUDIO OUT Audio signal output socket.
    9 AC IN AC IN socket.

    Keypad

    LS710HD LS751HD Keypad.PNG
    Icon Button Description
    Power Power Toggles the projector between standby mode and Power On.
    Keystone Keystone Manually corrects distorted images resulting from an angled projection when the On-Screen Display (OSD) Menu is activated.
    Navigation Navigation Selects the desired menu items and makes adjustments when the On-Screen Display (OSD) Menu is activated.
    Menu/Exit Menu/Exit
    • Activate the On-Screen Display (OSD) Menu.
    • Go back to previous level in the OSD Menu.
    • Exit and save menu settings.
    Source Source Toggle to the next input source.
    Information Help Displays the Help menu.
    Enter Enter Confirm the selection when the On-Screen Display (OSD) Menu is activated.
    Auto Auto Automatically synchronize the projector to the input source.

    Indicator Lights

    Indicator Light Description
    Power Indicator Power indicator light
    Light Source Indicator Light Source indicator light
    Temperature Indicator Temperature indicator light
