PA700W Initial Setup

Choosing a Location - Projector Orientation

Personal preference and room layout will decide the installation location. Consider the following:

• Size and position of your screen.
• Location of a suitable power outlet.
• Location and distance between the projector and other equipment.

The projector is designed to be installed in one of the following locations:

•

  Front

•

  Front Ceiling

•

  Rear Table

•

  Rear Ceiling

Location	Description
Front	The projector is placed near the floor in front of the screen.
Front Ceiling	The projector is suspended upside-down from the ceiling in front of the screen.
Rear	The projector is placed near the floor behind the screen.
Rear Ceiling	The projector is suspended upside-down from the ceiling behind the screen.

Projection Dimensions

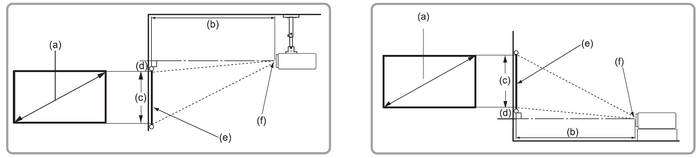

16:10 Image on a 16:10 Screen

NOTE: (e) = Screen | (f) = Center of Lens

(a) Screen Size		(b) Projection Distance				(c) Image Height		(d) Vertical Offset
		Minimum		Maximum
in.	mm	in.	mm	in.	mm	in.	mm	in.	mm
30	762	39.20	995	43.80	1111	15.90	404	1.90	48
60	1524	78.36	1990	87.51	2223	31.80	808	3.94	100
80	2032	104.47	2654	116.68	2964	42.40	1077	5.26	134
90	2286	117.53	2985	131.27	3334	47.70	1212	5.91	150
100	2540	130.59	3317	145.86	3705	53	1346	6.57	167
120	3048	156.71	3980	175.03	4446	63.60	1615	7.89	200
150	3810	195.89	4976	218.78	5557	79.50	2019	9.86	250
200	5080	261.18	6634	291.71	7409	106	2692	13.14	334
250	6350	326.48	8293	364.64	9262	132.50	3365	16.43	417
300	7620	391.77	9951	437.57	11114	159	4039	19.70	500

NOTE:

• These figures are for reference purposes only. Please refer to the actual projector for the precise dimensions.
• It is recommended that if you intend to permanently install the projector to physically test the projection size and distance using the actual projector before you permanently install it.

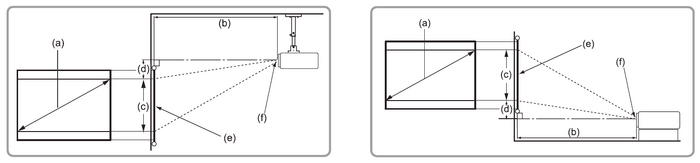

16:10 Image on a 4:3 Screen

NOTE: (e) = Screen | (f) = Center of Lens

(a) Screen Size		(b) Projection Distance				(c) Image Height		(d) Vertical Offset
		Minimum		Maximum
in.	mm	in.	mm	in.	mm	in.	mm	in.	mm
30	762	36.90	937	41.30	1049	15	381	1.80	46
60	1524	73.92	1878	82.56	2097	30	762	3.72	94
80	2032	98.56	2503	110.08	2796	40	1016	4.96	126
90	2286	110.88	2816	123.84	3146	45	1143	5.58	142
100	2540	123.20	3129	137.60	3495	50	1270	6.20	157
120	3048	147.84	3755	165.12	4194	60	1524	7.44	189
150	3810	184.80	4694	206.40	5243	75	1905	9.30	236
200	5080	246.40	6259	275.20	6990	100	2540	12.40	315
250	6350	308	7823	344	8738	125	3175	15.50	394
300	7620	369.60	9388	412.80	10485	150	3810	18.60	472

NOTE:

• These figures are for reference purposes only. Please refer to the actual projector for the precise dimensions.
• It is recommended that if you intend to permanently install the projector to physically test the projection size and distance using the actual projector before you permanently install it.

Mounting the Projector

NOTE: If you buy a third party mount, please use the correct screw size. Screw size can vary depending on the thickness of the mounting plate.

1. To ensure the most secure installation, please use a ViewSonic® wall or ceiling mount.
2. Ensure the screws used to attach the mount to the projector meet the following specifications:

• Screw type: M4 x 7
• Maximum Screw Length: 7 mm

CAUTION

• Avoid installing the projector near a heat source or air conditioner.
• Keep at least a 10 cm (3.9 in.) gap between the ceiling and the bottom of the projector.

Using the Security Bar

To help prevent the projector from being stolen, use a security slot locking device to secure the projector to a fixed object.
