    Home Screen

    The Home Screen is displayed every time you start the projector. To navigate the Home Screen, simply use the directional buttons on the remote control. You can return to the main Home Screen at any time by pressing the Home button on the remote control, regardless of what page you are on.

    M1 mini Plus Home Screen.png

    File Management

    Easily manage files and folders.

    • Step 1 - Select File Management

      Step 1 - Select File Management

    • Step 2 - Navigate the files

      Step 2 - Navigate the files

    1. Select: Home > File Management.
    2. Select a device on the source list. Use the direction buttons to select the desired file. Then press OK on the remote control to open the selected file.
    3. Press the Return button to go to a previous a level.
    NOTE: Press the Home button on the remote control to return to the Home Screen at anytime.

    How to Edit a File

    M1 mini Plus File Management Edit.png
    1. While in File Management, press and hold the OK button for three (3) seconds.
    2. A check box will appear at the front of each file. Use the directional buttons and press OK to select one or more files.
    3. By pressing the Right button, Copy, Paste, Cut, Delete, Select All, and Return boxes will be available for use.
    4. Select your desired action and press OK to execute.
    5. If you are Copying or Cutting, select your destination folder to complete the process.

    How to Use Control Bar Buttons

    The Control Bar buttons will appear on screen if a video, music, or photo file are selected to be opened.

    X10 Control Bar.png

    Tips for using USB
    When using USB for reading and/or storage please keep in mind the following:

    1. Some USB storage devices may not be compatible.
    2. If you use an USB extension cable, the USB device may not recognize the USB.
    3. Only use USB storage devices formatted with Windows FAT32 or NTFS file system.
    4. Larger files will need extra time to load.
    5. Data on USB storage devices may be damaged or lost. Back up important files.

    Supported File Formats

    • Supported Office formats:
    M1 mini Plus Office Formats.png
    • Supported Multimedia formats:
    M1 mini Plus Media Formats.png

    Apps Center

    View, launch, and uninstall Apps.

    • Step 1 - Select Apps Center

      Step 1 - Select Apps Center

    • Step 2 - Launch the App

      Step 2 - Launch the App

    1. To view your Apps, select: Home > Apps Center.
    2. Use the directional buttons to select the desired App. Then press OK on the remote control to launch the App.
    NOTE: Press the Home button on the remote control to return to the Home Screen at anytime.

    Aptoide

    The projector is pre-loaded with the Aptoide store, which allows users to download and install different Apps.

    • Step 1 - Select Aptoide

      Step 1 - Select Aptoide

    • Step 2 - Navigate the store

      Step 2 - Navigate the store

    1. Select: Home > Apps Center > Aptoide.
    2. Use the directional buttons to navigate the menu options. When you find your preferred App, press the OK button to install it.
    NOTE:
    • Users can install third-party Apps by .apk file in File Management. However, some third-party Apps may have compatibility issues.
    • Apps not pre-loaded by ViewSonic may not be compatible or work properly.
    • Some Apps may require a keyboard or mouse.
    • Some Apps may be Region-Specific.

    To Uninstall Apps

    1. Open the Apps Center by selecting: Home > Apps Center.
    2. Use the directional buttons to select the desired App.
    3. Press and hold OK on the remote control for three (3) seconds.
    4. Select OK to uninstall the App.
    NOTE: Press the Home button on the remote control to return to the Home Screen at anytime.

    How to Access Netflix

    Bluetooth

    The projector is equipped with Bluetooth that allows the user to connect their device wirelessly for audio playback. For more information, see Connecting to Bluetooth

    • Step 1 - Bluetooth

      Step 1 - Bluetooth

    • Step 2 - Select Speaker or Pairing

      Step 2 - Select Speaker or Pairing

    • Step 3 - Enter Bluetooth mode

      Step 3 - Enter Bluetooth mode

    Setting

    Under Setting you can adjust Network, Basic, and Advanced Settings, Date & Time, Firmware Update, and view Information.

    Network Settings

    • Step 1 - Select Network Settings

      Step 1 - Select Network Settings

    • Step 2 - Choose an option

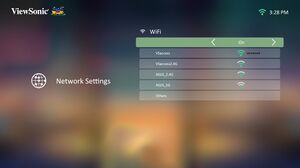

      Step 2 - Choose an option

    1. Select: Home > Setting > Network Settings.
    2. View and adjust your Wi-Fi and network settings.

    Basic Settings

    • Step 1 - Select Basic Settings

      Step 1 - Select Basic Settings

    • Step 2 - Choose an option

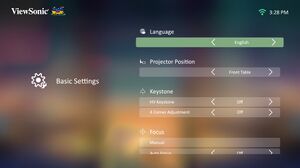

      Step 2 - Choose an option

    1. Select: Home > Setting > Basic Settings.
    2. Use the Up and Down buttons to select the desired option and press OK. Then use the Left and Right buttons to make adjustments or selections.
    3. To return to a previous menu press the Return button.

    Date & Time

    Adjust Date, Time, Time Zone, and Time Format.

    NOTE: The time is displayed in the top-right corner after connecting to the Internet.
    • Step 1 - Select Date & Time

      Step 1 - Select Date & Time

    • Step 2 - Choose an option

      Step 2 - Choose an option

    1. Select: Home > Setting > Date & Time.
    2. Use the Up and Down buttons to select the desired option and press OK. Then use the Left and Right buttons to make adjustments or selections.

    Firmware Upgrade

    Users can update the firmware by internet or USB, and check the version number.

    NOTE: Do not unplug the power cord, USB, or disconnect from the Internet during the upgrading process.
    • Step 1 - Select Firmware Upgrade

      Step 1 - Select Firmware Upgrade

    • Step 2 - Choose an option

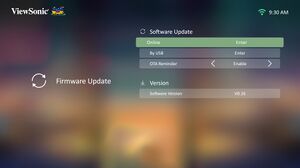

      Step 2 - Choose an option

    1. Before entering the Firmware Upgrade menu, ensure the projector is connected to the Internet.
    2. To enter the menu, select: Home > Setting > Firmware Upgrade.

    Firmware Update Online

    1. Go to: Home > Setting > Firmware Upgrade > Software Update Online.
    2. Select Enter by pressing OK on the remote control.
    3. The system will check the ViewSonic website (OTA) and display the below dialog message if there is new Firmware.
    4. After selecting Yes, a progress bar will appear as the update process begins.
    5. After reaching 100% the projector will restart. The whole process will take about 10 minutes.
    6. After updating the Firmware, it will take a few minutes to restart the projector.

    Firmware Update by USB

    1. Download the latest version from the ViewSonic website and copy the file to a USB device.
    2. Plug the USB into the projector, then go to: Home > Setting > Firmware Upgrade > Software Update By USB.
    3. Select Enter by pressing OK on the remote control.
    4. The system will detect the Firmware version and display a dialog message.
    5. After selecting Yes, a progress bar will appear as the update process begins.
    6. After reaching 100% the projector will restart. The whole process will take about 10 minutes.
    7. After updating the Firmware, it will take a few minutes to restart the projector.

    Advanced Settings

    • Step 1 - Select Advanced Settings

      Step 1 - Select Advanced Settings

    • Step 2 - Choose an option

      Step 2 - Choose an option

    1. Select: Home > Setting > Advanced Settings.
    2. Use the Up and Down buttons to select the desired option and press OK. Then use the Left and Right buttons to make adjustments or selections.
    3. To return to a previous menu press the Return button.

    Information

    NOTE: Press the Home button on the remote control to return to the Home Screen at anytime.
    • Step 1 - Select Information

      Step 1 - Select Information

    • Step 2 - View the information

      Step 2 - View the information

    1. Select: Home > Setting > Information.
    2. View system status and information.

    Screen Mirroring

    Please see Wireless Screen Mirroring

    Adding Apps

    Add your favorite Apps to the Home Screen.

    • Step 1 - Select Add App

      Step 1 - Select Add App

    • Step 2 - Navigate the Apps

      Step 2 - Navigate the Apps

    1. From the Home Screen, select Add App and then press OK on the remote control.
    2. Use the directional buttons to select the desired App and press OK.
    3. Now your favorite App will appear on the Home Screen.

    Delete Apps from the Home Screen

    1. From the Home Screen, select the App you want to delete and press and hold OK for three (3) seconds.
    2. The message, “Do you want to Delete this application from My Favorites?” will appear.
    3. Select Yes, and press OK to delete the App.
