M1 mini Plus Remote Control

From ViewSonic User Guide Database
Jump to navigation Jump to search

Overview

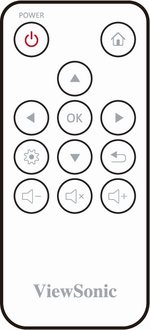

Remote Control
Button Icon Description
Power M1 mini Plus Icon Power.png Turns the projector On or Off
Home M1 mini Plus Icon Home.png Access the Home menu
Up/Down/Left/Right M1 mini Plus Icon Directional.png Navigates and selects the desired menu items and makes adjustments
OK M1 mini Plus Icon OK.png Confirms the selection
Settings M1 mini Plus Icon Settings.png Displays the Settings menu
Return M1 mini Plus Icon Return.png Returns to the previous screen
Volume Up M1 mini Plus Icon VolumeUp.png Increase the volume level
Mute M1 mini Plus Icon Mute.png Mute the volume
Volume Down M1 mini Plus Icon VolumeDown.png Decrease the volume level

Effective Range

IR Receiver Location

To ensure proper function of the remote control follow the steps below:

  1. The remote control must be held at an angle within 30° perpendicular to the projector’s IR remote control sensor(s).
  2. The distance between the remote control and the sensor(s) should not exceed 8 m (26 ft.)
NOTE: Refer to the illustration for the location of the infrared (IR) remote control sensor(s).

Replacing the Batteries

  1. Place the remote control facedown and remove the battery tray from the bottom of the remote control by pressing the side tab and pulling it out.
  2. Remove any existing battery (if necessary) and install one CR2032 battery.
  3. Replace the battery tray by aligning it with the base and pushing it back into position.
NOTE:
  • Avoid leaving the remote control and batteries in excessive heat or a humid environment.
  • Replace only with the same or equivalent type recommended by the battery manufacturer.
  • If the battery is drained or if you will not be using the remote control for an extended period of time, remove the battery to avoid damage to the remote control.
  • Dispose of used batteries according to the manufacturer’s instructions and local environment regulations for your region.
