M1 G2 Specifications

    From ViewSonic User Guide Database

    Technical Specifications

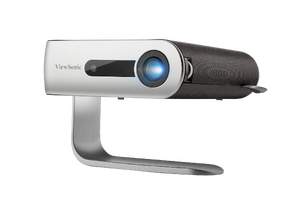

    M1 G2.png
    Model No. P/N
    VS18241 M1
    Item Category Specifications
    Projector Type 0.2” WVGA, LED
    Display Size 24”~100”
    Throw Distance 0.64-2.66 m (38” @ 1m)
    Lens F=1.7, f=5.5 mm
    Optical Zoom Fixed
    Lamp Type RGB LED
    Light Source Life

    (Normal)

    up to 30,000 hours
    Display Color 1.07 Billion Colors
    Keystone -/+ 40 (Vertical)
    Battery Capacity 12,000 mAh, 3.7Vx3
    Input Signal HDMI fh: 15K~102KHz, fv:23~120Hz
    Resolution Native 854 x 480
    Support VGA (640 x 480) to Full HD (1920 x 1080)
    Input HDMI 1 (HDMI 1.4, HDCP 1.4)
    USB Type-C 1 (Power input - 5V/2A)
    USB Type-A 1 (USB 2.0 Reader)
    Output
    Speaker 3W Cube x 2
    USB Type-A (Power) 1 (USB 2.0, 5V/1A; share with USB reader)
    Audio Out (3.5mm) 1
    Power Adapter[1] Input Voltage AC 100-240V, 50/60 Hz (auto switch)
    Operating Conditions Temperature 0°C to 40°C (32°F to 104°F)
    Humidity 0% to 90% (non-condensing)
    Dimensions Physical

    (W x H x D)

    151 x 126 x 40 mm

    (5.94” x 4.96” x 1.57”)

    Local Storage Total: 16 GB Available: 12 GB
    Weight Physical 0.7 kg (1.54 lbs)
    Power Consumption On 35W (Typical)
    Off < 0.5W (Standby)
    1. Please use the power adapter from ViewSonic® or an authorized source only.

    Timing Charts

    HDMI/USB C Video Timing

    Timing Resolution Horizontal Frequency (KHz) Vertical Frequency (Hz) Dot Clock Frequency (MHz)
    480i 720(1440) x 480 15.73 59.94 27
    480p 720 x 480 31.47 59.94 27
    576i 720(1440) x 576 15.63 50 27
    576p 720 x 576 31.25 50 27
    720/50p 1280 x 720 37.5 50 74.25
    720/60p 1280 x 720 45 60 74.25
    1080/50i 1920 x 1080 28.13 50 74.25
    1080/60i 1920 x 1080 33.75 60 74.25
    1080/24p 1920 x 1080 27 24 74.25
    1080/25p 1920 x 1080 28.13 25 74.25
    1080/30p 1920 x 1080 33.75 30 74.25
    1080/50p 1920 x 1080 56.25 50 148.5
    1080/60p 1920 x 1080 67.5 60 148.5

    HDMI/USB C Support PC Timing

    Resolution Refresh Rate (Hz) Horizontal Frequency (kHz) Dot Clock Frequency (MHz)
    640 x 480 59.94 31.469 25.175
    72.809 37.861 31.5
    75 37.5 31.5
    720 x 400 70.087 31.469 28.3221
    800 x 600 56.250 35.156 36
    60.317 37.879 40
    72.188 48.077 50
    75 46.875 49.5
    1024 x 768 60.004 48.363 65
    70.069 56.476 75
    75.029 60.023 78.75
    1152 x 864 75 67.5 108
    1280 x 768 59.87 47.776 79.5
    74.893 60.289 102.25
    1280 x 800 59.81 49.702 83.5
    74.934 62.795 106.5
    1280 x 960 60 60 108
    1280 x 1024 60.02 63.981 108
    75.025 79.976 135
    1360 x 768 60.015 47.712 85.5
    1400 x 1050 59.978 65.317 121.75
    1440 x 900 59.887 55.935 106.5
    60 55.469 88.75
    74.984 70.635 136.75
    1600 x 1200 60 75 162
    1680 x 1050 59.883 64.674 119
    59.954 65.29 146.25

    3D Support Timing

    HDMI 3D (BlueRay 3D with info frame)
    Signal Resolution (dots) Aspect Ratio Refresh Rate (Hz) Support
    Frame Packing
    1080p 1920 x 1080 16:9 23.98/24 Yes
    720p 1280 x 720 16:9 50/59.94/60 Yes
    Side by Side
    1080i 1920 x 1080 16:9 50/59.94/60 Yes
    Top and Bottom
    1080p 1920 x 1080 16:9 23.98/24 Yes
    720p 1280 x 720 16:9 50/59.94/60 Yes
    3D (HDMI) Manual Setting
    Signal Resolution (dots) Aspect Ratio Refresh Rate (Hz) Support
    SVGA 800 x 600 4:3 60*/120** Yes
    XGA 1024 x 768 4:3 60*/120** Yes
    HD 1280 x 720 16:9 60*/120** Yes
    WXGA 1280 x 800 16:9 60*/120** Yes
    HDTV(1080p) 1920 x 1080 16:9 60 Yes
    NOTE:
    • [ * ] 60Hz signals are supported for side by side, top and bottom, and frame sequential.
    • [ ** ] 120Hz signals are supported for frame sequential only.

    LED Indicators

    Light Description
    Green Power On
    Red Stand-by Mode
    Flashing White Projector Charging
    Solid White Battery is Fully Charged
