M1 G2 Remote Control

Overview

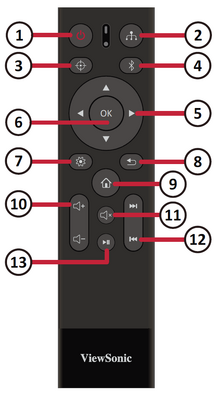

Remote Control

Number	Button	Description
1	Power	Turns the projector On or Off
2	Source	Displays the input source selection menu
3	Focus	Automatically focus the image
4	Bluetooth Mode	Enable Bluetooth
5	Up/Down/Left/Right	Navigate and select menu items; Keystone adjustment
6	OK	Confirms the selection
7	Setting	Displays the Setting menu
8	Return	Returns to the previous screen
9	Home	Access the Home screen
10	Volume Control	Increase or decrease the volume level
11	Mute	Mute the volume
12	Next/Previous	Move to next/previous
13	Play/Pause	Play or pause media

Effective Range

To ensure proper function of the remote control follow the steps below:

1. The remote control must be held at an angle within 30° perpendicular to the projector’s IR remote control sensor(s).
2. The distance between the remote control and the sensor(s) should not exceed 8 m (26 ft.).

Replacing the Batteries

1. To open the battery cover, turn the remote control over to view its back, open the cover in the direction of the arrow.
2. Remove any existing batteries (if necessary) and install two AAA batteries observing the battery polarities as indicated in the base of the battery compartment. Positive (+) goes to positive and negative (-) goes to negative.
3. Replace the battery tray by aligning it with the base and pushing it back into position.

NOTE:

• Avoid leaving the remote control and batteries in excessive heat or a humid environment.
• Replace only with the same or equivalent type recommended by the battery manufacturer.
• If the battery is drained or if you will not be using the remote control for an extended period of time, remove the battery to avoid damage to the remote control.
• Dispose of used batteries according to the manufacturer’s instructions and local environment regulations for your region.
