LDP135-151 Wall Installation

    From ViewSonic User Guide Database

    Before Installation

    1. Maintain an adequate air gap between the back of the display and any wall for proper ventilation.
    2. Ensure there is no direct airflow from air conditioning or heating vents blowing on the display.
    3. Avoid installing the display in places with high humidity.
    4. Due to high power usage, always use power cords specifically designed for this product.

    Wall Mounting

    Installing the Upper and Lower Mounting Brackets

      LDP135-151 Wall Mounting Bracket Update.png
    1. Ensure the wall area and size is an appropriate installation site.
    2. NOTE: The height of the Upper Wall Mount Brackets must not be less than 90 ³⁵/₆₄" (2300 mm) from the ground.
    3. Using the Wall Mount Bracket (pictured above) as a guide, mark each of the holes and pre-drill each.
    4. Install the first Upper Wall Mount Bracket with the provided screws (M6x50mm Expansion for masonry; TA6x30mm for load bearing wood).
    5. Repeat Step 2, ensuring the second Upper Wall Mount Bracket is level with the first upper bracket. Keep a 3 ¹¹/₃₂" (85 mm) space between the two brackets.

    6. LDP135-151 Wall Mounting After Upper Brackets.png

    7. Install the Lower Wall Mount Brackets in the same manner as the Upper Wall Mount Brackets. The distance between the Upper and Lower Wall Mount Brackets is 53 ⁵/₃₂" (1350 mm).

    8. LPD135-151 Wall Mounting Spacing Update.png

      Ensure the wall can safely support 297.62 lbs. (135 kg).

      Ensure the deviation of wall surface must be < ¹³/₆₄" (< 5 mm).
      NOTE: You can also install the Upper Wall Mount Brackets, hang the screen, and then install the Lower Wall Mount Brackets for a more precise fit.
    9. After installing both Upper and Lower Wall Mount Brackets, the installation wall should look like:

    10. LDP216-121 Brackets.png

    Installing the Cabinets

    1. Ensure the Mounting Brackets on the rear of the five (5) Cabinets are positioned at the top and bottom mounting positions as shown below:

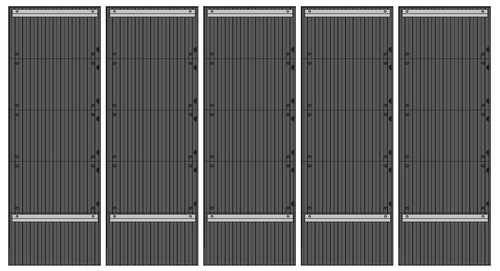

    2. LDP135-151 Rear Panels Separate Original.png

    3. Carefully lift each Cabinet up onto the Upper Wall Mount Brackets starting from the left.

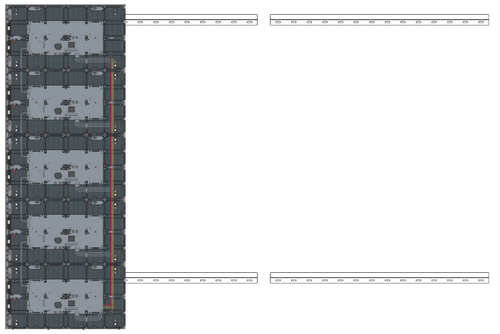

    4. LDP135-151 Wall Mounting After Screens.png

    5. Ensure the Mounting Brackets sit securely on the Wall Mount Brackets as shown below.

    6. LD Wall Mount Close Up.svg

    7. Push each Locking Bolt and lock each Hook with the hex tool to securely connect each cabinet together. It may be necessary to align the hole with the hex tool in order to engage the Locking Bolt.

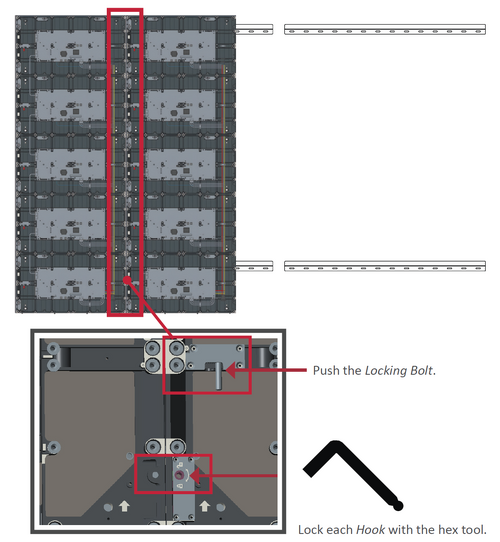

    8. LDP135-151 Wall Mounting Connecting Screens.png

      NOTE: There are five (5) Locking Bolts and 10 Hooks between each cabinet.
    9. Place the remaining Cabinets up onto the Upper Wall Mount Brackets. Install from left to right, ensuring the Mounting Brackets sit securely on the Wall Mount Brackets.
    10. Repeat Step 4, securing the Cabinets together with each Locking Bolt and Hook.

    11. LDP135-151 Wall Mounting All Screens.png
      NOTE: There are five (5) Locking Bolts and 10 Hooks between each cabinet.

    Connecting the System Control Box

    1. Carefully unfold the System Control Box panel. Ensure the main system control board is on the right.
    2. NOTE: Use caution as the System Control Box panel will be separated into two pieces, however the wires are connected.
    3. Align the holes of the Cabinet with the System Control Box to attach.

    4. LDP135-151 Wall Mounting Connecting Box Update.png

    5. You can also reroute the power cable at two positions for cable management. Loosen the two (2) PWM 4x6mm screws, pull the power cable out, thread the power cable through the hole and then fasten the screws tightly.

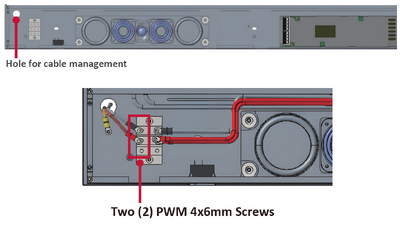

    6. LDP135-151 Control Box Cable mangement.png

    7. Further secure the System Control Box to the Cabinets with the 20 provided screws (M6x10mm).

    8. LD Box Install.png

    9. Connect the Network and Power cables of the Cabinets to the System Control Box.
    10. NOTE: There are five (5) Network and five (5) Power cables to connect.

      LDP135-151 Wall Mounting Connecting Net Pow.png

    Installing the LED Modules

    Install each LED Module onto the Cabinets, being sure to match the corresponding numbers on the Module to the Cabinet.

    Please wear Anti-Static Gloves before installing the LED modules.

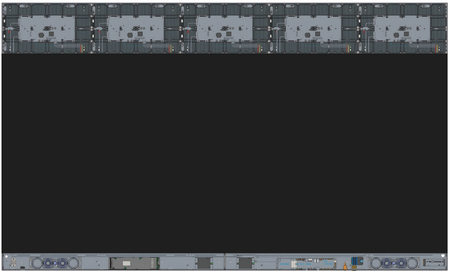

    LDP135-151 Wall Mounting Modules 1.png

    Ensure each Module is flush and that there is little to no gap between each. It may be necessary to gently tap the module to make it flush.

    LDP135-151 Wall Mounting Modules No Cover.png

    Installing System Control Box Covers

    There are three (3) System Control Box Covers: Left, Middle, and Right.

    LDP135-151 Control Box Covers.png
    1. Begin by installing the Right Cover onto the System Control Box.
    2. NOTE: Ensure the Power Button cable is connected to the System Control Box Power cable before securing the Cover.
    3. After connecting the Power Button cable, ensure the Right Cover is properly aligned with the System Control Box; then secure it with the 12 provided screws (KM3x6mm).

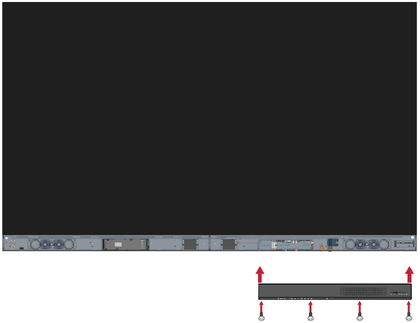

    4. LDP135-151 Wall Mounting Right Cover.png
    5. Repeat the above steps for the Middle and Left Cover.
      LDP135-151 Wall Mounting All Covers Yes LED.png
    6. Your display is now ready to power on.

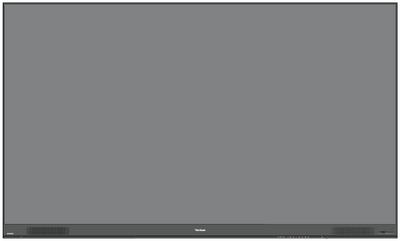

    7. LDP135-151 Front Panel.png
    NOTE: We also offer a variety of installation options for different scenarios: Floor Stand, Portrait Mode, Detachable Control Box, and Dual-Screen Splicing (32:9).
