LDP135-151 Using the Display

    From ViewSonic User Guide Database

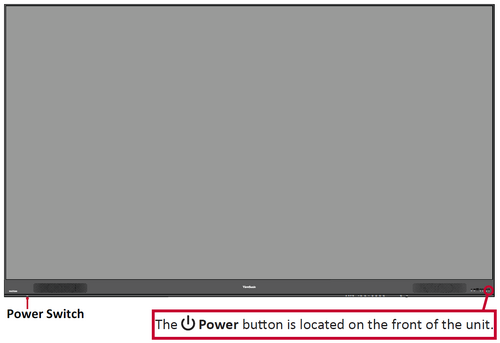

    Power On/Off your LED Display

    LDP135-151 Power On.png
    1. Ensure the power cord is connected and plugged into a power outlet.
    2. Press the Power Switch to the ON position.
    3. Press the Power button to turn on the LED display.
    4. To turn the LED display off, press the Power button again.

    Home Screen

    LD108-121 Home Screen Update.png
    Number Item Description
    1 Main Menu Access the Home Screen, APP Center, Settings, and Input Source.
    2 Time of Day Indicator The sky will change over the day between morning, noon, afternoon, and night.
    3 Quick Access Quick access to LAN, Wi-Fi, Brightness, and Power.
    NOTE: Only supported by keyboard and mouse.
    4 Date & Time Automatic time adjustment, time zone selection, and 24-hour format can all be adjusted. The Date & Time can also be hidden from the Home Screen under:
    Settings > Display > Launcher Settings
    5 ViewSonic Logo The logo can be hidden from the Home Screen under:
    Settings > Display > Launcher Settings

    Navigating the Home Screen

    Remote Control
    The remote control can be used to easily navigate the Home Screen. When using the remote control, ensure it is kept within the IR receiver range as shown below:

    LDP135-151 Remote Range.png

    Keyboard and Mouse
    When connected to the USB Type-A port of the display, a keyboard and mouse can also be used to navigate the Home Screen.

    LD163-181 Connect USBA.png

    The mouse pointer will appear as an orange dot on the display when used:

    Home Screen Mouse Pointer.png
    • The left mouse button will confirm actions.
    • The right mouse button will go back to the previous layer.
    • Keyboard shortcuts and hot keys are also supported, including: audio adjustment, mute, and back to the Home Screen.

    APP Center

    Home Screen App Center.png
    NOTE: Preloaded applications are subject to change without a notice.
    Icon Name Description
    LED Display Browser Icon.png
    Browser Web browser
    LED Display MVB Icon.png
    Display Wirelessly mirror your desktop
    LED Display Airplay Icon.png
    EAirplay AirPlay mirroring
    LED Display Enterprise Icon.png
    EnterpriseAgent Device management
    LED Display File Icon.png
    File Manager File explorer
    LED Display Manager Icon.png
    Manager Remote device management
    LED Display Revel Icon.png
    Revel Digital Signage Manage digital signage
    LED Display Setting Icon.png
    Settings View and adjust the display’s settings
    LED Display Nix Icon.png
    SureMDM Nix Secure, monitor, and manage devices
    LED Display WPS Icon.png
    WPS Office Create documents, spreadsheets, and presentations
    LED Display vCast Icon.png
    vCastReceiver Receive casted content from devices
    LED Display Sweeper Icon.png
    vSweeper Clear up storage space
    NOTE: Preloaded applications are subject to change without notice.

    Input Source

    LDP135-151 Home Screen Input Source.png

    The display supports eight input sources: Home, HDMI 1,HDMI 2, HDMI 3, HDMI 4, HDMI 5, HDBaseT, and USB C.

    Settings

    Adjust and view the display's settings.

    Menu Description
    Network & Internet View and adjust Wi-Fi, Ethernet, and Potable Hotspot.
    Connected Devices View and adjust Connected Devices.
    Apps & Notifications View and adjust App Info., App Permissions, and Default Apps.
    Display View and adjust Brightness Level, Ambient Light Sensor, Font Size, Startup & Shutdown, Input Setting, and Launcher Settings.
    Sound View and adjust Media Volume.
    Storage View and adjust Device Storage.
    System View and adjust Languages & Input, Date & Time, Dehumidification, Reset, and About Device.
    Upgrade View and adjust OTA Upgrade and Local Update.

    Settings Menu Tree

    Network & Internet

    Sub-menu Menu Option
    Wi-Fi Wi-Fi On
    Off
    Wi-Fi List Add Network
    Wi-Fi Preference Open Network Notification On
    Off
    Keep Wi-Fi On During Sleep
    Advanced
    Ethernet Ethernet IP Mode DHCP
    STATIC
    Ethernet Details
    Portable Hotspot Portable Wi-Fi Hotspot On
    Off

    Connected Devices

    Sub-menu Menu Option
    Connected Devices On
    Off
    Device Name ViewSonic DvLED

    Apps

    Sub-menu Menu Option
    App Info. Installed Apps Disable
    Force Stop
    App Permissions Calendar
    Location
    Microphone
    Storage
    Default Apps Browser
    Home

    Display

    Sub-menu Menu Option
    Brightness Level (-/+, 1~8)
    Ambient Light Sensor On
    Off
    Font Size (-/+, 1~4)
    Dual-Screen Splicing Enable On
    Off
    Startup & Shutdown Splash Screen Default
    ViewSonic
    Black
    Blue
    Last Shutdown Channel On
    Off
    Default Startup Channel Home
    HDMI 1
    HDMI 2
    HDMI 3
    HDMI 4
    HDMI 5
    USB C
    HDBaseT
    APP (Display)
    APP (vCastReceiver)
    Standby Mode Hibernate
    Sleep
    Splash Screen ViewSonic
    Black
    Blue
    Input Setting Input Alias HDMI 1 Display
    Hide
    HDMI 2 Display
    Hide
    HDMI 3 Display
    Hide
    HDMI 4 Display
    Hide
    HDMI 5 Display
    Hide
    USB C Display
    Hide
    HDBaseT Display
    Hide
    Signal Source Detect Enable
    Disable
    Launcher Settings ViewSonic Logo On
    Off
    Date & Time On
    Off
    Theme
    Other Display Settings Custom Resolution Width
    Height
    Custom DPI (-/+, 100~200)
    Custom Wallpaper
    Boot Logo Settings

    Sound

    Sub-menu Menu Option
    Media Volume (-/+, 0~100)

    Storage

    Sub-menu Menu Option
    Device Storage Internal Shared Storage Storage Manager On
    Off
    Photos & Videos
    Music & Audio
    Games
    Movie & TV

    System

    Sub-menu Menu Option
    Language & Input Languages English
    French
    Spanish
    German
    Russian
    Dutch
    繁体中文
    简体中文
    Turkish
    Arabic
    Virtual Keyboard Remote Control Input Method
    Manage Keyboards
    Timer Setting Shutdown Time Repeat Off
    Once
    Everyday
    Time
    Power On Time Repeat Off
    Once
    Everyday
    Time
    Sleep Timer Off/1/10/20/30/40/50/60/90/120 minute(s)
    Power Saving On
    Off
    Standby Mode Hibernate
    Sleep
    Date & Time Automatic Date & Time On
    Off
    Select Time Zone
    Use 24-hour Format
    Dehumidification Settings On
    Off
    Automatic Reminders On
    Off
    Begin Dehumidification Now On
    Off
    Scheduled On
    Off
    Reset Network Settings Reset
    Reset App Preferences
    Factory Data Reset
    About Device Status
    Legal Information
    Model
    Kernel Version
    Build Number
    Total Time

    Upgrade

    Sub-menu Menu Option
    OTA Upgrade OTA Cloud Server
    Local Update sda1
    SDcard

    Network & Internet

    LDP135-151 Settings Network Internet.png
    Sub-menu Description
    Wi-Fi
    • Select Wi-Fi to enter the Wi-Fi selection interface. Then select the desired Wi-Fi network and enter the password.
    • You can select Add Network in the Wi-Fi selection screen to manually add a Wi-Fi network.
    • Select Wi-Fi Preferences to view Wi-Fi usage preferences, Wi-Fi connection tips, etc.
    Ethernet Select Ethernet to enable/disable Ethernet, review DNS, and IP mode.
    Portable Hotspot Enable/disable Portable Wi-Fi Hotspot under Portable Hotspot.

    Connected Devices

    LDP135-151 Settings Connected Devices.png

    Enable/disable device connection, review connected devices, and search and connect to other devices.

    Apps & Notifications

    LDP135-151 Settings Apps Notifications.png
    Sub-menu Description
    App Info.
    • Select App Info to view installed applications and their detailed information.
    • You can also disable the app, review notifications and permissions, and adjust further settings.
    App Permissions Select App Permissions to manage various application permissions.
    Default Apps Select your default applications.

    Display

    LDP135-151 Settings Display.png
    Sub-menu Description
    Brightness Level Adjust the brightness level by eight (8) levels.
    Ambient Light Sensor Detects ambient light and adjusts brightness levels automatically.
    Font Size Preview and adjust the font size on the display.
    Dual-Screen Splicing Enable Dual-Screen Splicing if installing two (2) DirectView LED Displays together.
    Startup & Shutdown

    Startup Channel

    Last Shutdown Channel: Start in the channel that was last used before the previous shutdown.
    Default Startup Channel: Select a specific startup channel (Home, HDMI 1/2/3/4/5, HDBaseT, USB C, APP(Display), APP(vCastReceiver)).

    Standby Mode

    Hibernate: Power off the screen only.
    Sleep: Power down the display to minimal power consumption (0.5W).

    Splash Screen
    Change the boot screen to black, blue, or the ViewSonic logo.

    Input Setting

    Input Alias Switch
    Display or hide the input source.
    Signal Source Detect
    Enable or disable HDMI input detection. U Disk Detect
    Enable or disable U Disk input detection.

    Launcher Settings

    ViewSonic Logo
    Display or hide the ViewSonic logo on the Home Screen.
    Date & Time
    Display or hide the date and time on the Home Screen.
    Theme
    Choose from seven (7) included themes for the Home Screen.

    Other Display Settings Adjust the Resolution, DPI, wallpaper and other display settings.

    Sound

    LDP135-151 Settings Sound.png
    Sub-menu Description
    Media Volume Adjust the volume level of the display.

    Storage

    LDP135-151 Settings Storage.png
    Sub-menu Description
    Internal Shared Storage Internal storage allocation.

    System

    LDP135-151 Settings System.png
    Sub-menu Description
    Languages & Input

    Languages
    Language selection.
    Virtual Keyboard
    Select your input method.

    Timer Setting

    Shutdown Time Repeat
    Select the time and frequency for shutting down the display.
    Power ON Time Repeat
    Select the time and frequency for powering ON the display.
    Sleep Timer
    Set the amount of time before entering sleep mode.
    Power Saving
    Select when to enable power saving mode.
    Standby Mode
    Choose between Hibernate and Sleep modes.

    Date & Time

    Automatic Date & Time
    Enable or disable automatic time adjustment.
    Select Time Zone
    Choose your appropriate time zone.
    Use 24-hour Format
    Enable or disable 24-hour time format.

    Dehumidification Start and adjust dehumidification settings.
    Reset

    Network Settings Reset
    Reset current network settings.
    Reset App Preferences
    Reset current app preferences
    Factory Data Reset
    Restore the display to default factory settings.

    About Device View information about the display.

    Upgrade

    LDP135-151 Settings Upgrade.png
    Sub-menu Description
    OTA Upgrade

    Auto Update
    Automatically apply updates as they become available or schedule the default update date and choose “Hibernate” as the Standby Mode, and the system will automatically update the schedule after shutdown.
    Manual Update

    Check Update: The system will check for the latest FW automatically. If a new FW version is found, confirm the new FW is needed and then manually run the update.
    Local Update: Plug in a USB drive with the FW update in .zip format and run the .zip file to update the FW.
