IFP32 Using the ViewBoard

    From ViewSonic User Guide Database


    Power On/Off your ViewBoard

    Powering On/Off

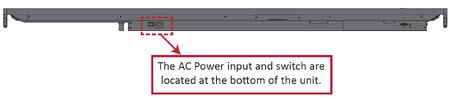

    1. Ensure the power cord is connected, plugged into a power outlet, and the power switch is in the “On” position.
    2. Press the Power button to turn on the ViewBoard.
    3. To turn the ViewBoard off, press and hold the Power button.

    Initial Launch Setup

    When you first turn on your ViewBoard, an initial setup wizard will launch.

    1. Select your Language.
    2. Setup and verify your LAN connection.
    3. Select your Time Zone to set the Date and Time.
    4. Select your preferred System Mode.
    5. Accept or Decline the Privacy and Copyright Protection Terms.

    vLauncher - Customizable Welcome Screen

    IFP50-3 Home Screen.png

    vLauncher Message

    Both the vLauncher Title and Subtitle can be customized by tapping on them. Additionally, a password can be set by tapping on Set Password.

    Applications

    • Installed applications can all be found on the welcome screen. To view all applications tap on the Down Arrow.
    • To hide the application drawer tap the Up Arrow.
    • To add a shortcut to an application, tap, hold, and drag up the icon.
    • To remove an application shortcut, tap, hold, and drag the icon down.

    Toolbar

    Toolbar trigger icons are on the edge of the ViewBoard launcher providing access to your tools.

    IFP50-3 Home Toolbar.png

    To launch a tool:

    1. Tap a Toolbar trigger icon.
    2. Tap on your desired tool icon.
    IFP50-3 Home Toolbar Closeup.png
    NOTE: The default toolbar setting is to be available for all input sources; however, users can go to: Settings > Preference > Toolbar setting to adjust the options: (1) available for all input sources, (2) hide the toolbar for all input sources.

    Toolbar Icons

    Icon Description
    IFP52 Icon Return.png

    Back
    Return to the previous operation screen.
    IFP52 Icon Home.png

    Home
    Return to the Home Screen of the Embedded Player.
    IFP52 Icon Recent.png

    Recent
    Display all embedded applications that are currently being used.
    IFP52 Icon App.png

    Apps
    View all installed applications.
    Icon Whiteboard.svg

    Whiteboard
    Launch the whiteboarding software.
    Icon Record.svg

    Record
    Record, view, and save on-screen content.
    IFP52 Icon Draw.png

    Draw
    Access the pen, highlighter, clear, and save options.
    IFP52 Pen Icon.png
    IFP52 Highlighter Icon.png
    IFP52 Eraser.png
    IFP52 Undo Icon.png
    Pen
    Highlighter
    Eraser
    Undo
    IFP52 Redo Icon.png
    IFP52 Clean Icon.png
    IFP52 Save Icon.png
    IFP52 Exit Icon.png
    Redo
    Clean
    Save
    Exit
    Pen
    Annotate the overlay of any input source with black, white, yellow, orange, red, pink, green, or blue ink.
    NOTE: The default pen setting supports up to 10-point writing.
    Highlighter
    Mark and highlight with yellow, grey, gold, orange, red, pink, green or blue ink.
    NOTE: The default highlighter setting supports up to 10-point marking.
    Eraser
    Selectively remove the digital ink on the screen.
    Undo
    Undo the previous action.
    Redo
    Redo the previous action.
    Clean
    Clears all the digital ink on the screen.
    Save
    Save the screen image and any annotations.
    Exit
    Close the drawing tool.
    IFP52 Icon More.png

    More
    View more applications within the ViewBoard toolbar.
    IFP52 Screen Freeze Icon.png
    IFP52 Spotlight Icon.png
    IFP52 Stopwatch Icon.png
    IFP32 AirClass Icon.png
    Screen Freeze
    Spotlight
    Stopwatch
    Air Class
    IFP52 Timer Icon.png
    IFP52 Hide Unhide Icon.png
    IFP52 Screen Capture Icon.png
    Timer
    Hide/Unhide
    Screen Capture
    Screen Freeze
    Convert the currently displayed content into a still image; then you can zoom in, zoom out, go back to full screen, and exit.
    Spotlight
    Highlight the focus content zone. Tap the Setting icon to adjust the spotlight size and alpha blending effect.
    Stopwatch
    Tapping Start will initiate the stopwatch. At any time, the stopwatch can be paused, resumed, split, or reset.
    Timer
    Access the countdown timer with an optional alarm setting. Touch and swipe to adjust the numeric values, then click Start. At any time, the countdown timer can be paused, resumed, or reset.
    Hide/Unhide
    Hide or unhide the Tool bar trigger icons.
    Air Class
    Interactive teaching tool for classroom usage.
    Screen Capture
    Take a screenshot of the current screen.
    IFP52 Icon Settings.png

    Settings
    Access the General Settings.
