IFP32 Remote Control

    From ViewSonic User Guide Database

    Remote Control Overview

    Remote Control
    Number Description
    1 Power On/Off
    2 Screen Capture
    3 [PC[1]] Windows Button
    4 Startup writing
    5 Back to the Embedded player Home Screen
    6 Back / Return to previous page
    7 Increase / Decrease volume
    8 Numeric Keypad
    9 Information
    10 Input source selection
    11 Media control buttons:

    Red - Play / Pause
    Green - Stop
    Yellow - Forwards
    Blue - Backwards

    12 [PC[1]] Menu button
    13 [PC[1]] Exit dialog box
    14 Settings menu
    15 Up / Down / Left / Right / OK
    16 Freeze screen
    17 Mute / Unmute
    18 Increase / Decrease Brightness
    19 Blank screen
    20 Adjust Aspect Ratio
    1. 1.0 1.1 1.2 All computer-related function keys are not available without a slot-in computer.

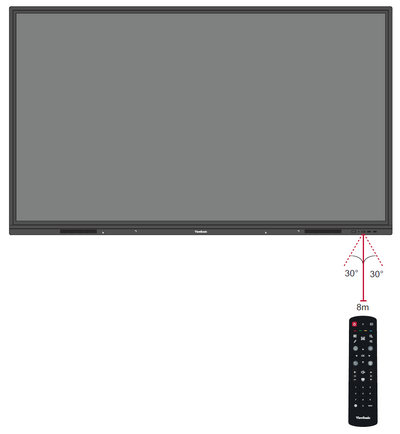

    Remote Control Effective Range

    The working range of the remote control is shown here. It has an effective range of 8 meters, 30° degrees left and right. Ensure there is nothing obstructing the remote control’s signal to the receiver.

    Effective Range of the Remote Control

    Replacing the Batteries of the Remote Control

    1. Remove the cover on the rear of the remote control.
    2. Insert two “AAA” batteries, ensuring the “+” symbol on the battery matches the “+” on the battery post.
    3. Replace the cover by aligning it with the slot on the remote control and snapping the latch shut.
    Replacing the Batteries of the Remote Control
    There is a risk of combustion if the batteries are replaced with the incorrect type.
    • Avoid leaving the remote control and batteries in excessive heat or a humid environment.
    • Replace only with the same or equivalent type recommended by the battery manufacturer.
    • Dispose of used batteries according to the manufacturer’s instructions and local environment regulations for your region.
