IFP32 Introduction

    From ViewSonic User Guide Database

    Package Contents

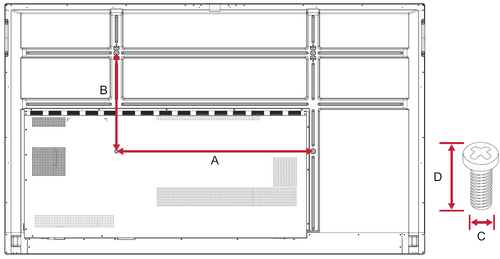

    Wall Mount Kit Specifications (VESA)

    Please follow the instructions in the wall mount installation guide to install your wall mount or mobile mount bracket. If attaching to other building materials, please contact your nearest dealer.

    Wall Mount Kit Specifications
    Model VESA Spec. (A x B) Standard Screw (C x D) Quantity
    IFP6532 - 65” 600 x 400 mm M8 x 25 mm 4
    IFP7532 - 75” 800 x 400 mm M8 x 25 mm 4
    IFP8632 - 86” 800 x 600 mm M8 x 25 mm 4
    Do not use screws that are longer than the standard dimension, as they may cause damage to the inside of the display.

    Product Overview

    Front Panel | Control Panel

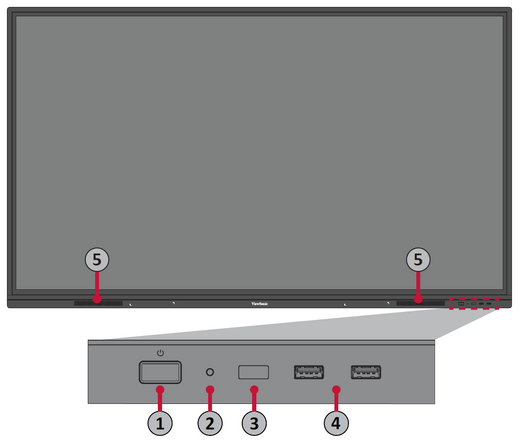

    IFP32 Front Panel and Control Panel

    Rear Panel

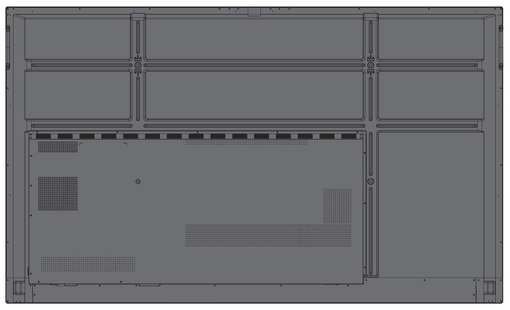

    IFP32 Rear Panel
    Number Description
    1 Power button
    Turn on/off the device
    Tap to enter Energy Saving mode
    Press and hold for at least two (2) seconds to enter Standby mode
    2 Ambient light sensor
    3 Remote control IR sensor
    4 USB 2.0. Smart USB port for PC, HDMI, VGA, and ViewBoard input signals
    5 Speaker

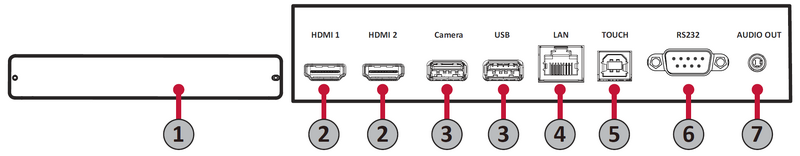

    I/O Panel

    Lower Right Side

    IFP32 I/O Panel


    Bottom Left

    IFP32 I/O Panel


    Bottom Right

    IFP32 I/O Panel


    Bottom Center

    IFP32 I/O Panel
    NOTE:
    • TOUCH, HDMI, and VGA are grouped by color; i.e. TOUCH 1 should be used with HDMI 1/2.
    • Under the Embedded Player, USB ports only support 2.0 transfer speeds.

    Number Port Description
    1 PC Slot Slot for adding optional PC module.
    2 HDMI 1/2 High definition input; connect to PC with HDMI output, set-top box, or other video device.
    3 USB 2.0 Connect USB devices such as hard disks, keyboard, mouse, etc. [ 5V dc/0.5A ]
    4 LAN Standard RJ45 (10M/100M for PC; 10M/100M for ViewBoard) Internet connection interface.
    NOTE: This network port is used for the Embedded Player and slot-in PC.
    5 Touch Touch signal output to external PC.
    6 RS-232 Serial interface; used for mutual transfer of data between devices.
    7 Audio Out Audio output to an external speaker.
    8 AC Switch Turn on/off AC power supply

    “I” = Power on, “O” = Power off

    9 AC IN AC power input.
    10 Audio In External computer audio input.
    11 VGA External computer video input.

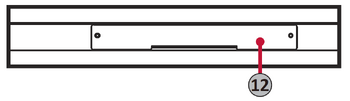

    12 Wi-Fi Module Slot Slot for adding optional Wi-Fi module (VB-WIFI-002).
