    Pre-installed Applications

    NOTE: Installed applications are subject to change (install, uninstall, update) without notice when the system is updated. Please contact your local customer service if you have any questions.

    Record

    Capture everything that is displayed on screen in a video format. To launch the screen recording application:

    1. Select the Record icon under More.
    2. Select the preferred recording configurations.
    3. Touch the check mark and a three (3) second countdown will begin. Screen recording will begin immediately after the countdown.
    4. After stopping the recording, you will be able to preview the video, save it, or discard it.

    Note

    A digital whiteboarding application

    Note

    Toolbar

    Item Description
    Toolbar
    Menu Create new, open, save, import and export files. Set up cloud storage, themes and adjust other settings.
    Toolbar
    Exit Close the Note application.
    Toolbar
    Share Share the canvas via QR code.
    Toolbar
    List Open a list of local files.
    Toolbar
    Selection Select objects, text, and other elements on the canvas.
    Toolbar
    Write Writing tools and customization options.
    Toolbar
    Eraser Erase objects.
    Toolbar
    Clean Clear the canvas.
    Toolbar
    Ruler Select from several ruler types.
    Toolbar
    Shape Create 2D and 3D shapes.
    Toolbar
    Form Create a form and set the quantity of columns and rows.
    Toolbar
    Mind Map Create a mind map.
    Toolbar
    Note Create a sticker-type note.
    Toolbar
    Move Move the canvas.
    Toolbar
    Grid Create a grid.
    Toolbar
    Undo Undo the previous action.
    Toolbar
    Redo Redo the previous action.
    Toolbar
    Add Add a new canvas.
    Toolbar
    Previous Go to the previous page (if the canvas has multiple pages).
    Toolbar
    Page Indicates the page number.
    Toolbar
    Next Go to the next page (if the canvas has multiple pages).

    vCast

    Working with ViewBoard® Cast software (vCast, vCast Pro, and vCastSender), the vCast application will allow the ViewBoard to receive laptop screens (Windows/Mac/Chrome) and mobile (iOS/Android) users’ screens, photos, videos, annotations, and camera(s) that are using the vCastSender application.

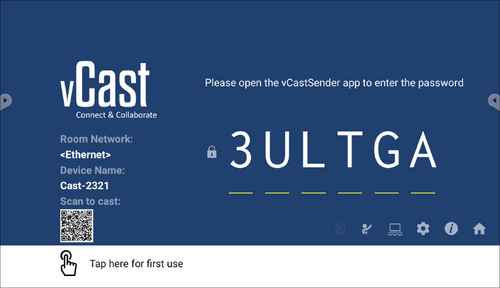

    ViewBoard Cast (vCast)
    NOTE:
    • ViewBoard® Cast software, laptops, and mobile devices can connect to both the same subnet and cross subnet by entering the on-screen PIN code.
    • Connected devices will show up under Device List on the same subnet connection.
    • If the device does not show up under Device List, users will need to key-in the on-screen PIN code.

    Network Information

    • Ports:
    TCP 56789, 25123, 8121 & 8000 (Controlling message port & client device audio transfer)
    TCP 8600 (BYOM)
    TCP 53000 (Request share screen)
    TCP 52020 (Reverse control)
    TCP 52025 (Reverse control for ViewBoard Cast Button)
    TCP 52030 (Status sync)
    TCP 52040 (Moderator mode)
    UDP 48689, 25123 (Device searching and broadcast & client device audio transfer)
    UDP 5353 (Multicast search device protocol)
    • Port and DNS Activation:
    Port: 443
    DNS: https://vcastactivate.viewsonic.com
    • OTA Service:
    Server Port: TCP443
    Server FQDN Name: https://vcastupdate.viewsonic.com

    Display Group Settings

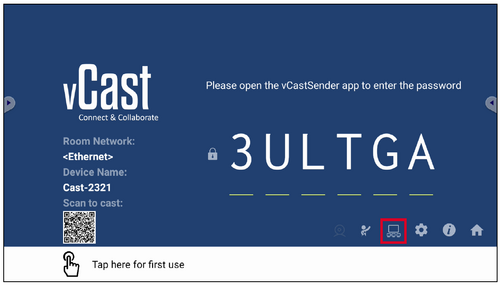

    To adjust the Display Group Settings, select the Display Group icon (VCastPro DG Icon.svg) located in the lower-right corner of the screen.

    vCast Display Group

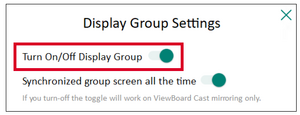

    1. Toggle the "Turn On/Off Display Group" ON to enable the Display Group feature.
    2. vCast Display Group
      NOTE: Other preinstalled ViewBoard Cast devices in the same network will be listed.

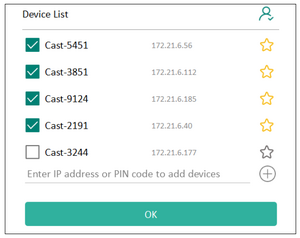

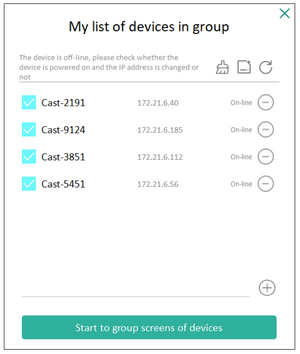

    3. Select the devices you want to join the display group and select OK to save the settings.
    4. vCast Display Group
      NOTE:
      • If the devices you want to group are not listed, you can enter their respective IP address or connecting PIN code.
      • The Display Group maximum device limit is six devices.
    5. If you frequently connect to the same device, you can select the Star icon (VCastPro Star Icon.svg) next to the device to add it to your frequently connected devices list, "My List of Devices in Group", for easier Display Group setup and management.
    6. vCast Display Group

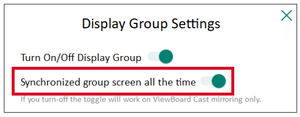

    Synchronized Group Screen All the Time

    When the “Synchronized group screen all the time” function is toggled ON, it will display a synchronized group screen continuously. If it is toggled OFF, it will work on vCast mirroring only.

    vCast Display Group
    NOTE: Select the devices to group first, then toggle the "Synchronized group screen all the time” function ON to avoid interruption.

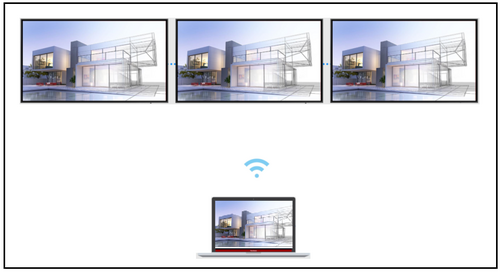

    Share a Screen to the Display Group (One to Many Casting)

    After confirming the above settings, you can share your screen to the main display, then the grouped client devices will be synced up to your screen.

    vCast Display Group

    Moderator Mode

    Moderator Mode allows the moderator to take control of the devices connected to the ViewBoard. To enter Moderator Mode, select the Moderator Mode icon (VCast Pro MM Icon.svg) located in the lower-right corner of the screen.

    vCast Moderator Mode

    When enabled, the moderator can view a list of all connected screens in the left floating window and can preview each participant’s screen and then select any of participant’s screen and cast to the ViewBoard’s main screen for presentation. The moderator can also control each participant’s screen, annotate on the ViewBoard, and remove unwanted participants by selecting the close icon (X).

    vCast Moderator Mode

    Broadcast

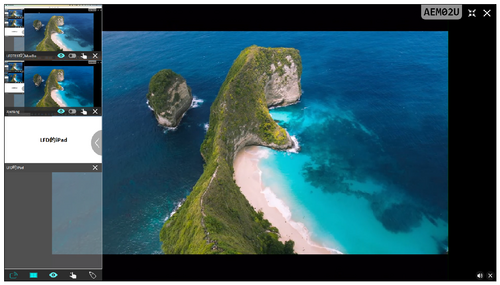

    When enabled, the ViewBoard’s screen will be broadcasted to all of the participant’s connected screens simultaneously. The participants can only view the presentation contents until the moderator disables the Broadcast function.

    vCast Broadcast

    Multiple Screen Sharing

    By default, vCast is set to allow multiple screen sharing, but can also be set to single screen sharing. To do this, the moderator can select the Multiple Screen Sharing icon to switch to single screen sharing.

    Preview Screen

    By default, vCast is set to let the moderator preview the participant’s screen contents prior to sharing to the ViewBoard. Selecting the Preview Screen icon, the Moderator can switch to see the participant’s name only.

    Touch

    By default, participants can use touch for collaboration after connecting. The moderator can enable/disable the touch function of a participant by selecting the Touch icon in their window.

    NOTE:

    • Moderator Mode is supported on all vCastSender and AirPlay devices, but mobile devices are limited to a "preview" function. Additionally, mobile Android devices cannot cast sound out.
    • When you cast your Windows/Mac/Chrome screen to a ViewBoard, the selected full screen unit will not be broadcasted back to your device to avoid repetitive screen casting.
    • The active presenter can touch each of the participant's screens to remotely control casting devices.
    • The number of multi-screen presenters on-screen depends on your Windows CPU processor performance and router specifications.

    Casting from Windows, MacBook, and Chrome Devices

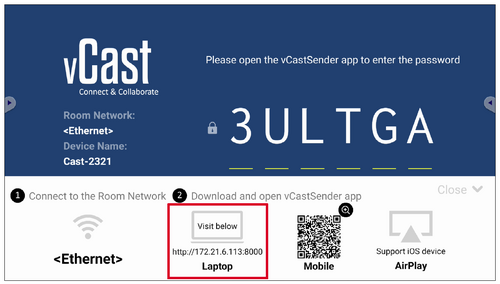

    IFP52 vCast Sender 1-1.png
    1. Ensure the client device (e.g., laptop) is connected to the same network as the ViewBoard.

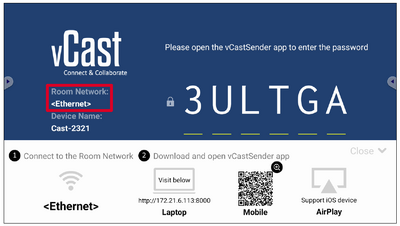

    2. NOTE: The network name can be found under Room Network.
      VCast Computer 1.png
    3. On the client device, visit the address that is shown on the ViewBoard to download and install the vCastSender application.
    4. After installing, launch the vCastSender application.
    5. To connect to the ViewBoard, input the PIN code and click OK.
    6. NOTE: The PIN code can be found as highlighted below:
      VCast Computer 2.png

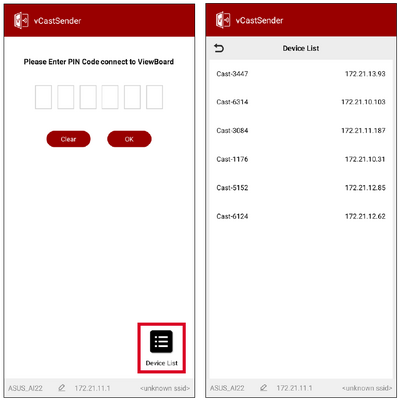

    7. Additionally, you can connect to the ViewBoard or display by clicking Device List then the Device Name listed.
    8. VCast Computer 3.png

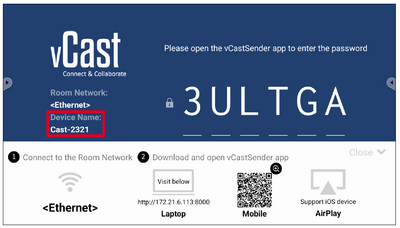

      NOTE: The Device Name can be found as highlighted below:
      VCast Computer 4.png

    Casting from Android Devices

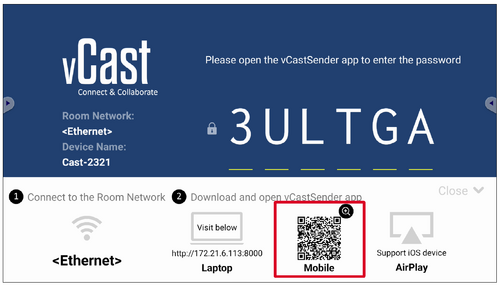

    VCast Mobile Update 1.png
    1. Ensure the client device (e.g., Android phone or tablet) is connected to the same network as the ViewBoard.
    2. NOTE: The network name can be found under Room Network.
      VCast Computer 1.png

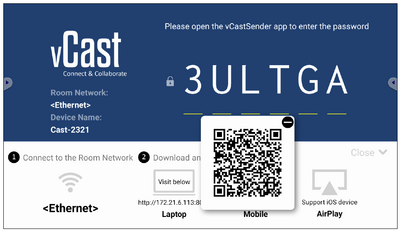

    3. On the Android client device, scan the QR code shown on the ViewBoard to directly download the vCastSender application, or download the application from the Google Play Store.
    4. VCast Sender 3.png
    5. After installing, launch the vCastSender application.
    6. To connect to the display, input the PIN code and select OK.
    7. NOTE: The PIN code can be found as highlighted below:
      VCast Computer 2.png
    8. You can also connect to the ViewBoard by clicking Device List then the Device Name listed.
    9. VCast Sender Device List Scan.png
      NOTE: The Device Name can be found as highlighted below:
      VCast Computer 4.png

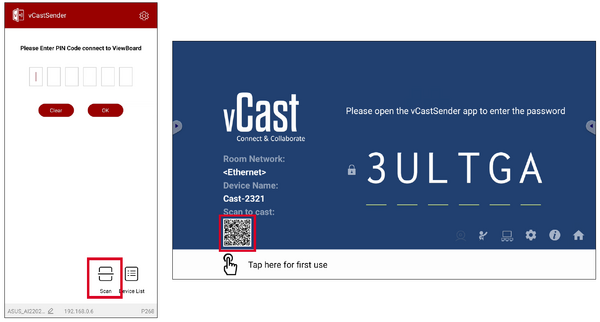

    10. Additionally, you can connect to the ViewBoard by selecting Scan then placing the on-screen QR code into the box to automatically connect.
    11. VCast Computer 5.png

    Casting from Apple iOS Devices

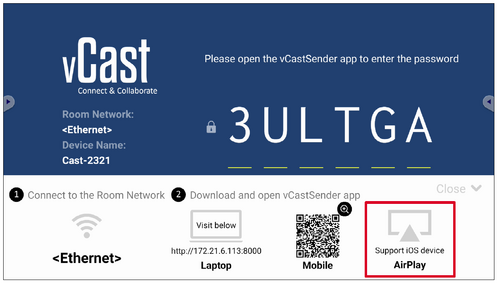

    Apple AirPlay® is compatible with vCast for screen mirroring and content streaming under the same subnet environment only. An “AirPlay Password” will be generated on-screen for connection when using AirPlay to cast to a ViewBoard.

    VCast Apple Main.png
    1. Ensure the client device (e.g., iPhone or iPad) is connected to the same network as the ViewBoard.
    2. NOTE: The network name can be found under Room Network.
      VCast Computer 1.png
    3. On the iOS client device, directly open AirPlay and select the Device Name of the ViewBoard to connect.
    4. NOTE: The Device Name can be found as highlighted below:
      VCast Computer 4.png

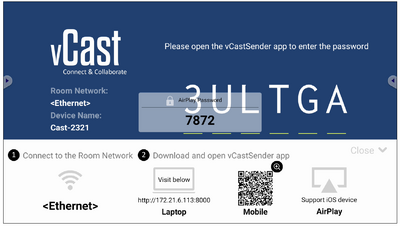

    5. Input the generated on-screen AirPlay Password on the client device to connect.
    6. VCast Sender 4.png
      NOTE: In a cross subnet environment, please download and connect with the vCastSender iOS application from the Apple App Store.
    7. You can also connect to the ViewBoard by selecting Scan then placing the on-screen QR code into the box to automatically connect.
    8. VCast Computer 5.png

    Connecting to a Display from a Mobile Device

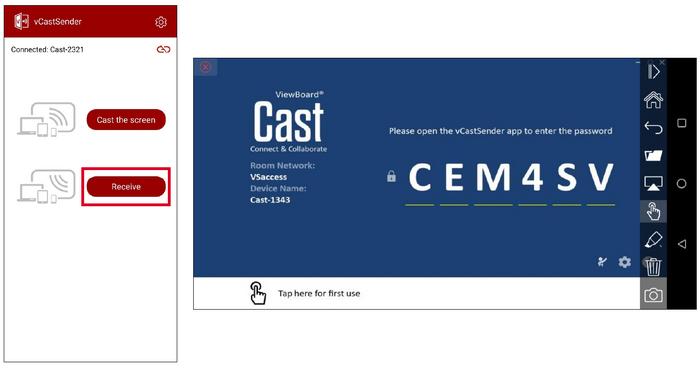

    Once connected, select Receive. The ViewBoard or selected display screen will appear on the mobile device with an on-screen toolbar. Users can interact with the ViewBoard or display with annotations, file sharing, etc.

    VCast Mobile 1.png
    Item Description
    VCast Icon Toggle.svg
    Toggle Hide or display the toolbar.
    VCast Icon Home.svg
    Home Return to the Home interface.
    VCast Icon Return.svg
    Return Return to the previous operation.
    VCast Icon Folder.svg
    Folder View or open the mobile device's files.
    VCast Icon Share.svg
    Share Cast the mobile device's screen to the connected ViewBoard or display.
    VCast Icon Touch.svg
    Touch Remotely control the connected ViewBoard or display.
    VCast Icon Annotate.svg
    Annotate Make annotations, and adjust the pen color.
    VCast Icon Clear.svg
    Clear Clear everything on screen.
    VCast Icon Camera.svg
    Camera Send camera images to the connected ViewBoard or display.

    Other Default Applications

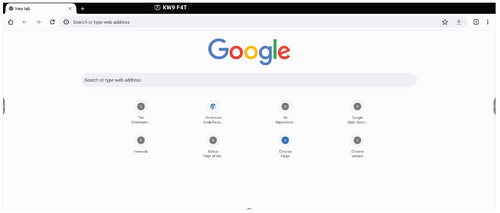

    Browser

    Web browser for surfing the internet.

    Browser

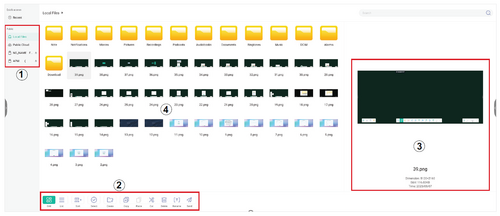

    Finder

    Manage files and folders.

    Finder
    Number Item Description
    1 Storage Device Display Select the appropriate storage device.
    2 Icons
    Item Description
    Finder Icon
    Grid Display files by grid
    Finder Icon
    List Display files by list
    Finder Icon
    Sort Sort the files
    Finder Icon
    Select Select a file
    Finder Icon
    Create Create a new folder
    Finder Icon
    Copy Copy a file
    Finder Icon
    Paste Paste a copied or cut file
    Finder Icon
    Cut Cut a file
    Finder Icon
    Delete Delete a file
    Finder Icon
    Rename Rename a file
    Finder Icon
    Send Share a file
    3 File Information Preview the file, show the file’s name, size, resolution, and creation date.
    4 Main Display Area Files are displayed here.

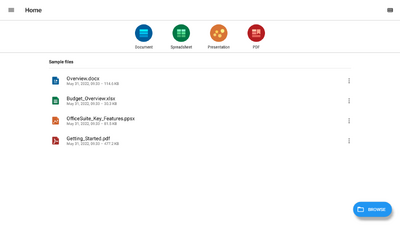

    OfficeSuite

    Create, edit, and view Documents, Spreadsheets, Presentations, and PDFs.

    PIP (Picture-in-Picture)

    Split the screen into two parts, a main window and an inset window.

    NOTE: PIP only works between an Android application (browser, media player, vCast) and an external source.

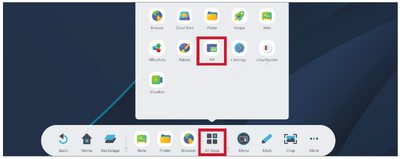

    • To open PIP, select: All Apps > PIP.
    • PIP

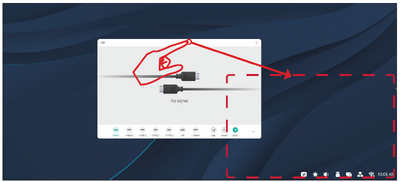

    • To change the position of the inset window, select, hold and drag the window to the preferred location.
    • PIP

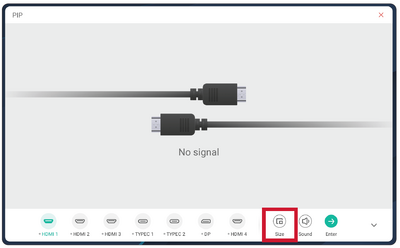

    • To adjust the size of the inset window, select Size.
    • PIP

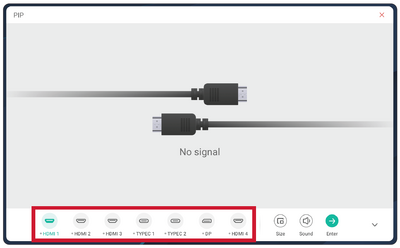

    • To change PIP input source select HDMI 1, HDMI 2, HDMI 3, HDMI 4, Type C 1, Type C 2, or DP.
    • PIP

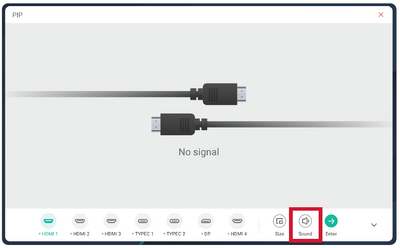

    • To control the connected external device’s volume, select Sound.
    • PIP

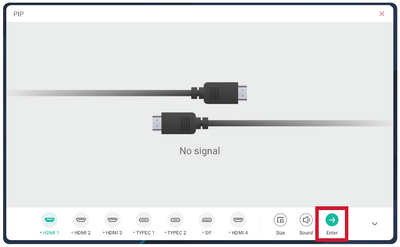

    • Select Enter to switch to the PIP input source.
    • PIP
