IFP105S Using the ViewBoard

Powering ON/OFF your Display

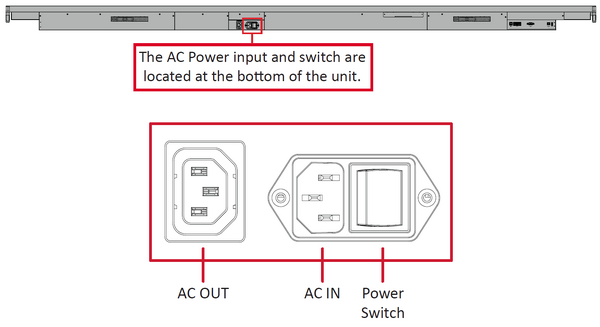

1. Ensure the power cord is connected, plugged into a power outlet, and the power switch is in the “ON” position.

2. Press the Power button to turn on the display.
3. To turn the display OFF, press and hold the Power button.

NOTE: AC OUT can be connected to another device. However, the output power use must be < 250W.

Initial Launch Setup

When you first turn on your ViewBoard, an initial setup wizard will launch.

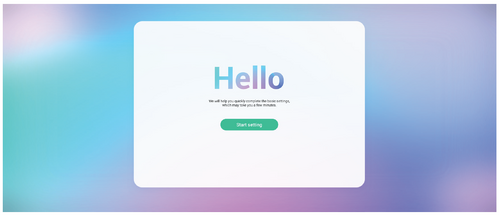

1. Select Start Setting to begin the setup wizard.

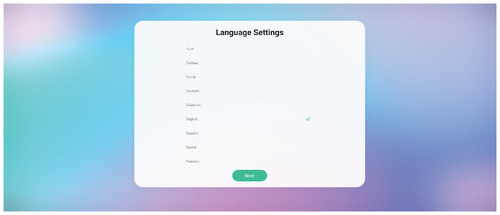

2. Select your Language.

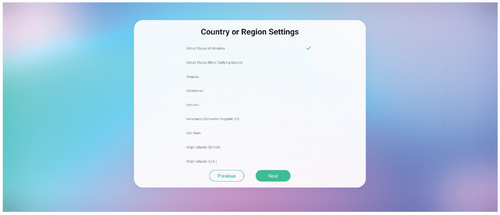

3. Select your Country or Region.

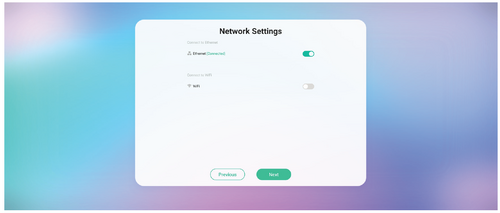

4. Setup and verify your LAN connection.

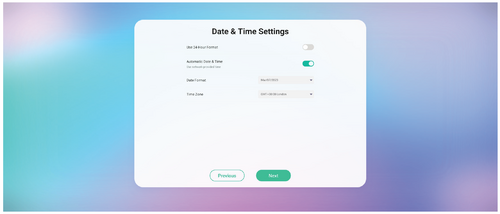

5. Select your Time Zone to set the Date and Time.

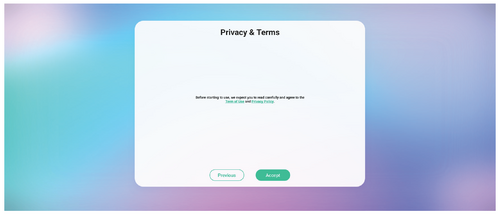

6. Accept or Decline the Privacy and Copyright Protection Terms.

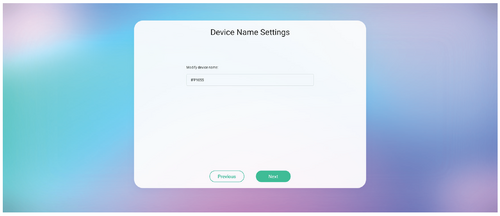

7. Set your device name.

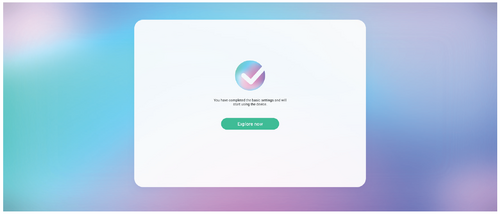

8. Select Confirm Now to complete the initial setup.

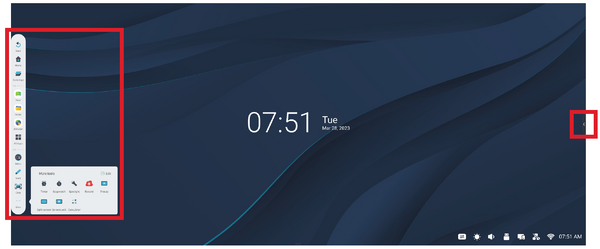

Toolbar

The Toolbar is where your applications and tools can be found. Trigger icons are on the edge of the launcher for quick access.

To launch an application or tool:

1. Tap a Toolbar trigger icon.
2. Tap on your desired application or tool icon.

Toolbar Icons

Icon	Description
Back	Return to the previous operation screen.
Home	Return to the Home Screen of the Embedded Player.
Backstage	Display all embedded applications that are currently open.

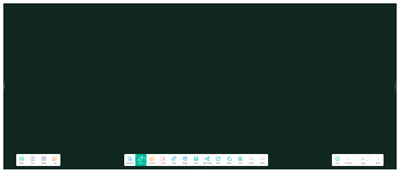

Note	Digital whiteboarding application.
Finder	Manage files and folders.
Browser	Web browser for surfing the Internet.
All Apps	View all installed applications.
	Cloud Drive Store and retrieve files from your cloud storage service.
	Keeper Clear unecessary data and unwanted files.
	OfficeSuite Create, edit, and view documents, spreadsheets, presentations, and PDFs.
	Palette Select a color and adjust the saturation levels.
	PIP Picture-in-Picture. Split the screen into two parts, a main window and an inset window. Users can specify the input source for each screen.
	Settings Access the System Settings.
	vCastReceiver Working with ViewBoard Cast software, receive vCastSender laptop screens (Windows/Mac/Chrome) and mobile (iOS/Android) users’ screens, photos, videos, annotations, and camera(s).
	Visualizer Display video from a connected camera.
Menu	Access the General Settings.

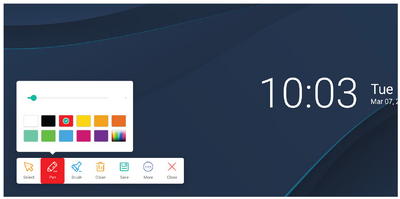

Mark	Annotate the overlay of any input source with a pen or brush.
Crop	Take a screenshot of the current screen and resize.
More	View more applications within the toolbar.
	Timer A countdown timer with an optional alarm setting. Touch and swipe to adjust the numeric values, then click Start. At any time, the countdown timer can be paused, resumed, or reset.
	Stopwatch Tapping Start will initiate the stopwatch. At any time, the stopwatch can be paused, resumed, split, or reset.
	Spotlight Highlight the focus content zone. Tap the setting icon to adjust the spotlight size and alpha blending effect.
	Record Record, view, and save on-screen content.
	Freeze Convert the currently displayed content into a still image; then you can zoom in, zoom out, go back to full screen, and exit.

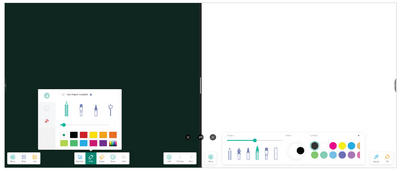

	Split-Screen Split the screen to display two different applications on the display.
	Screen Lock Lock the display’s screen for added security.
	Calculator Use for mathematical calculations.

Control Bar

Frequently used settings and tools can be accessed quickly through the Control Bar.

Item		Description

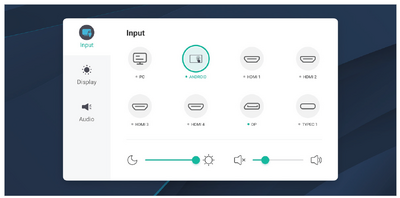

1	Input Source	Select the input source.

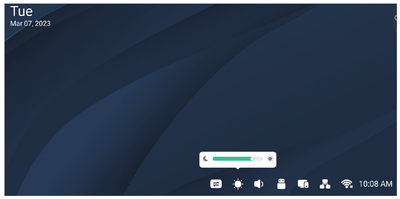

2	Brightness	Adjust the brightness level of the display.

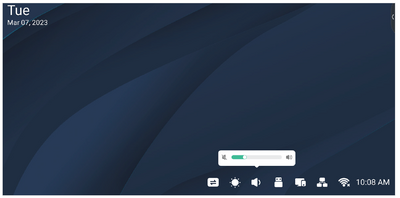

3	Sound	Adjust the volume level of the display.

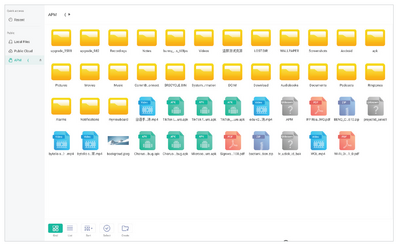

4	USB	If a USB storage device is connected, the USB icon will be visible. Clicking the icon will open the USB storage device’s folder.

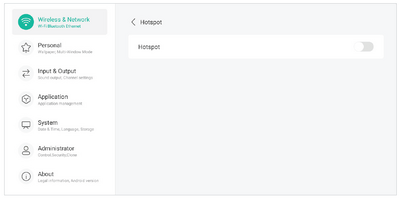

5	Hotspot	Shortcut to Wireless Hotspot settings. Enable or disable the hotspot function.

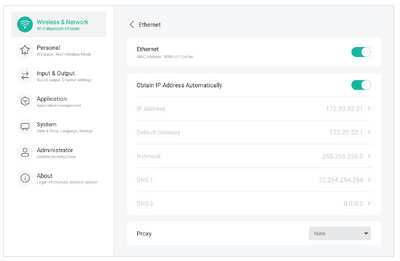

6	Ethernet	Shortcut to Wireless & Network LAN settings. Enable or disable LAN connection.

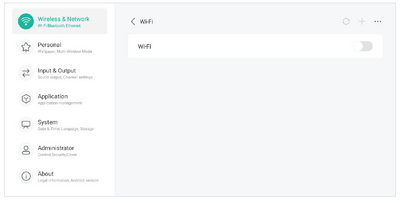

7	Wireless	Shortcut to Wireless & Network Wi-Fi settings. Enable or disable Wi-Fi and connect to a wireless network.
8	Date & Time	Shortcut to Date & Time settings. Set the date and time of the display.
