TD2465 Quick Menu

    From ViewSonic User Guide Database

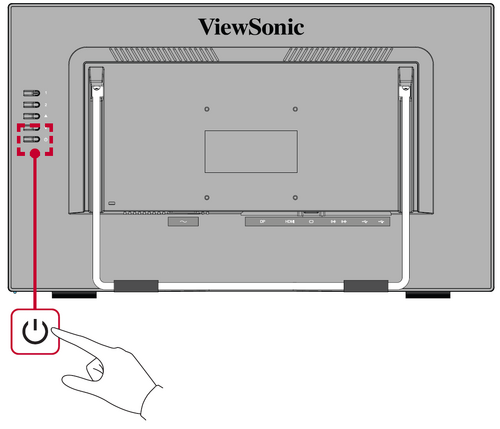

    Turning the Device On/Off

    1. Plug the power cord into a power outlet.
    2. Press the Power key to turn on the monitor.
    3. To turn the monitor off, press the Power key again.
    Turning the Device On/Off
    NOTE: The monitor will still consume some power as long as the power cord is connected to the power outlet. If the monitor is not being used for a long period of time, please disconnect the power plug from the power outlet.

    Using the Control Panel Keys

    Use the control panel keys to activate Hot Keys, navigate the On-Screen Display (OSD) Menu, and change the settings.

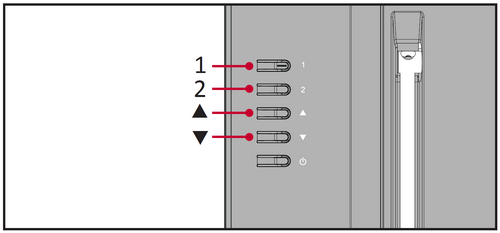

    Control Keys

    On-Screen Display (OSD) Menu

    Press the 1 key to activate the On-Screen Display (OSD) Menu. Follow the key guide that appears on the screen to select options or make adjustments.

    OSD Menu
    Icon Name Description
    Auto Image Adjust Auto Image Adjust Automatically adjust the screen position.
    Contrast/Brightness Contrast/Brightness Adjust the contrast or brightness level.
    Input Select Input Select Select the input source.
    Audio Adjust Audio Adjust Adjust the level, or mute the volume.
    Color Adjust Color Adjust Select one of the preset color settings.
    Information Information Displays the timing mode coming from the graphics card in the computer, the LCD model number, the serial number, and the ViewSonic® website URL.
    Manual Image Adjust Manual Image Adjust Manually set a variety of image quality adjustments.
    Setup Menu Setup Menu Adjust On-Screen Display (OSD) settings.
    Memory Recall Memory Recall Returns the adjustments back to factory settings.
