TD2465 Initial Setup
Adjusting the Stand
- Place the monitor on a flat, stable surface with the screen facing down.

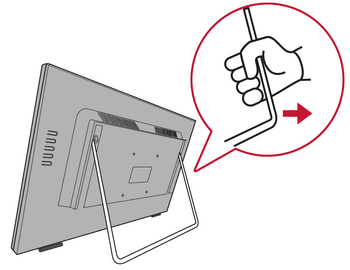

- With one hand support the monitor, then carefully lift and extend the stand.

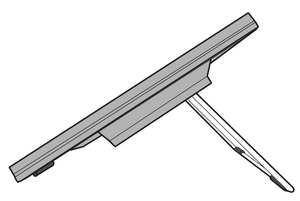

- Lift the device into its upright position on a flat, stable surface.
- Always place the device on a flat, stable surface. Failure to do so may cause the device to fall and damage the device and/or result in personal injury.
Stand Installation
- Place the monitor on a flat, stable surface with the screen facing down.
- Ensure the Adjustable Foot is secured against the monitor.

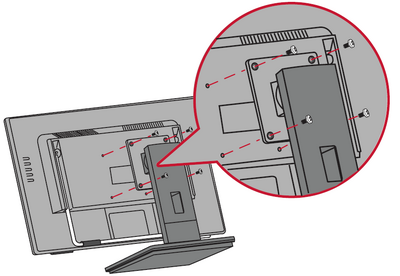

- Align the mounting holes of the stand with the VESA mounting holes at the rear of the monitor.
- Secure the stand to the monitor with the screws provided.
- Lift the device into its upright position on a flat stable surface.
Wall Mounting

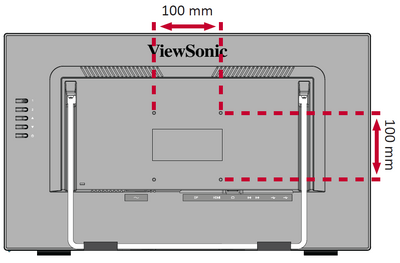

Refer to the table below for the standard dimensions for wall mount kits.
- For use only with a UL certified wall mount kit/bracket. To obtain a wall-mounting kit or height adjustment base, contact ViewSonic® or your local dealer.
| Maximum Loading | Hole Pattern (W x H) | Interface Pad (W x H x D) | Pad Hole | Screw Specification | Quantity |
|---|---|---|---|---|---|
| 14 kg | 100 x 100 mm | 115 x 115 x 2.6 mm | Ø 5 mm | M4 x 10 mm | 4 screws |
- Turn off the device and disconnect all cables.
- Place the device on a flat, stable surface with the screen facing down.
- Unscrew the attached stand and carefully remove it.
- Attach the mounting bracket to the VESA mounting holes at the rear of the monitor. Then secure it with four (4) screws (M6 x 12 mm).
- Follow the instructions that come with the wall mounting kit to mount the monitor onto the wall.
