Remote Control Overview

Remote Control
Number Description
1 Power on/off
2 Screen capture
3 Startup writing
4 Back to the ViewBoard player Home Screen
5 Back/Return to the previous page
6 Increase/Decrease the Volume
7 Number Keypad
8 Information
9 Input source selection
10 Media control buttons:
Red:: Play/Pause
Green: Stop
Yellow: Forwards
Blue: Backwards
11 Settings menu
12 Up/Down/Right/Left/OK
13 Freeze screen
14 Mute/Unmute
15 Increase/Decrease Brightness
16 Blank Screen
17 Adjust Aspect Ratio

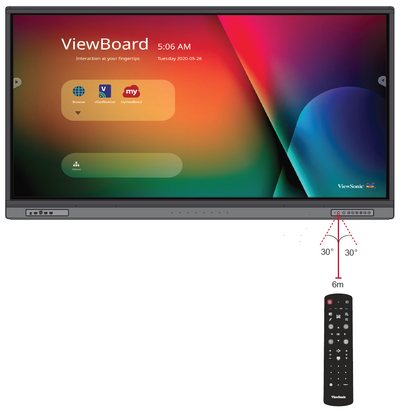

Remote Control Effective Range

The working range of the remote control is shown here. It has an effective range of 6 meters, 30° degrees left and right. Ensure there is nothing obstructing the remote control’s signal to the receiver.

Effective Range of the Remote Control

Replacing the Batteries of the Remote Control

  1. Remove the cover on the rear of the remote control.
  2. Insert two “AAA” batteries, ensuring the “+” symbol on the battery matches the “+” on the battery post.
  3. Replace the cover by aligning it with the slot on the remote control and snapping the latch shut.
Replacing the Batteries of the Remote Control
There is a risk of explosion if batteries are replaced with the incorrect type.
NOTE:
  • It is recommended that you do not mix battery types.
  • Always dispose of old batteries in an environmentally friendly way. Contact your local government for more information on how to dispose of batteries safely.
