Power On/Off your ViewBoard

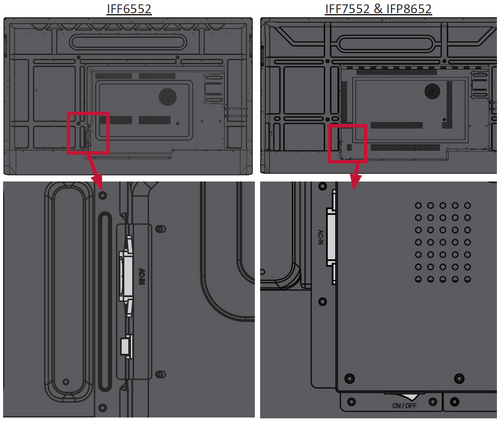

  1. Ensure the power cord is connected, plugged into a power outlet, and the power switch is in the “On” position.
  2. IFP52 Power Switch.png
  3. Press the Power button to turn on the ViewBoard.
  4. To turn the ViewBoard off, press and hold the Power button.

Initial Launch Setup

When you first turn on your ViewBoard, an initial setup wizard will launch.

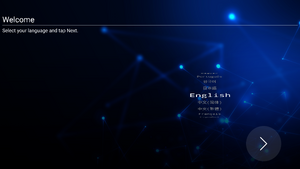

  1. Select your Language.

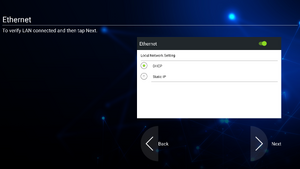

  2. Setup and verify your LAN connection.

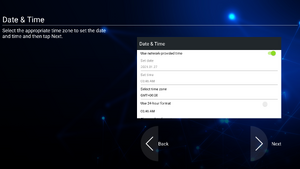

  3. Select your Time Zone to set the Date and Time.

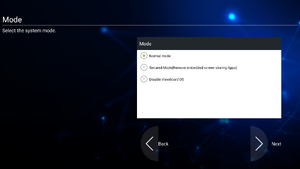

  4. Select your preferred System Mode.

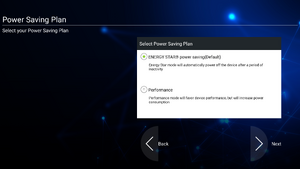

  5. Select your Power Saving plan.

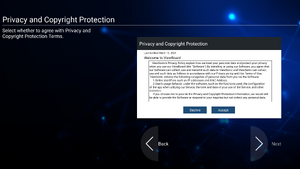

  6. Accept or Decline the Privacy and Copyright Protection Terms.

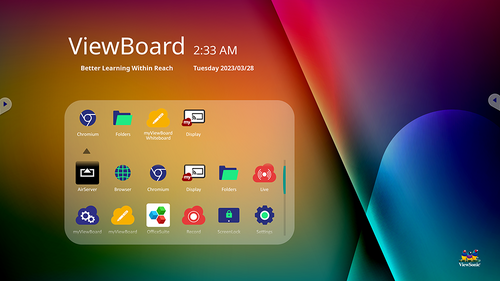

vLauncher - Customizable Welcome Screen

IFP52 Home Screen.png

vLauncher Message

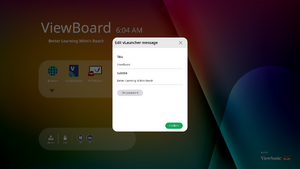

Both the vLauncher Title and Subtitle can be customized by tapping on them. Additionally, a password can be set by tapping on Set Password.

Applications

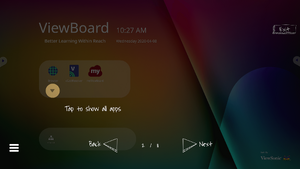

  • Installed applications can all be found on the welcome screen. To view all applications tap on the Down Arrow.

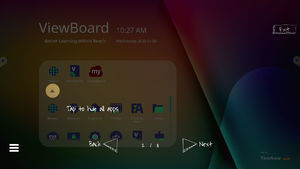

  • To hide the application drawer tap the Up Arrow.

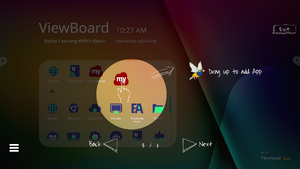

  • To add a shortcut to an application, tap, hold, and drag up the icon.

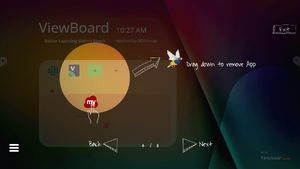

  • To remove an application shortcut, tap, hold, and drag the icon down.

Toolbar

Toolbar trigger icons are on the edge of the ViewBoard launcher providing access to your tools.

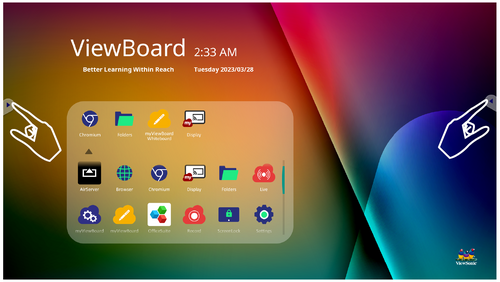

IFP52 Home Toolbar.png

To launch a tool:

  1. Tap a Toolbar trigger icon.
  2. Tap on your desired tool icon.

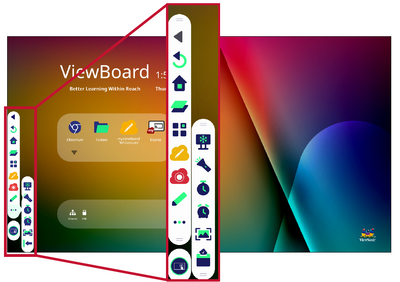

IFP52 Home Toolbar Closeup.png
NOTE: The default toolbar setting is to be available for all input sources; however, users can go to: Settings > Preference > Toolbar setting to adjust the options: (1) available for all input sources, (2) hide the toolbar for all input sources.

Toolbar Icons

Icon Description
IFP52 Icon Return.png
Return to the previous operation screen.
IFP52 Icon Home.png
Return to the Home Screen of the Embedded Player.
IFP52 Icon Recent.png
Display all embedded applications that are currently being used.
IFP52 Icon App.png
View all installed applications.
IFP52 Icon mvb.png
Launch the myViewBoard software.
IFP52 Icon Recorder.png
Record, view, and save the on-screen content.
IFP52 Icon Draw.png
Access the pen, highlighter, clear, and save options.
IFP52 Pen Icon.png
IFP52 Highlighter Icon.png
IFP52 Eraser.png
IFP52 Undo Icon.png
Pen
Highlighter
Eraser
Undo
IFP52 Redo Icon.png
IFP52 Clean Icon.png
IFP52 Save Icon.png
IFP52 Exit Icon.png
Redo
Clean
Save
Exit
Pen
Annotate the overlay of any input source with black, white, yellow, orange, red, pink, green, or blue ink.
Highlighter
Mark and highlight with yellow, grey, gold, orange, red, pink, green or blue ink.
Eraser
Selectively remove the digital ink on the screen.
Undo
Undo the previous action.
Redo
Redo the previous action.
Clean
Clears all the digital ink on the screen.
Save
Save the screen image and any annotations.
Exit
Close the drawing tool.
IFP52 Icon More.png
View more applications within the ViewBoard toolbar.
IFP52 Screen Freeze Icon.png
IFP52 Spotlight Icon.png
IFP52 Stopwatch Icon.png
Screen Freeze
Spotlight
Stopwatch
IFP52 Timer Icon.png
IFP52 Hide Unhide Icon.png
IFP52 Screen Capture Icon.png
Timer
Hide/Unhide
Screen Capture
Screen Freeze
Convert the currently displayed content into a still image; then you can zoom in, zoom out, go back to full screen, and exit.
Spotlight
Highlight the focus content zone. Tap the Setting icon to adjust the spotlight size and alpha blending effect.
Stopwatch
Tapping Start will initiate the stopwatch. At any time, the stopwatch can be paused, resumed, split, or reset.
Timer
Access the countdown timer with an optional alarm setting. Touch and swipe to adjust the numeric values, then click Start. At any time, the countdown timer can be paused, resumed, or reset.
Hide/Unhide
Hide or unhide the Tool bar trigger icons.
Screen Capture
Take a screenshot of the current screen.
IFP52 Icon Settings.png
Access the General Settings.
