IFP52 Introduction

    From ViewSonic User Guide Database

    Package Contents

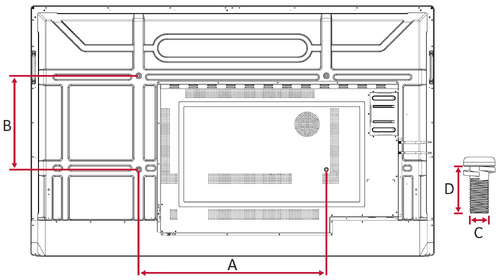

    Wall Mount Kit Specifications (VESA)

    Please follow the instructions in the wall mount installation guide to install your wall mount or mobile mount bracket. If attaching to other building materials, please contact your nearest dealer.

    Wall Mount Kit Specifications
    Model VESA Spec. (A x B) Standard Screw (C x D) Quantity
    IFP6552 600 x 400 mm M8 x 20 mm 4
    IFP7552 800 x 400 mm M8 x 20 mm 4
    IFP8652 800 x 600 mm M8 x 20 mm 4
    Do not use screws that are longer than the standard dimension, as they may cause damage to the inside of the display.

    Product Overview

    Front Panel

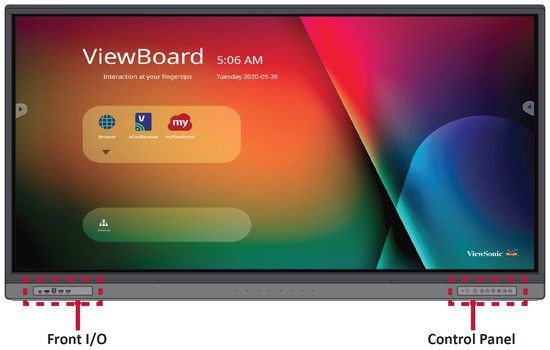

    IFP52 Front Panel

    Rear Panel

    IFP52 Rear Panel

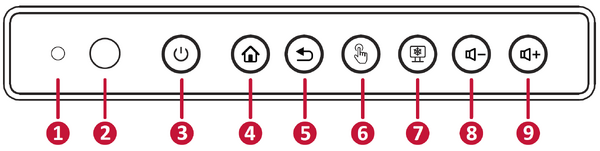

    Control Panel

    IFP52 I/O Panel
    Number Description
    1 Ambient Light Sensor to monitor the ambient light
    2 Remote control receiver
    3
    • Power indicator light
    • Press the key to turn on the device
    • Press the key to turn off/on the display backlight only
    • Press and hold to turn off the device
    4 Back to the ViewBoard player’s main interface
    5 Return to the ViewBoard player’s previous level
    6 Disable/enable the touch screen
    7 Freeze the current image on the screen
    8 Decrease the Volume
    9 Increase the Volume

    I/O Panels

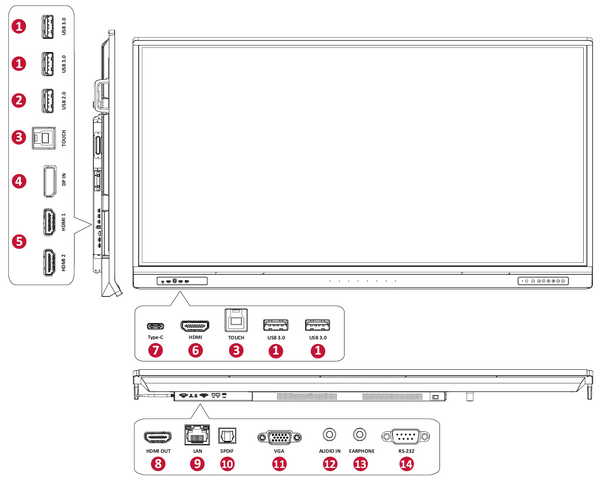

    IFP52 I/O Panel
    Number Port Description
    1 USB 3.0 Connect USB devices such as hard disks, keyboard, mouse, etc. Automatically switches between PC and ViewBoard.
    2 USB 2.0 Connect USB devices such as hard disks, keyboard, mouse, etc. [ 5V dc/0.5A ]
    3 TOUCH
    • Touch signal output to external PC.
    • After connection (with an external PC), the device connected to the USB 3.0 port can directly be used by the external PC.
    4 DisplayPort IN DisplayPort input; connect to PC with DisplayPort output.
    5 HDMI 1/2 High definition input; connect to PC with HDMI output, set-top box, or other video device.
    6 HDMI High definition input; connect to PC with HDMI output, set-top box, or other video device.
    7 USB Type-C USB Type-C input; connect to PC with USB Type-C output.
    8 HDMI OUT Connect to devices with HDMI input function. Supports 1080p and 4K@60Hz.
    9 LAN Standard RJ45 (10M/100M/1000M) Internet connection interface.
    NOTE: This network port is used for the ViewBoard Player, Type-C and slot-in PC.
    10 SPDIF Multichannel sound via optical signals.
    11 VGA External computer video input.
    12 AUDIO IN External computer audio input.
    13 EARPHONE Audio output to an external speaker/headset.
    14 RS-232 Serial interface; used for mutual transfer of data between devices.
