CDE7512 Remote Control

    From ViewSonic User Guide Database

    Remote Control Overview

    Remote Control
    Number Description
    1 Power ON/OFF
    2 Screen capture
    3 Back to the Launcher screen
    4 Back/Return to the previous page
    5 Increase/Decrease the volume
    6 Number Keypad
    7 Information
    8 Input source selection
    9 Media control buttons:

    Red - Play / Pause
    Green - Stop
    Yellow - Forwards
    Blue - Backwards

    10 Settings menu
    11 Up/Down/Right/Left/OK
    12 Freeze Screen
    13 Mute/Unmute
    14 Increase/Decrease Brightness
    15 Blank Screen
    16 Adjust Aspect Ratio

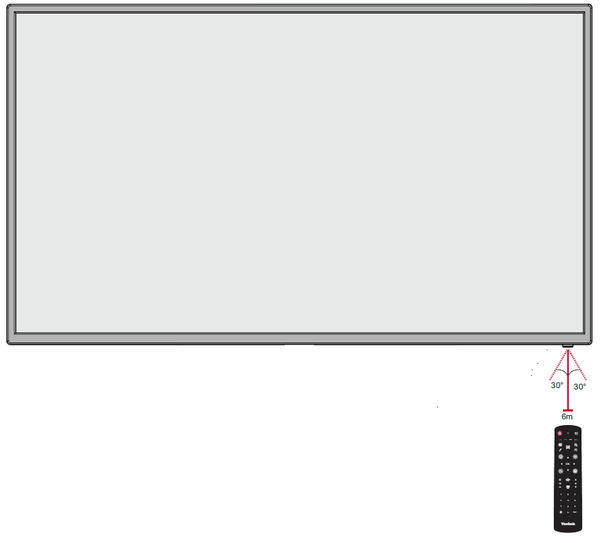

    Remote Control Effective Range

    The working range of the remote control is shown here. It has an effective range of 6 meters, 30° degrees left and right. Ensure there is nothing obstructing the remote control’s signal to the receiver.

    Effective Range of the Remote Control

    Replacing the Batteries of the Remote Control

    1. Remove the cover on the rear of the remote control.
    2. Insert two “AAA” batteries, ensuring the “+” symbol on the battery matches the “+” on the battery post.
    3. Replace the cover by aligning it with the slot on the remote control and snapping the latch shut.
    Replacing the Batteries of the Remote Control
    There is a risk of explosion if batteries are replaced with the incorrect type.
    NOTE:
    • It is recommended that you do not mix battery types.
    • Always dispose of old batteries in an environmentally friendly way. Contact your local government for more information on how to dispose of batteries safely.
