    On-Screen Display (OSD) Menu

    Access Picture, Screen, Audio, Time, Advanced, and About settings.

    Navigating the OSD Menu using the Remote Control

    CDE12 OSD Menu Remote.png
    1. On the remote control, press the Settings button to display the OSD Menu.
    2. Use the directional buttons, ▼/▲/◄/► , to select menu items and adjust values.
    3. Press the Back button to go back to the previous menu.
    4. Press the Settings button again to exit the OSD Menu.

    On-Screen Display (OSD) Menu Tree

    Main Menu Sub-menu
    Picture Brightness
    Contrast
    Sharpness
    Tint
    Color
    Noise Reduction
    Color Temperature
    Picture Mode
    Overscan
    RGB Range
    Blue Light Filter
    Picture Reset
    Screen Zoom Mode
    Screen Reset
    Audio Balance
    Treble
    Bass
    Volume
    Mute
    Volume Control
    Audio Out Sync
    Audio Out Volume (Line Out)
    Audio Reset
    Time Off Time
    Date and Time
    Schedule
    Slide Show Interval
    OSD Turn Off
    OSD Information
    Time Reset
    Advanced Panel Saving
    Power Save
    Power LED Light
    Boot On Source
    Boot On Logo
    Auto Signal Detection
    No Signal Standby
    HDMI with One Wire
    HDMI EDID
    USB Cloning
    USB Auto Play
    Switch On State
    WOL
    Monitor ID
    Language
    Factory Reset
    Advanced Reset
    About Heat Status
    Display Information

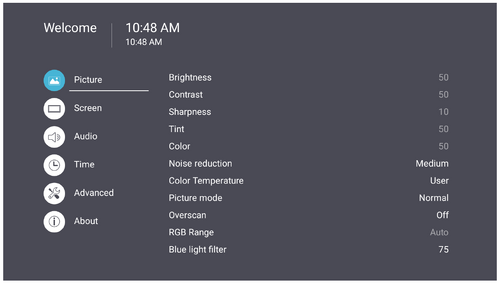

    CDE12 OSD Menu Picture.png
    Item Description
    Brightness Adjust the background black levels of the screen image.
    Contrast Adjust the degree of difference between the lightest and darkest parts of the picture and change the amount of black and white in the image.
    Sharpness Adjust the picture quality.
    Tint Adjust the lightness or darkness of the color shade.
    Color Adjust the amount of color present.
    Noise Reduction Reduce image noise and distortion.
    Color Temperature Adjust the color temperature.
    Picture Mode Select a predefined picture setting.
    Overscan Automatically enlarge the original picture horizontally and vertically to an equal aspect ratio that fills the screen.
    RGB Range Manually change the color format options to fit the correct color format range if the colors are not displayed correctly.
    Blue Light Filter Adjusts the filter that blocks high-energy blue light for a more comfortable viewing experience.
    Picture Reset Reset all Picture menu settings to default.

    Screen

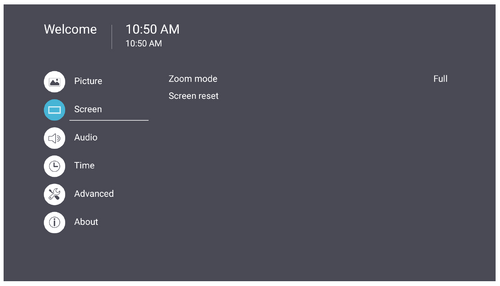

    CDE12 OSD Menu Screen.png
    Item Description
    Zoom Mode Dynamically stretch and scale the image output to a different aspect than that of the image input signal.

    Full
    Restores the correct proportions of pictures transmitted in 16:9 using the full screen display.
    Normal
    The picture is reproduced in 4:3 format and a black band is displayed on either side of the picture.
    Real
    This mode displays the image pixel-by-pixel on screen without scaling the original image size.

    Screen Reset Reset all Screen menu settings to default.

    Audio

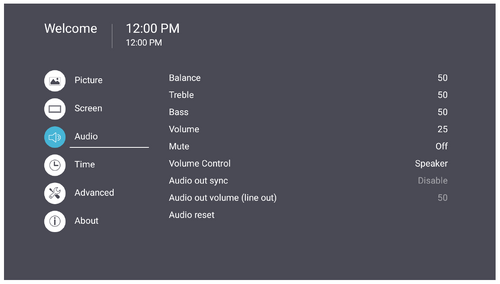

    CDE12 OSD Menu Audio.png
    Item Description
    Balance Adjust the left/right speaker balance.
    Treble Increase/decrease the treble level (higher-pitched sounds).
    Bass Increase/decrease the bass level (lower-pitched sounds).
    Volume Increase/decrease the display’s volume level.
    Mute Mute the volume.
    Volume Control Select audio source from internal speaker or Audio Out port.
    Audio Out Sync Sync Audio Out volume with the display’s speakers.
    Audio Out Volume (Line Out) Increase/decrease the Audio Out volume.
    Audio Reset Reset all Audio menu settings to default.

    Time

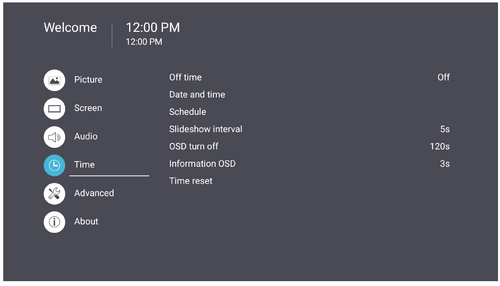

    CDE12 OSD Menu Time.png
    Item Description
    Off Time Set the auto power off time.
    Date and Time Adjust the date and time of the display.
    Schedule Set up to seven (7) different time intervals for the display to be active.
    Slide Show Interval Set the photo slide show interval for USB auto play.
    OSD Turn Off Set the time period the OSD Menu stays on the screen.
    OSD Information Set the time period the OSD information will be displayed in the upper left corner of the display.
    Time Reset Reset all Time menu settings to default.

    Advanced

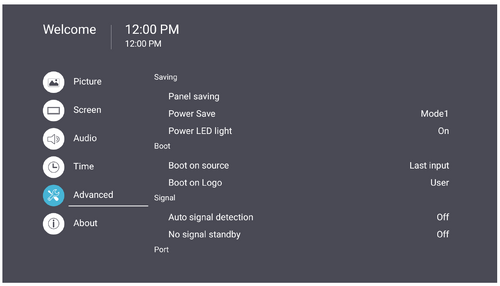

    CDE12 OSD Menu Advanced.png
    Item Description
    Panel Saving Reduces the risk of Image Burn-in when enabled.
    Power Save Reduce power consumption.

    Mode 1
    TCP off, WOL on.
    Mode 2
    TCP off, WOL on, wake up by video signal resume.
    Mode 3
    TCP on, WOL off, wake up by video signal resume.
    Mode 4
    TCP on, WOL off, no wake up by video signal resume support.

    Power LED Light Turn On/Off the Power LED indicator.
    Boot On Source Select the input source after boot up.
    Boot On Logo Enable/Disable a logo when the display is turned on.

    Off
    Neither the ViewSonic nor animation logo will show.
    On
    The ViewSonic logo and animation will show.
    User
    If a custom logo option is set in General Settings, then the custom logo will show. If there is no custom logo set then no logo will show.

    Auto Signal Detection Let the display detect and display available input sources automatically.
    No Signal Standby Set the time period to enter Standby Mode when there is no signal.
    HDMI with One Wire Enable/Disable CEC (Consumer Electronics Control).
    CEC synchronizes power on/off operation via HDMI connection. That is, if a device that also supports CEC is connected to the HDMI input of the display, when the display’s power is turned off, the power of the connected device will also be turned off automatically. When the power of the connected device is turned on, the display’s power will be turned on automatically.
    HDMI EDID Version Select HDMI EDID version: EDID 1.4, EDID 2.0, Auto.
    USB Cloning Save the OSD Menu configuration to the USB storage.
    USB Auto Play If set to ON, the display will copy media files from the external USB storage to the display’s internal storage then play the media files automatically.
    Switch On State Select the display status for the next time the power cord is connected to a power outlet.

    Power Off
    The display will remain off when the power cord is connected.
    Forced On
    The display will turn on when the power cord is connected.
    Last Status
    The display will return to the previous power status.

    WOL Enable/Disable the Wake on LAN (WOL) feature.
    Monitor ID Assign a number to remote control the display by RS-232.
    NOTE: The number range is: 1~98; 99 is reserved for “All Displays”.
    Language Select OSD Menu language.
    Factory Reset Reset all OSD Menu settings to default.
    Advanced Reset Reset all Advanced menu settings to default.

    About

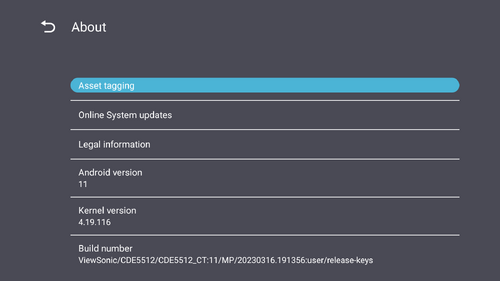

    CDE12 OSD Menu About.png
    Item Description
    Heat Status Check the temperature of the display.
    Display Information See information about the display: Model Name, Serial No., Operation Hours, and Software Version.
