CDE6530 Introduction

    From ViewSonic Online User Guide Database

    Package Contents

    CDE30 Power Cord.png
    CDE30 HDMI Cable.png
    CDE30 Remote Control.png
    CDE30 Battery.png
    Power Cable
    (3m/9.84 ft)
    HDMI Cable
    (3m/9.84 ft)
    Remote Control AAA Battery x 2
    CDE30 RS-232.png
    CDE30 Wall Mount Screw.png
    CDE30 Compliance Statement.png
    CDE30 Quick Start Guide.png
    RS-232 Adapter Wall Mount Screw x 4 Compliance Statement Quick Start Guide
    CDE30 LCD Display.png
    CDE30 USBC.png
    LCD Display USB-C Cable
    (1.8m/5.9 ft)

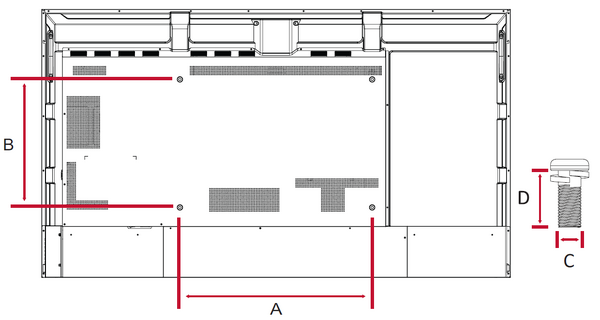

    Wall Mount Kit Specifications (VESA)

    Please follow the instructions in the wall mount installation guide to install your wall mount or mobile mount bracket. If attaching to other building materials, please contact your nearest dealer.

    Wall Mount Kit Specifications
    Model VESA Spec.
    (A x B)
    Standard Screw
    (C x D)
    Quantity
    CDE6530 600 x 400 mm M8 x 25 mm 4
    Do not use screws that are longer than the standard dimension, as they may cause damage to the inside of the display.

    Product Overview

    Front Panel

    CDE6530 Front Panel

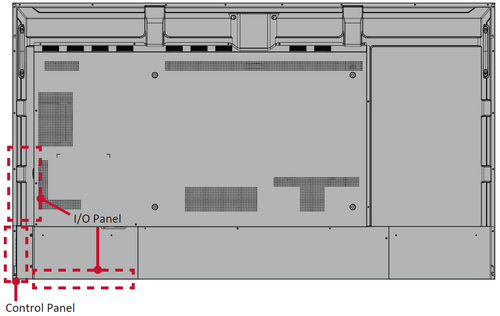

    Rear Panel

    CDE6530 Rear Panel

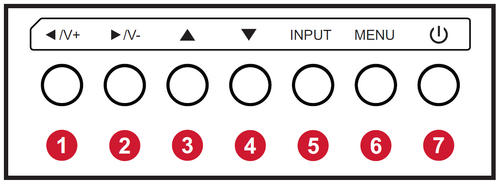

    Control Panel

    CDE6530 Control Panel
    Number Button Description
    1 Left / Volume Increase
    • Increase the volume level.
    • In the OSD Menu, press to adjust the value of the selected item.
    2 Right / Volume Decrease
    • Decrease the volume level.
    • In the OSD Menu, press to adjust the value of the selected item.
    3 Up
    • In the OSD Menu, press to select an item.
    4 Down
    • In the OSD Menu, press to select an item.
    5 Input
    • Press the INPUT key to enter the input source menu, and press the Arrow keys to select the signal source.
    • Confirm an operation under the MENU key operations.
    6 Menu
    • Press the MENU key to enter the main menu.
    • Confirm the operation in the input source menu.
    7 Power
    • Press to turn On/Off the display.

    I/O Panel

    CDE6530 I/O Panel
    Number Port Description
    1 USB 2.0 Connect USB devices such as hard disks, keyboard, mouse, etc. (Output rating: 5Vdc/500mA)
    2 RS-232 Serial interface; used for mutual transfer of data between devices.
    3 USB 3.0 Connect USB devices such as hard disks, keyboard, mouse, etc. (Output rating: 5Vdc/900mA)
    4 USB Type C USB Type C input; connect to a PC with USB Type C output. (Output rating: 20Vdc/3.25A)
    5 HDMI 1 (ARC) High definition input; connect to a PC with HDMI output, set-top box, or other video device.
    6 HDMI 2 High definition input; connect to a PC with HDMI output, set-top box, or other video device.
    7 HDMI OUT Extend content out to another display device.
    8 HDMI 3 High definition input; connect to a PC with HDMI output, set-top box, or other video device.
    9 SPDIF Multichannel sound via optical signals.
    10 LAN Standard RJ45 (10M/100M/1G) Internet connection interface.
    11 Power Switch Turn the device On/Off.
    12 AC IN AC power input.
