    Connecting External Devices and Touch Connection

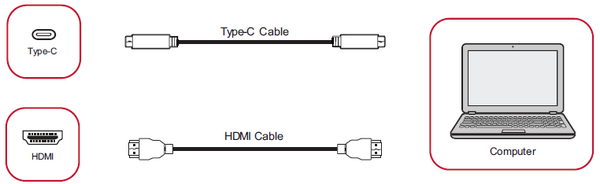

    Connecting External Devices

    USB Type C Connection

    To connect via USB Type C:

    • Connect a USB Type C cable from your external device to the Type C port on the display.

    HDMI Connection

    To connect via HDMI:

    • Connect an HDMI cable from your external device to the HDMI port on the display.

    RS-232 Connection

    RS-232 Connection

    When you use a RS-232 serial port cable to connect your display to an external computer certain functions can be controlled remotely by the PC, including Power On/Off, Volume adjustment, Input select, Brightness, and more.

    USB and Networking Connections

    Just like any PC, it is easy to connect various USB devices and other peripherals to your ViewBoard.

    USB Peripherals

    USB Connection

    Plug the USB device cable into the USB port.

    Networking and Modem cables

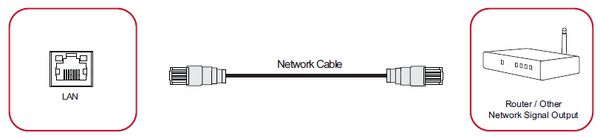

    Network Connection

    Plug the network cable into a LAN port.

    Media Player Connection

    Media Player Connection

    To connect a media player:

    1. Connect an HDMI cable to the HDMI ports on your display and peripheral device.
    2. Plug in the power cord of your display, and turn on the power supply switch.
    3. Press the Power button on the display to turn the screen on.
    4. Press the INPUT button on the remote control and switch to the “HDMI” input source.

    Audio Connection

    Your external audio device(s) can be connected in any of the following configurations:

    SPDIF

    SPDIF Connection

    To connect to an external sound system:

    1. Connect an optical cable from the SPDIF port to your sound system’s optical connector.
    2. Plug in the power cord of your display, and turn on the power supply switch.
    3. Press the Power button on the display to turn the screen on.

    Video Output Connection

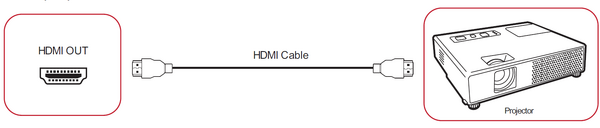

    Video Out Connection

    To output video via an external display device, connect an HDMI cable to the HDMI IN port of your external display device, and the other end to the HDMI OUT port of the display.
