CDE6530 Remote Control

Remote Control Overview

Remote Control

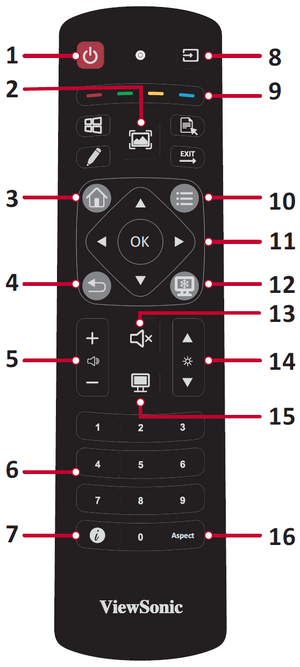

Number	Description
1	Power ON/OFF
2	Screen capture
3	Back to the Launcher screen
4	Back/Return to the previous page
5	Increase/Decrease the volume
6	Number Keypad
7	Information
8	Input source selection
9	Media control buttons: Red - Play / Pause Green - Stop Yellow - Forwards Blue - Backwards
10	Settings menu
11	Up/Down/Right/Left/OK
12	Freeze Screen
13	Mute/Unmute
14	Increase/Decrease Brightness
15	Blank Screen
16	Adjust Aspect Ratio

Remote Control Effective Range

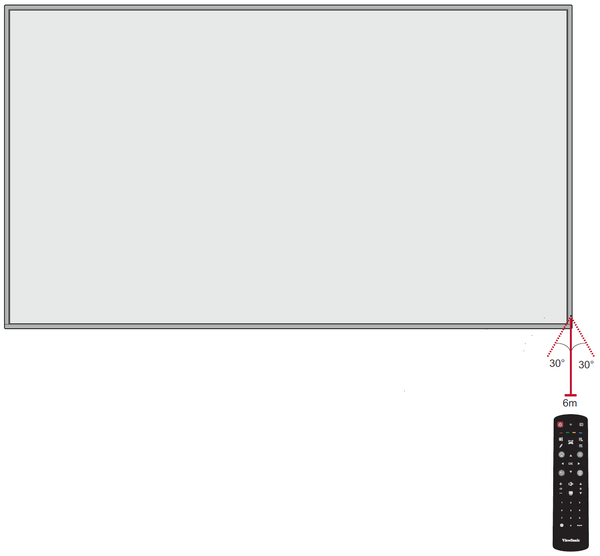

The working range of the remote control is shown here. It has an effective range of 6 meters, 30° degrees left and right. Ensure there is nothing obstructing the remote control’s signal to the receiver.

Replacing the Batteries of the Remote Control

1. Remove the cover on the rear of the remote control.
2. Insert two “AAA” batteries, ensuring the “+” symbol on the battery matches the “+” on the battery post.
3. Replace the cover by aligning it with the slot on the remote control and snapping the latch shut.

There is a risk of explosion if batteries are replaced with the incorrect type.

NOTE:

• It is recommended that you do not mix battery types.
• Always dispose of old batteries in an environmentally friendly way. Contact your local government for more information on how to dispose of batteries safely.
