Turning the Monitor On/Off

VP2786a-4K's Power Button is at the rear of the monitor, below the Joy Key
  1. Plug the connected power adapter into a power outlet.
  2. Press the Power button to turn on the monitor.
  3. To turn the monitor off, press the Power button again.
NOTE:
  • If the OSD Menu is still on screen, press and hold the Power button for three seconds to power off.
  • The monitor will still consume some power as long as the power cord is connected to the power outlet. If the monitor is not being used for a long period of time, please disconnect the power plug from the power outlet.

Using the Joy Key

Use the Joy Key to activate Hot Keys, navigate the On-Screen Display (OSD) Menu, and change settings.

VP2786a-4K's Joy Key is above the Power botton

Startup Menu

Move the Joy Key Move to the left to activate the Startup Menu.

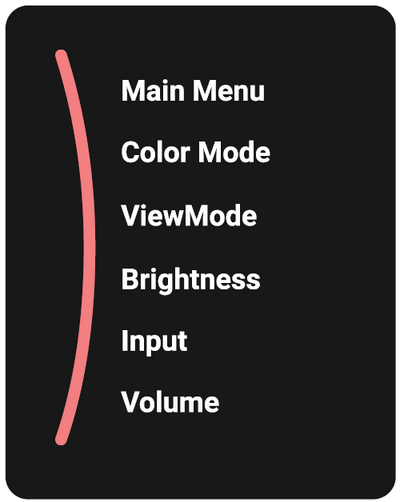

VP2786a-4K's Startup Menu
Note: Follow the key guide that appears on the screen to select the option or make adjustments.

Main Menu

Enter the On-Screen Display (OSD) Menu.

Press the Joy Key to enter the VP2776T-4K's OSD

Color Mode

Select one of the preset standard color settings.

There are ten preset color settings to choose from.

ViewMode

Select one of the preset display settings.

there are eight preset display settings to choose from

Brightness

Adjust the brightness level.

Press Up/Down click of the Joy Key to adjust the Brightness

Input

Select the input source.

There are five inpur sources to choose from

Volume

Adjust the volume settings.

Note: Move the Joy Key Left Click to return to the previous menu.
