    General Operation

    1. Press the 2/3/4/5 key to display the Quick Menu. Then press the 4 key to display the On-Screen Display (OSD) Menu.
      2. On-Screen Display (OSD) Menu

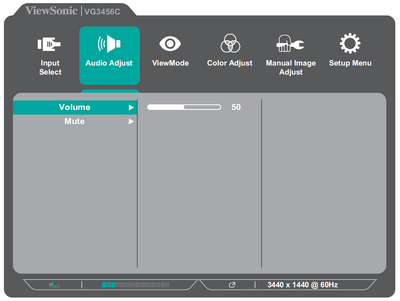

    2. Press the 1 (ViewMode) or 2 key to select the main menu. Then press the 3 key to enter the selected menu.
      3. On-Screen Display (OSD) Menu

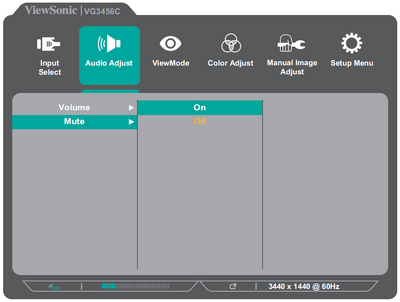

    3. Press the 1 (ViewMode) or 2 key to select the desired menu option. Then press the 3 key to enter the sub-menu.
      4. On-Screen Display (OSD) Menu
    4. Press the 1 (ViewMode) or 2 key to adjust/select the setting. Then press the 3 key to confirm.
      5. On-Screen Display (OSD) Menu

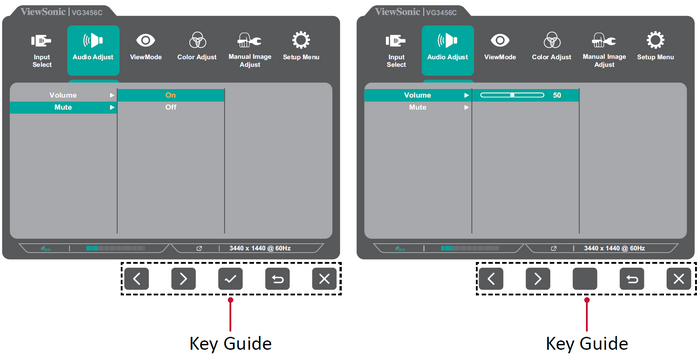

      Note: Certain menu option adjustments do not require the user to press the 3 key to confirm the selection. Follow the key guide that appears on the screen to select the option or make adjustments.
      On-Screen Display (OSD) Menu
    5. Press the 4 key to return to the previous menu.
      6. Note: To exit the OSD Menu, press the 5 key.
