    Connecting to Power

    1. Connect the power cord to the Trolley Cart.
    2. Connect the power cord to a power outlet.
      3. VB-STND-007 Connect Power 1.png
    3. Use the cord clamp to secure the cords in place.

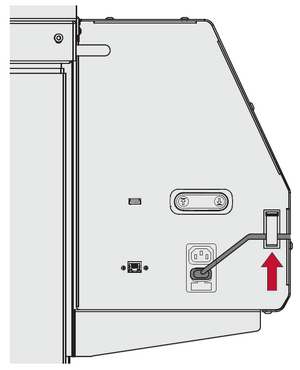

      4. VB-STND-007 Connect Power 2.png

    Connecting to the Control Pad

    Connect the Control Pad to the Trolley Cart via the RJ45 Port.

    Note: The Control Pad has a magnet on the back. The Control Pad can be attached to any metal zone on the Trolley Cart. Make sure the attached area does not obstruct the Lift functions.

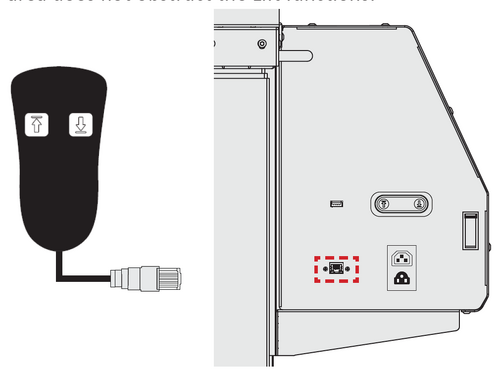

    VB-STND-007 Connect Control Pad.png

    Connecting to the IFP

    1. Connect the IFP to the AC power output of the Trolley Cart.
    2. Connect the USB Type A cord to both the IFP and the Trolley Cart.

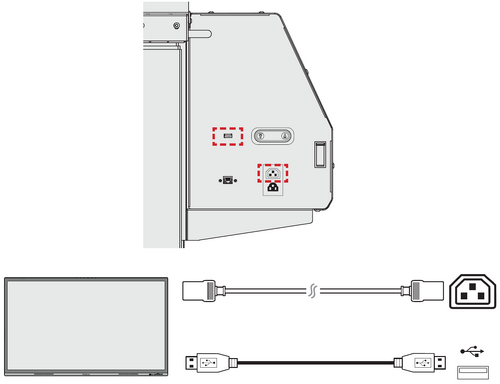

    VB-STND-007 Connect IFP.png
