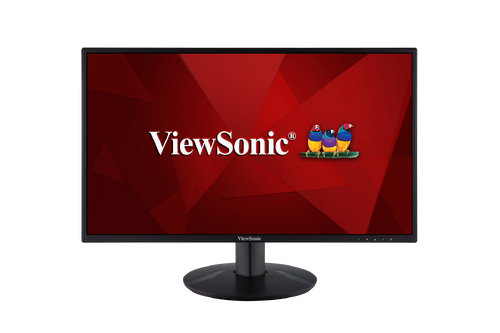

VA2418-smh Specifications

    From ViewSonic User Guide Database

    Technical Specifications

    Model No. P/N
    VS16422 VA2418-smh
    Item Category Specifications
    LCD Type IPS, Color a-Si TFT Active Matrix 1920 x 1080 LCD;

    0.2745 mm x 0.2745 mm pixel pitch

    Display Size 60.4 cm, 24" (23.8" viewable)
    Color Filter RGB vertical stripe
    Glass Surface Hard Coating (3H), Anti-Glare (Haze 25%)
    Input Signal Video Sync Analog:
    D-SUB: fh:24-86 kHz, fv:48-75 Hz

    TMDS digital (100 Ω)

    HDMI: fh:24-86 kHz, fv:48-75 Hz
    Compatibility PC up to 1920 x 1080
    Macintosh up to 1920 x 1080
    Recommended 1920 x 1080 @ 60Hz
    Resolution[1] Supported
    • 1920 x 1080 @ 50, 60, 75Hz
    • 1680 x 1050 @ 60Hz
    • 1600 x 1200 @ 60Hz
    • 1600 x 900 @ 60Hz
    • 1440 x 900 @ 60, 75Hz
    • 1400 x 1050 @ 60, 75Hz
    • 1366 x 768 @ 60Hz
    • 1360 x 768 @ 60Hz
    • 1280 x 1024 @ 60, 75Hz
    • 1280 x 960 @ 60, 75Hz
    • 1280 x 800 @ 60, 75Hz
    • 1280 x 768 @ 60, 75Hz
    • 1280 x 720 @ 50, 60Hz
    • 1152 x 900 @ 66Hz
    • 1152 x 870 @ 75Hz
    • 1152 x 864 @ 75Hz
    • 1024 x 768 @ 60, 70, 72, 75Hz
    • 832 x 624 @ 75Hz
    • 800 x 600 @ 56, 60, 72, 75Hz
    • 720 x 576 @ 50Hz
    • 720 x 480 @ 60Hz
    • 720 x 400 @ 70Hz
    • 640 x 480 @ 50, 60, 66, 72, 75Hz
    • 640 x 400 @ 60, 70Hz
    • 640 x 350 @ 70Hz
    Power Adapter[2] Input Voltage AC 100-240V, 50/60Hz (auto switch)
    Display Area Full Scan

    (H x V)

    527.04 x 296.46 mm

    (20.75” x 11.67”)

    Operating Conditons Temperature 0° C to 40° C (32° F to 104° F)
    Humidity 20% to 90% (non-condensing)
    Altitude 16,404 feet (4.9 km)
    Storage Conditions Temperature -20° C to 60° C (-4° F to 140° F)
    Humidity 5% to 90% (non-condensing)
    Altitude 40, 000 feet (12.1 km)
    Dimensions Physical

    (W x H x D)

    547.8 x 404 x 217.8 mm

    (21.6” x 15.9” x 8.6”)

    Wall Mount Dimensions 100 x 100 mm
    Weight Physical 3.6 kg (7.9 lbs)
    Power Saving Modes On[3] 26W (Typical)
    Off < 0.3W
    1. Do not set the graphics card in your computer to exceed these timing modes; doing so may result in permanent damage to the display.
    2. Please use the power adapter from ViewSonic® or an authorized source only.
    3. The test condition follows EEI standards.
