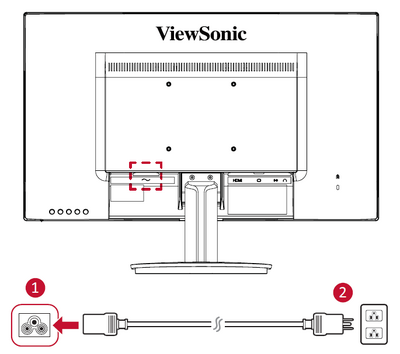

    Connecting to Power

    1. Connect the power cord to the AC IN jack at the rear of the device.
    2. Connect the power cord plug to a power outlet.
    VA2418-smh Connect Power.png

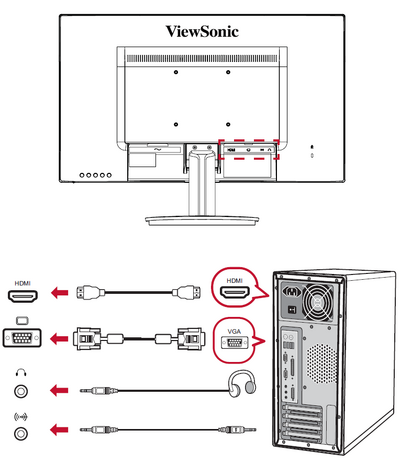

    Connecting External Devices

    VA2418-smh External Connections.png
    Note: To connect the monitor to an external device (PC, laptop…etc.), please use one of the included video cables for your application and connect it to both terminals.
