TD1655 Connecting Power and Devices

Connecting to Power

The monitor can be powered in any of the following configurations:

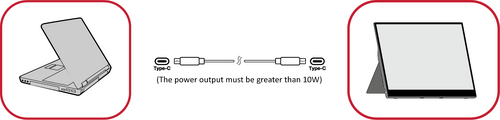

• Type C Connection

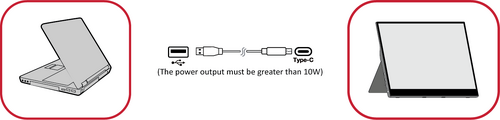

• Type A Connection

• Power Adapter

Connecting External Devices and Touch Connection

Your external device(s) can be connected in any of the following configurations:

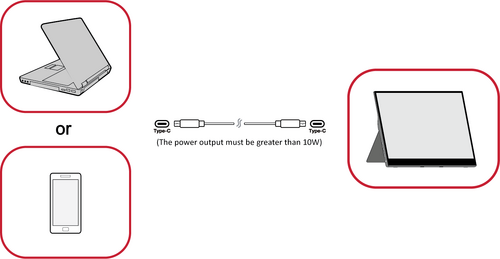

• Type C Connection

Connect a Type C cable from your external device to a Type C port on the monitor.

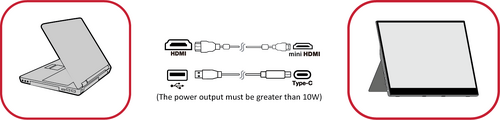

• Mini HDMI Connection

1. Connect the mini HDMI cable from your external device to the mini HDMI port on the monitor.
2. Connect the USB Type A to Type C cable from your external device to the monitor to enable touch controls.

NOTE: The USB Type A to Type C connection will also supply power to the monitor from the notebook. The power output must be greater than 10W.

Touch Function Control

When using the touch function, please note:

• The touch function may need about five (5) seconds to resume if the USB cable is removed and plugged in again, or the computer resumes from Sleep Mode.
• The touchscreen can only detect up to ten (10) fingers simultaneously.
• If the Windows’ cursor does not accurately follow your finger when you touch the screen, do the following:

1. Open: Control Panel > Hardware and Sound > Tablet PC Settings
2. Select Calibration.
3. Follow the instructions to recalibrate your screen.

Power Delivery

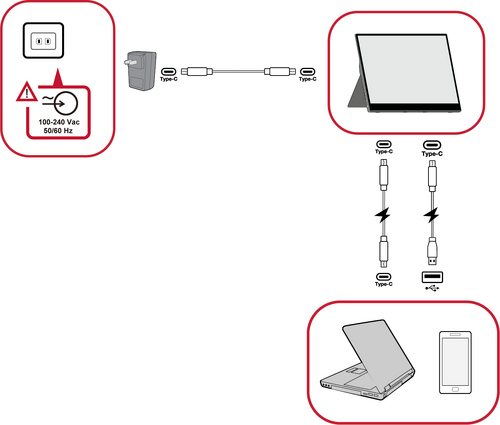

Powering a Notebook or Mobile Phone

If the included power adapter is connected to the monitor, then the monitor can charge a connected notebook or mobile phone.

Power Delivery Output: DC 5V/9V/12V/15V/20V/Max 3A.

Power Supply Detection

This product will detect if the power supply device is an adapter, laptop or mobile phone.

• If the power source is an adapter or notebook, the default brightness value will be 100.
• If the power source is a mobile phone, the default brightness value will be 15.
• When using a mobile phone to power the monitor, the default brightness level will be 15.

NOTE: Due to the limited power output of the mobile phone, do not adjust the brightness level higher as this may cause the display to flash or shut down.

Power Delivery - Further Information

Due to the TD1655’s design please note:

• The first connected device will be the main input signal.
• When a Type C port recognizes an external device as a power adapter, it will only distribute the power. It will NOT display the input signal.
• Only when one of the Type C ports is recognized as a power adapter can the other one deliver two-way power.

If a laptop is connected first to the TD1655, then a mobile phone is connected second, the mobile phone’s battery will not be charged as neither Type C port recognizes the connection as being connected to a power adapter.

NOTE: If you want to display the mobile phone’s screen, you must unplug the Type C cable connected to the laptop.

If a mobile phone is connected first to the TD1655, then a laptop is connected second, the mobile phone’s battery will be charged as one of the Type C ports is recognized as being connected to a power adapter.

NOTE: If you want to display the laptop screen, you must unplug the Type C cable connected to the mobile phone.
