Using the Control Panel Joy Key

Use the control panel joy key to access the Quick Menu, activate Hot Keys, navigate the On-Screen Display (OSD) Menu, and change the settings.

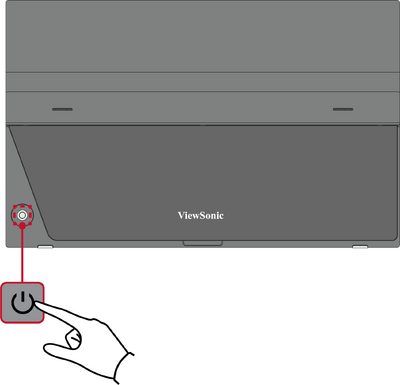

Turning the Device On/Off

1. Connect to a power source in one of the available configurations.
2. Press the Middle [●] button to turn on the monitor.
3. To turn the monitor off, press the Middle [●] button again.

NOTE: The monitor will still consume some power as long as the power cord is connected to the power outlet. If the monitor is not being used for a long period of time, please disconnect from the power outlet.

Quick Menu

Move the joy key [▲], [▼], [◄], [►] to activate the Quick Menu.

NOTE: Follow the key guide that appears on the screen to select the option or make adjustments.

Menu	Description
ViewMode	Select one of the preset color settings.
Contrast/Brightness	Adjust the contrast or brightness level.
Input Select	Select the input source.
Main Menu	Enter the On-Screen Display (OSD) Menu.
Exit	Exit the Quick Menu.
