PD2211 PD2211T Initial Setup
Wall Mounting
Refer to the table below for the standard dimensions for wall mount kits.
- Note: For use only with a UL certified wall mount kit/bracket. To obtain a wall-mounting kit or height adjustment base, contact ViewSonic® or your local dealer.
| Maximum Loading | Hole Pattern (W x H) | Interface Pad (W x H x D) | Pad Hole | Screw Specification & Quantity |
|---|---|---|---|---|
| 14 kg | 100 x 100 mm | 115 x 115 x 2.6 mm | Ø 5 mm | M4 x 10 mm - 4 pieces |
- Turn off the device and disconnect all cables.
- Turn off the device and disconnect all cables.
- Place the device on a flat, stable surface with the screen facing down.

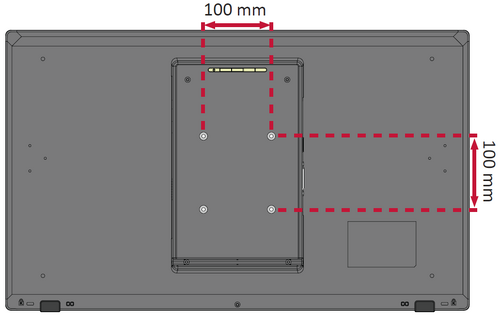

- Attach the mounting bracket to the VESA mounting holes at the rear of the monitor. Then secure it with four (4) screws (M4 x 10 mm).
- Follow the instructions that come with the wall mounting kit to mount the monitor onto the wall.
Turning the Device On/Off
- Plug the power cord into a power outlet.

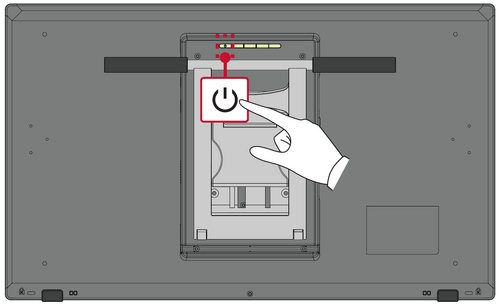

- Press the Power key to turn on the display.
- To turn the display off, press the Power key again.
- Note: The display will still consume some power as long as the power cord is connected to the power outlet. If the display is not being used for a long period of time, please disconnect the power plug from the power outlet.
