M1 Remote Control

From ViewSonic User Guide Database
Jump to navigation Jump to search

Overview

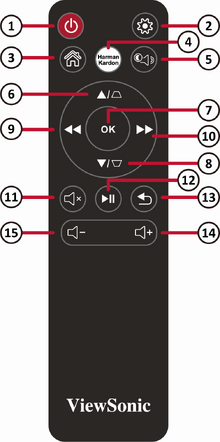

Remote Control
Number Button
1 Power
2 Settings
3 Home
4 Harman Kardon Settings
5 Music Mode[1]
6 Up / Keystone
7 OK
8 Down / Keystone
9 Left / Backward
10 Right / Forward
11 Mute
12 Play / Pause
13 Return
14 Volume Up
15 Volume Down
  1. Blank the projection image and focus on the music.

Effective Range

To ensure proper function of the remote control follow the steps below:

  1. The remote control must be held at an angle within 30° perpendicular to the projector’s IR remote control sensor(s).
  2. The distance between the remote control and the sensor(s) should not exceed 8 m (26 ft.)

Replacing the Batteries

  1. To open the battery cover, turn the remote control over to view its back, open the cover in the direction of the arrow.
  2. Remove any existing batteries (if necessary) and install two AAA batteries observing the battery polarities as indicated in the base of the battery compartment. Positive (+) goes to positive and negative (-) goes to negative.
  3. Refit the cover by aligning it with the base and pushing it back down into position. Stop when it clicks into place.
NOTE:
  • Avoid leaving the remote control and batteries in excessive heat or a humid environment.
  • Replace only with the same or equivalent type recommended by the battery manufacturer.
  • If the battery is drained or if you will not be using the remote control for an extended period of time, remove the battery to avoid damage to the remote control.
  • Dispose of used batteries according to the manufacturer’s instructions and local environment regulations for your region.
