Technical Specifications

Item Category Specifications
Model P/N. LS710HD
No. VS19338
Projector Type Laser
Display Size 40”~300”
Brightness (Lumens) 4200 ANSI
Throw Ratio 0.49±3%
(100”@1.08m)
Optical Zoom Fixed
Display System 1-CHIP DMD
Input Signal HDMI fh: 15~102 kHz, fv:23~120 Hz, Pixel rate: 170 MHz
Resolution Native 1920 x 1080
Power Input Voltage DC IN 100-240V, 50/60 Hz (auto switch)
Operating Conditions Temperature 0°C to 40°C (32°F to 104°F)
Humidity 10% to 80% (non-condensing)
Altitude 0 to 2,500 ft. at 0°C to 40°C
2,500 to 5,000 ft. at 0°C to 35°C
5,000 to 12,000 ft. at 0°C to 30°C
Storage Conditions Temperature -10°C to 60°C (14°F to 140°F)
Humidity 10% to 90% (non-condensing)
Altitude 0 to 12.1 km (0 to 40,000 ft.)
Dimensions Physical
(W x H x D) 		337 x 265 x 131.5 mm
(13.27” x 10.43” x 5.18”)
Weight Physical 4.5 kg (9.92 lbs)
Power Consumption On[1] 245W (Typical)
Off < 0.5W (Standby)
  1. ↑ The test condition follows EEI standards.

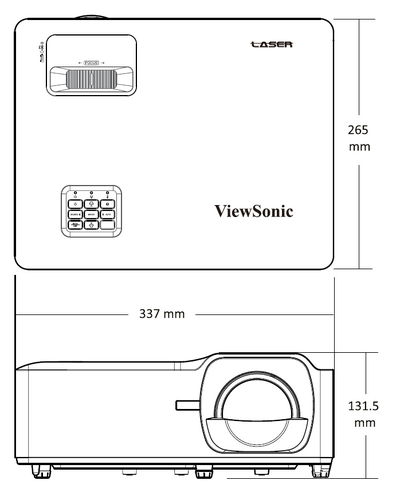

Projector Dimensions

337 mm (W) x 131.5 mm (H) x 265 mm (D)

Timing Chart

HDMI Video Timing

Timing Resolution (dots) Refresh Rate (Hz)
SDTV (480p) 720 x 480 60
SDTV (576i) 720 x 576 50
SDTV (576p) 720 x 576 50
HDTV (720p) 1280 x 720 50/60
HDTV (1080p)[1] 1920 x 1080 24/30/50/60
HDTV (1080i)[1] 1920 x 1080 50/60
  1. ↑ 1.0 1.1 Mac 60

HDMI PC Timing

Signal Resolution (dots) Refresh Rate (Hz) Note for Mac
VGA 640 x 480 60/120 Mac 60/72/85
SVGA 800 x 600 60/72/85/120 Mac 60/72/85
XGA 1024 x 768 50/60/70/75/85/120 Mac 60/70/75/85
480i 720 x 480 60
WSVGA 1024 x 600 60
WXGA 1280 x 768 60/75/85 Mac 75
WXGA 1280 x 800 60/120 Mac 60
WXGA 1366 x 768 60
WXGA+ 1440 x 900 60
SXGA 1280 x 1024 60/75/85 Mac 60/75
SXGA+ 1400 x 1050 60
UXGA 1600 x 1200 60
WUXGA 1920 x 1200[1] 60 Mac 60
UHD (2160p) 3840 x 2160 24[2]/25[2]/30[2]/50/60
4K2K (2160p) 4096 x 2160 24[2]/25/50/60
  1. ↑ 1920 x 1200 @ 60Hz only supports RB (Reduced Blanking)
  2. ↑ 2.0 2.1 2.2 2.3 HDMI 1 UHD/4K2K timing support only

3D Support Timing

Signal Resolution Refresh Rate (Hz) Format Note
720p 1280 x 720p 50/60 Top and Bottom with 3D InfoFrame information
1280 x 720p 50/60 Frame Packing
1080i 1920 x 1080i 50/60 Side by Side (Half)
1080p 1920 x 1080p 24 Top and Bottom
1920 x 1080p 24 Frame Packing
720p 1280 x 720p 50/60 Side by Side (Half) SBS mode is ON without 3D InfoFrame information
1080i 1920 x 1080i 50/60 Side by Side (Half) SBS mode is ON
720p 1280 x 720p 50/60 Top and Bottom TAB mode is ON without 3D InfoFrame information
1080i 1920 x 1080i 50/60 Top and Bottom TAB mode is ON
NOTE:
  • 1080i@25hz and 720p@50hz will run in 100 Hz; other 3D timing will run in 120 Hz.
  • 1080P@24hz will run 144Hz (XGA, WXGA, 1080p)/96Hz (WUXGA).
  • If the input frame rate is 48 Hz or greater, the output frame rate is set to twice the input frame rate (FRC = 2X mode).
  • If the 3D input frame rate is 25Hz or greater, the output frame rate is set to four times the input frame rate (FRC = 4X mode).
  • If the 3D input frame rate is 24Hz (includes 23.9Hz), the output frame rate is set to six times the input frame rate (FRC = 6X mode).
