    ID1230 Pen Input Area Mapping
    Introduction
    Making Connections
    Driver Installation, Use, and Removal
    Setting the Display Area
    Pen Input Area Mapping
    Using the Pen Display
    Specifications
    Regulatory and Service Information
    Safety Precautions
    Troubleshooting
    Maintenance

    Pen Input Settings (Windows)

    To adjust the pen input settings:

    1. Open ViewSonic Pen Manager either by going to: Start > ViewSonic Pen Manager or selecting the ViewSonic Pen Manager icon from the System Tray.
      2. ID1230 Pen Input Start.png

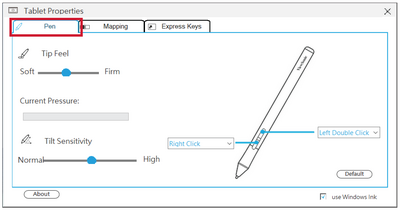

    2. Adjustments to the pen can be made by selecting the Pen tab.
      3. ID1230 Pen Display Manager Pen.png

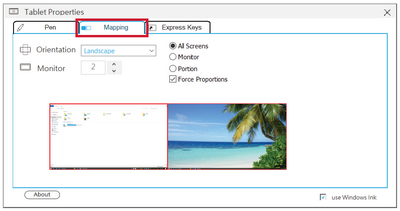

    3. Select the Mapping tab to adjust screen orientation and display.
      4. ID1230 Pen Display Manager Mapping.png
    4. Select the Express Keys tab to customize the six (6) express keys on the pen display.
      5. ID1230 Pen Display Manager Express Keys.png

    Pen Input Settings (macOS)

    To adjust the pen input settings:

    1. Open ViewSonic Pen Manager by going to: System Settings > ViewSonic Pen Manager
    2. Adjustments to the pen can be made by selecting the Pen tab.
      3. ID1230 Pen Display Manager Pen Mac.png
    3. Select the Mapping tab to adjust screen orientation and display format.
      4. ID1230 Pen Display Manager Mapping Mac.png
    4. Select the Express Keys tab to customize the six (6) express keys on the pen display.
      5. ID1230 Pen Display Manager Express Keys Mac.png
