| Sub-menu | Menu Option |
|---|---|
| Brightness | (-/+, 0~100) |
| Contrast | (-/+, 0~100) |
ID1230 Using the Pen Display

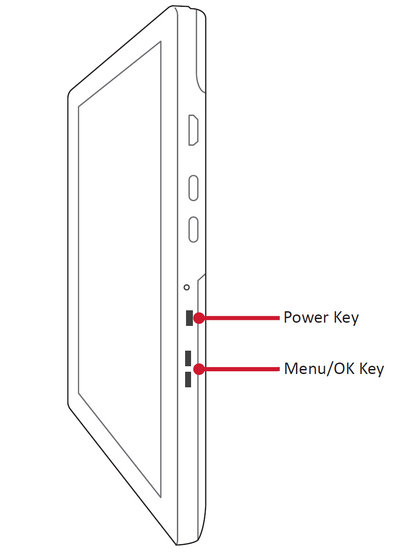

Turning the Device On/Off
- Ensure the display is connected properly to the computer.
- Press the Power key to turn on the display.
- To turn the display off, press the Power key again.
- NOTE: The display will still consume some power as long as it is connected. If the display is not being used for a long period of time, please disconnect it.

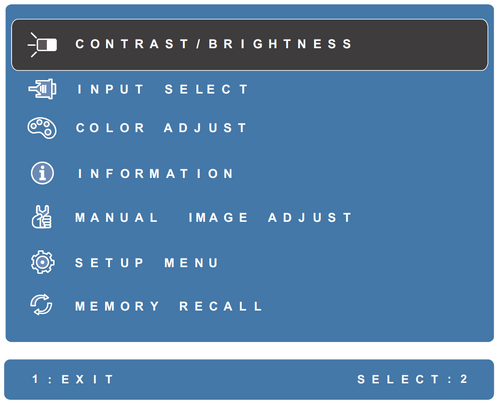

On-Screen Display (OSD) Menu
Press the Menu key to activate the On-Screen Display (OSD) Menu.
| Menu | Description |
|---|---|
| Contrast/Brightness | Adjust the contrast or brightness level. |
| Input Select | Select the input source. |
| Color Adjust | Select one of the preset color settings. |
| Information | Displays the timing mode coming from the graphics card in the computer, the LCD model number, the serial number, and the ViewSonic® website URL. |
| Manual Image Adjust | Manually set a variety of image quality adjustments. |
| Setup Menu | Adjust On-Screen Display (OSD) settings. |
| Memory Recall | Returns the adjustments back to factory settings. |
Configuring the Settings
General Operations
- Press the Menu key to display the On-Screen Display (OSD) Menu.
- Press the ▼ or ▲ key to select the main menu. Then press the Menu key to enter the selected menu.
- Press the ▼ or ▲ key to select the desired menu option. Then press the Menu key to enter the sub-menu.
- Press the ▼ or ▲ key to adjust/select the setting. Then press the Menu key to confirm.
- NOTE: Certain menu option adjustments do not require the user to press the Menu key to confirm the selection.
On-Screen Display (OSD) Menu Tree
| Sub-menu |
|---|
| HDMI |
| Type C |
| Sub-menu | Menu Option | |
|---|---|---|
| sRGB | ||
| Bluish | ||
| Cool | ||
| Native | ||
| Warm | ||
| User Color | Red | (-/+, 0~100) |
| Green | (-/+, 0~100) | |
| Blue | (-/+, 0~100) | |
| Sub-menu | Menu Option |
|---|---|
| Sharpness | (-/+, 0~100) |
| Dynamic Contrast | On |
| Off | |
| Response Time | Standard |
| Advanced | |
| Ultra Fast | |
| Aspect Ratio | 4:3 |
| Full Screen | |
| Overscan | On |
| Off | |
| Eco Mode | Standard |
| Optimize | |
| Conserve | |
| ViewMode | |
| Blue Light Filter | (-/+, 0~100) |
| Sub-menu | Menu Option | |
|---|---|---|
| Language Select | English | |
| Français | ||
| Deutsch | ||
| Español | ||
| Italiano | ||
| Suomi | ||
| Русский | ||
| Türkçe | ||
| 日本語 | ||
| 한국어 | ||
| 繁體中文 | ||
| 简体中文 | ||
| Česká | ||
| Svenska | ||
| Resolution Notice | On | |
| Off | ||
| OSD Position | H. Position | (-/+, 0~100) |
| V. Position | (-/+, 0~100) | |
| OSD Timeout | (-/+, 5/15/30/60) | |
| OSD Background | On | |
| Off | ||
| Auto Power Off | On | |
| Off | ||
| Sleep | 30 minutes | |
| 45 minutes | ||
| 60 minutes | ||
| 120 minutes | ||
| Power Indicator | On | |
| Off | ||
