PD1631 PD1631T Introduction
Introduction
Making Connections
Adjusting the Viewing Angle
Using the Display
Setting the Display Area
Pen Input Area Mapping
Specifications
Regulatory and Service Information
Safety Precautions
Troubleshooting
Maintenance

Package Contents
Pen Display Mini HDMI 3 in 1 cable Pen Replacement Pen nib x 3
Pen Tether Nib removal tool Screwdriver AC/DC Power Adapter 5V/2A
Quick Start Guide

Front View / Rear View

  • Front View
    Front View
  • Rear View

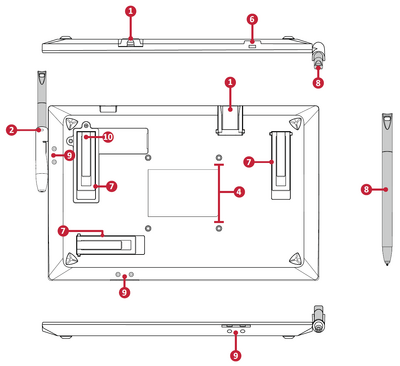

    Rear View
Number Item
1 Mini HDMI Port
2 Pen Tether Anchor Point
3 Pen Holder
4 Wall Mounting Points
5 Display Screen / Touch Screen (PD1233T only)
6 Security Lock Slot
7 Adjustable Stand Leg
8 Pen
9 Pen Holder Attachment Point
10 Repositionable Leg
