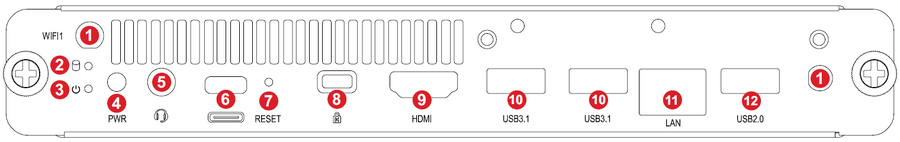

Product Overview
| Number
|
Item
|
Description
|
| 1
|
Antenna
|
Wi-Fi antenna interface
|
| 2
|
Status LED
|
Status indicator light (Green)
| Mode
|
Description
|
| Off
|
Indicator light is off
|
| On
|
Green indicator light is flashing
|
|
| 3
|
Power LED
|
Power indicator light (Red)
| Mode
|
Description
|
| Off
|
Indicator light is off
|
| On
|
Red indicator light is always on
|
|
| 4
|
Power Button
|
Turn the slot-in PC on/off
|
| 5
|
LINE-OUT
|
Audio out for connected ear-/headphones or speakers
|
| 6
|
USB Type C
|
USB Type C input (Data only; 5V/0.9A charging)
|
| 7
|
RESET
|
Reset button
|
| 8
|
Security Lock
|
Anti-theft security lock
|
| 9
|
HDMI
|
Extend content out to another display device
|
| 10
|
USB 3.1
|
USB 3.1 port
|
| 11
|
LAN
|
Standard RJ45 (10M/100M/1G) internet connection port
- NOTE: This network port is only used for PC.
|
| 12
|
USB 2.0
|
USB 2.0 port
|
