    VPCF5 Initial Setup
    Introduction
    Initial Setup
    Making Connections
    Using the Device
    Appendix
    Regulatory and Service Information

    Installing the VPCF5

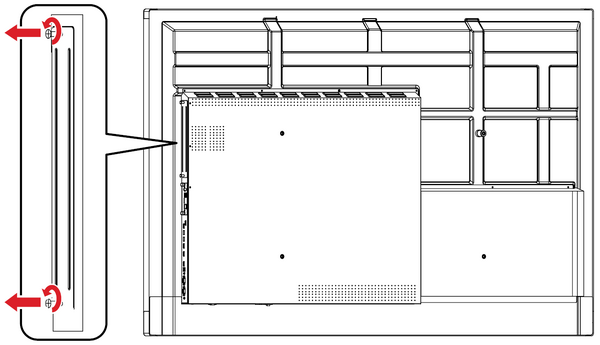

    1. Remove the slot-in PC cover of the display.
      2. VPCF5 Installation

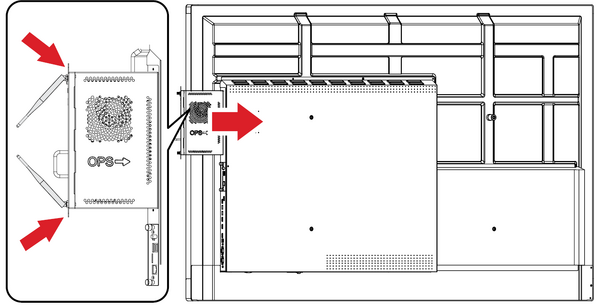

    2. Using the handle of the VPCF5, carefully insert it into the PC slot of the display.
      3. VPCF5 Installation
    3. Secure the VPCF5 to the display with the two (2) included screws.
      4. NOTE:
      • Please note that the antennas must be installed on the VPCF5.
      • Please pay attention to the installation direction of the VPCF5, with the vents facing outwards to avoid damage.
      • The VPC products do not support hot swapping. When removing or installing the device, turn off the power supply for both the display and VPC product first.
