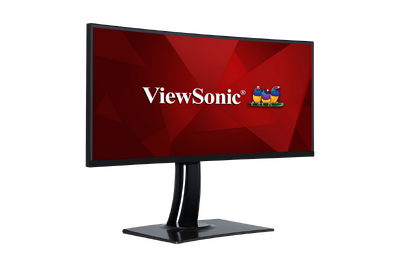

VP3881a Specifications

Technical Specifications

Model No.	P/N
VS16980	VP3881a

Item	Category	Specifications
LCD	Type	IPS type, a-Si TFT Active Matrix 3840 x 1600 LCD, 0.22908 mm x 0.22908 mm pixel pitch
	Display Size	96.52 cm, 38"
	Color Filter	RGB vertical stripe
	Glass Surface	Anti-Glare (Haze 25%), Hard Coating (3H)
Input Signal	Video Sync	TMDS digital (100 Ω) HDMI (v. 2.0): fh:15-135 kHz, fv:24-75 Hz DisplayPort (v. 1.2a): fh:15-135 kHz, fv:24-75 Hz Type C: fh:15-135 kHz, fv:24-75 Hz
Compatibility	PC	up to 3840 x 1600
	Macintosh	up to 3840 x 1600
	Recommended	3840 x 1600 @ 60Hz
Resolution^[1]	Supported	3840 x 2160 @ 24, 25, 30, 50, 60Hz 3840 x 1600 @ 60Hz 3840 x 1080 @ 60Hz 2560 x 1440 @ 60Hz 2560 x 1080 @ 24, 25, 30, 50, 60Hz 2048 x 1152 @ 60Hz 1920 x 2160 @ 60Hz 1920 x 1600 @ 60Hz 1920 x 1440 @ 60Hz 1920 x 1200 @ 60Hz 1920 x 1080 @ 24, 25, 30, 50, 60Hz 1680 x 1050 @ 60Hz 1600 x 1200 @ 60Hz 1600 x 900 @ 60Hz 1440 x 900 @ 60, 75Hz 1400 x 1050 @ 60, 75Hz 1366 x 768 @ 60Hz 1360 x 768 @ 60Hz 1280 x 1024 @ 50, 60, 75Hz 1280 x 960 @ 50, 60, 75Hz 1280 x 800 @ 60Hz 1280 x 768 @ 50, 60Hz 1280 x 720 @ 24, 25, 30, 50, 60Hz 1152 x 900 @ 67Hz 1152 x 864 @ 75Hz 1024 x 768 @ 50, 60, 70, 72Hz 848 x 480 @ 60Hz 800 x 600 @ 56, 60, 72Hz 720 x 576 @ 50Hz 720 x 480 @ 60Hz 720 x 400 @ 70Hz 640 x 480 @ 50, 60, 67, 72Hz 640 x 400 @ 60, 70Hz 640 x 350 @ 70Hz
Power Adapter^[2]	Input Voltage	AC 100-240V, 50/60Hz (auto switch)
Display Area	Full Scan (H x V)	879.67 x 366.53 mm (34.63” x 14.43”)
Operating Conditons	Temperature	0° C to 40° C (32° F to 104° F)
	Humidity	20% to 90% (non-condensing)
	Altitude	16,404 feet (4.9 km)
Storage Conditions	Temperature	-20° C to 60° C (-4° F to 140° F)
	Humidity	5% to 90% (non-condensing)
	Altitude	40, 000 feet (12.1 km)
Dimensions	Physical (W x H x D)	896 x 398 x 103.14 mm (35.28” x 24.77” x 11.76”)
Wall Mount	Dimensions	100 x 100 mm
Weight	Physical	12.58 kg (27.73 lbs)
Power Saving Modes	On^[3]	52W (Typical) without USB Audio PD DP 203W (Typical) with Full Load
Power Saving Modes	Off	≤ 0.3W (Max)

↑ Do not set the graphics card in your computer to exceed these timing modes; doing so may result in permanent damage to the display.
↑ Please use the power adapter from ViewSonic® or an authorized source only.
↑ The test condition follows EEI standards.

Product Upgradeability and Repairability

The following is a list of hardware features available for at least 5 years after the sale of the product.	Upgradable	Repairable	Replaceable
Main Processor(s) or SOC	No	No	Yes
Memory	N/A	N/A	N/A
HDD	N/A	N/A	N/A
Wireless Network Capability	N/A	N/A	N/A
Graphics Card	N/A	N/A	N/A
Rechargeable Battery	N/A	N/A	N/A
Fan Assembly	N/A	N/A	N/A
Camera	N/A	N/A	N/A
Fingerprint Reader	N/A	N/A	N/A
Display Assembly	No	No	Yes
Keyboard	N/A	N/A	N/A
Internal Power Supply	No	No	Yes

NOTE: N/A = Not applicable for the product.

[1] Do not set the graphics card in your computer to exceed these timing modes; doing so may result in permanent damage to the display.

[2] Please use the power adapter from ViewSonic® or an authorized source only.

[3] The test condition follows EEI standards.
