VP3456a Advanced Features and Settings

    From ViewSonic User Guide Database

    Colorbration+

    To ensure long-term color accuracy, some specific models support the hardware color calibration function. The Colorbration+ application installation file can be found at: http://color.viewsonic.com/support/software/.

    Standard monitor packing does not include the color sensor, which the Colorbration+ application needs for the calibration process.

    Compatible color sensors include:

    • X-Rite i1 Display Pro
    • X-Rite i1 Pro 2
    • X-Rite i1 Studio
    • Xrite Colormunki Photo
    • Xrite Colormunki Design
    • Datacolor Spyder 5
    • Datacolor SpyderX series

    Colorblindness Mode

    Through the vDisplayManager software, this display supports two Color Blindness modes:

    • Color Filter

    Users who are color blind can activate the Color Filter feature to better see on-screen details.

    VP Color Blindness Mode 1.png

    NOTE: The vDisplayManager software can be downloaded at: https://color.viewsonic.com/support/software/

    Firmware Update

    For the best display performance and to resolve any known issues, it is best to keep your monitor updated with the latest firmware version. With the supplied USB cable and the vDisplayManager application, you can easily update your monitor’s firmware.

    To update the firmware:

    VP3456a-2K FW Update.png
    1. Download and install the vDisplayManager application: https://color.viewsonic.com/support/software/.

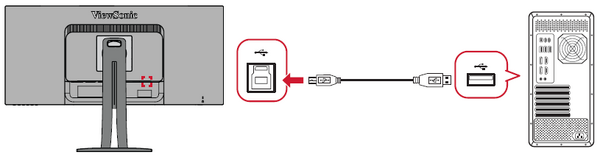

    2. Connect the USB Type B male cable (square with 2 cut corners) to the USB Type B port of your monitor. Then connect the other end of the cable to the USB port of the computer.
    3. Launch vDisplayManager. Select the Advanced tab in the side menu.
    4. Click Update to check for any updates to your monitor’s firmware.
    5. Wait until the update process is complete (if applicable).
    NOTE: Any interruptions during the firmware update process may permanently damage your monitor. Do not disconnect the USB cable or turn off your PC and monitor.
